Запчасти Case IH 2400 (12-22) - FOOT ACCELERATOR Power

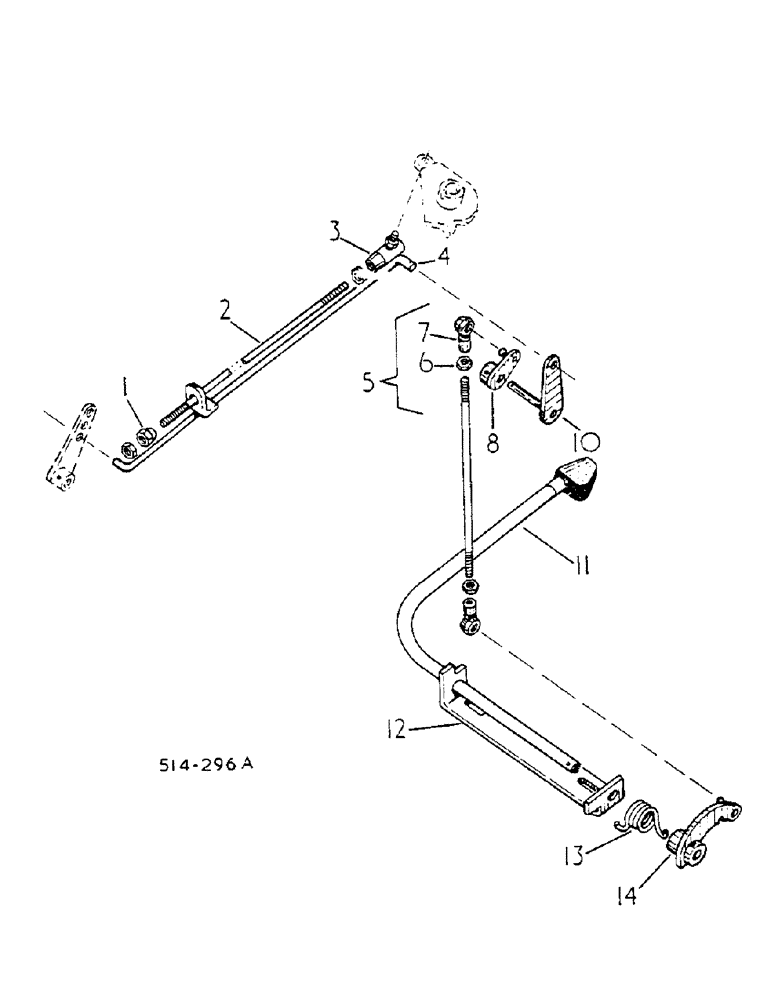

Схема запчастей Case IH 2400 - (12-22) - FOOT ACCELERATOR Power
11
5
3
12
13
4
1
14
2
6
8
10
7

Артикул

Название

Примечание

Количество

1

528776R1

NUT

FOOT ACCELERATOR PICK-UP ROD SWIVEL

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

2

528773R1

ROD

FOOT ACCELERATOR PICK-UP

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

3

109400

STEERING KNUCKLE

JOINT, 1/4-28 BALL

1шт.

3

19318R1

BALL JOINT

1/4-28

1шт.

3

531713R1

BALL JOINT

1/4-28, OPTIONAL

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

103319

LOCK WASHER,1/4"

1шт.

4

528767R1

ROD ASSY.

BELLCRANK

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

2шт.

5

3116196R91

ROD

ASSY, CONNECTING, MACHINES FITTED W/ISO MOUNTED CAB

1шт.

5

532106R1

ROD

ASSY, CONNECTING, MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

6

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

7

3068537R1

TRUNNION

END, CONNECTING ROD

2шт.

8

3118439R1

LEVER

ASSY, BELLCRANK, MACHINE FITTED W/ISO MOUNTED CAB

1шт.

8

532104R1

LEVER ASSY.

BELLCRANK INNER, MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

9

NOT APPLICABLE

1шт.

10

3116192R1

ARM

ASSY, BELLCRANK, MACHINE FITTED W/ISO MOUNTED CAB

1шт.

10

532100R1

ARM

ASSY, BELLCRANK

1шт.

754603R1

SPACER

MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

120394

WASHER,3/8", SAE

13/32 X 13/16 X .051

2шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

11

3116188R2

PEDAL

ASSY, FOOT ACCELERATOR, MACHINE FITTED W/ISO MOUNTED CAB

1шт.

11

532096R2

PEDAL ASSY.

FOOT ACCELERATOR, MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

12

3116190R1

SUPPORT

ASSY, FOOT ACCELERATOR

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

102214

WASHER

5/16 LOCK

2шт.

95-11034

WASHER,1/4"

5/16

2шт.

878986R1

SPACER,1/4" Pipe x 5/8"

MACHINE FITTED W/ISO MOUNTED CAB

2шт.

12

532093R4

SUPPORT ASSY.

FOOT ACCELERATOR PEDAL, MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

425-115

NUT,5/16"-24, G5

2шт.

13

532099R1

SPRING

FOOT ACCELERATOR PEDAL RETURN

1шт.

14

532102R1

LEVER ASSY.

BELLCRANK OUTER

1шт.

19363

SHIM

SPARE PART PIN, 5/32 X 1 MV COILEDG

1шт.

Выбрано товаров: 38
