Запчасти Case IH 2400 (12-18) - FUEL SHUT-OFF CONTROLS, C.A.V. INJECTION, BOSCH INJECTION Power

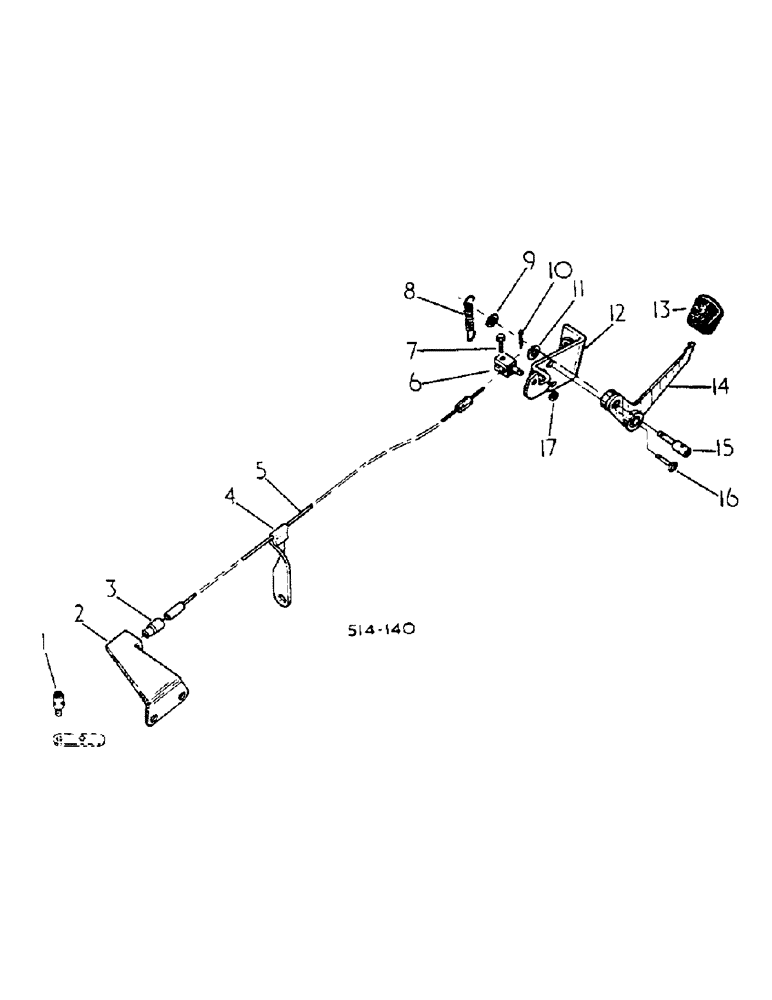

Схема запчастей Case IH 2400 - (12-18) - FUEL SHUT-OFF CONTROLS, C.A.V. INJECTION, BOSCH INJECTION Power
1
17
14
3
5
6
13
15
7
8
4
11
9
12
10
2
16

Артикул

Название

Примечание

Количество

1

396388R1

PIVOT

FUEL SHUTOFF LEVER SWIVEL

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 X 3/8 SLT FIL HD

1шт.

446179

WASHER,#12

1/4 X 1/2 X .036

1шт.

2

3112808R1

BRACKET

FUEL SHUTOFF CABLE SUPPORT

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

BOLT, 1/4-28 UNF X .50

2шт.

103319

LOCK WASHER,1/4"

CAV Injection

2шт.

3

677516R1

BUSHING

FUEL SHUTOFF CONTROL CABLE

1шт.

4

531337R1

CLIP

CLIP, FUEL SHUTOFF CONTROL CABLE

1шт.

5

529000R1

CABLE

FUEL SHUTOFF CONTROL, BOSCH INJECTION CR PUMP

1шт.

5

3112806R1

CABLE

FUEL SHUTOFF CONTROL, CAV INJECTION

1шт.

6

534621R1

CLAMP

CABLE SWIVEL, USED W/CABLE 3112806R1

1шт.

6

536852R1

CLAMP

CABLE SWIVEL, USED W/CABLE 529000R1

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

453284

NUT,#10-32

10/32 C-Z HEX MACH SCREW

1шт.

120217

LOCK WASHER,#10

1шт.

7

454065

SCREW,Hex Hd, #10-32 x 3/4"

10/32 X 3/4 C-Z HEX HD MACH

1шт.

8

528998R2

SPRING

FUEL SHUTOFF CONTROL CABLE

1шт.

9

528999R1

CIRCLIP

RETAINER, FUEL SHUTOFF CONTROL CABLE SPRING, OPTIONAL W/531714R1

1шт.

9

531714R1

CIRCLIP

RETAINER, FUEL SHUTOFF CONTROL CABLE SPRING, OPTIONAL W/528999R1

1шт.

10

648002

KNIFE

1/8" x 3/4"

1шт.

11

469668R1

WASHER

3/8 X 13/32 X .060 C-Z

1шт.

12

528992R1

BRACKET

ASSY, FUEL SHUTOFF LEVER

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

13

528996R2

KNOB

FUEL SHUT-OFF CONTROL CABLE

1шт.

14

531335R1

ARM ASSY.

FUEL SHUTOFF CONTROL

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

SPARE PART 8/32 X 5/8 C-Z SLT FIL -HD

1шт.

15

528997R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, FUEL SHUTOFF CONTROL CABLE

1шт.

16

23369R1

HEADED PIN,3/8" x 7/8"

1шт.

17

446178R1

WASHER, 1/4 X 1/2 X .036

1шт.

Выбрано товаров: 30
