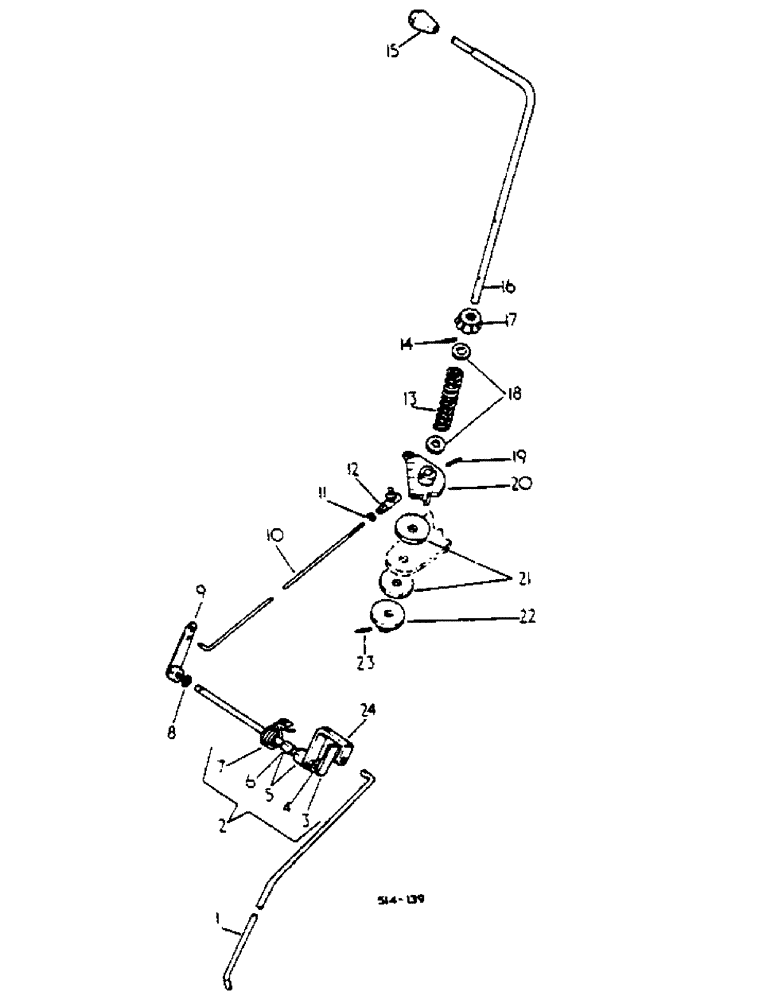

Запчасти Case IH 2400 (12-16) - GOVERNOR CONTROLS, C.A.V. INJECTION Power

1

3112794R1

SPARE PART FRONT GOVERNOR CONTROL

1шт.

432-48

COTTER PIN,1/16" x 1/2"

11/16 X 1/2

2шт.

2

3112795R1

ARM, CPTE CROSSOVER

1шт.

3

3112796R1

ARM

ASSY, CROSSOVER GOVERNOR SHAFT

1шт.

4

3112804R1

FRICTION WASHER

1шт.

5

3112799R1

LEVER, CPTE GOVERNOR CONTROL

1шт.

6

3136060R1

BUSHING

1шт.

7

3112803R1

SPRING

LOST MOTION

1шт.

8

Q1597

WASHER

13/32 X 3/4 X 16 GA PLAIN, OPTIONAL W/20285H

1шт.

8

20285H

WASHER

13/32 X 3/4 X 16 GA PLAIN, OPTIONAL W/Q1597

1шт.

9

539572R1

LEVER

ASSY, IDLER ARM

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

10

528324R1

ROD

REAR GOVERNOR CONTROL

1шт.

432-48

COTTER PIN,1/16" x 1/2"

1/16 X 1/2

1шт.

11

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

12

109400

STEERING KNUCKLE

JOINT, 1/4-28 BALL, OPTIONAL W/19318R1 AND 531713R1

1шт.

12

19318R1

BALL JOINT

1/4-28, OPTIONAL W/109400 AND 531713R1

1шт.

12

531713R1

BALL JOINT

1/4-28, OPTIONAL W/19318R1 AND 109400

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

103319

LOCK WASHER,1/4"

1шт.

13

401663R1

SPRING

GOVERNOR CONTROL PRESSURE

1шт.

14

19368R1

PIN,5/32" x 1", Coiled

1шт.

15

402584R1

BUTTON

KNOB, GOVERNOR CONTROL HANDLE

1шт.

16

528288R1

ROD

SPARE PART GOVERNOR CONTROL HANDLE

1шт.

17

528290R1

GUIDE RING

COLLAR, GOVERNOR CONTROL HANDLE

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 5/8 HEX SOC HD F PT

1шт.

18

NLS

NO LONGER SERVICED

17/32 X 1-1/16 X .074

2шт.

19

19368R1

PIN,5/32" x 1", Coiled

1шт.

20

528291R2

ARM

ASSY, GOVERNOR CONTROL ROD

1шт.

21

394716R1

DISC

GOVERNOR CONTROL FRICTION

2шт.

22

528294R1

PLATE ASSY.

GOVERNOR CONTROL FRICTION

1шт.

23

19368R1

PIN,5/32" x 1", Coiled

1шт.

24

3112800R1

LEVER

ASSY, GOVERNOR CONTROL

1шт.
