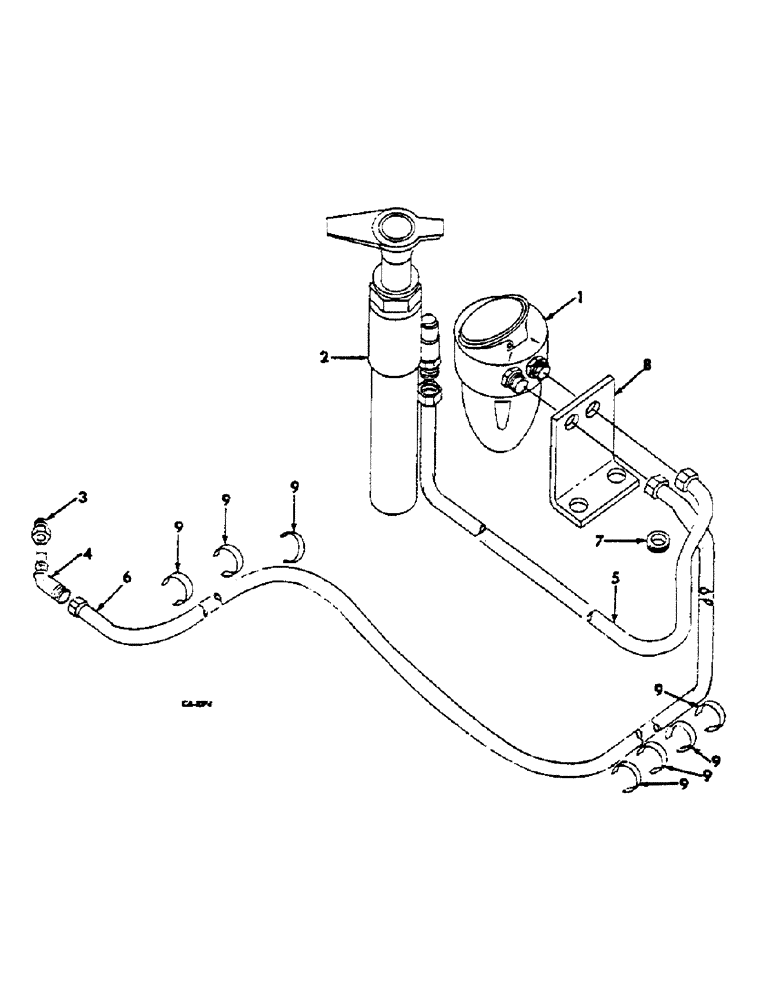

Запчасти Case IH 2400 (12-11) - COLD START, EXPORT TRACTORS Power

1

529969R1

SPARE PART ETHER

1шт.

3116509R91

BOWL

RESERVOIR ASSY

1шт.

3116511R1

SLEEVE

TUBE

1шт.

3116512R1

NUT

TUBE

1шт.

2

529970R1

PUMP

ASSY, ETHER RESERVOIR

1шт.

3116506R91

SPARE PART ASSY

1шт.

3116507R91

SPARE PART SET, FILTER AND PISTON SEALS

1шт.

3116508R91

SPARE PART ASSY

1шт.

3116510R91

SPARE PART PISTON ASSY

1шт.

3116511R1

SLEEVE

TUBE

1шт.

3116512R1

NUT

TUBE

1шт.

3

529971R1

SPARE PART INJECTION NOZZLE

1шт.

3072238R1

COPPER WASHER

INJECTION NOZZLE ADAPTOR

1шт.

4

529972R1

NOZZLE CAP

INJECTION

1шт.

3116511R1

SLEEVE

TUBE

1шт.

3116512R1

NUT

TUBE

1шт.

5

529973R1

SPARE PART ETHER PUMP TO RESERVOIR

1шт.

6

529974R2

TUBE

ETHER RESERVOIR TO NOZZLE

1шт.

7

529975R1

SPARE PART

1шт.

8

529976R1

SPARE PART ETHER RESERVOIR

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 X 9/16 HEX-HD CAP

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

9

894253H1

STRAP

CABLE

8шт.

533485R1

CONTAINER

START PILOT REFILL

1шт.
