(12-10) - THERMOSTART ATTACHMENT, BOSCH INJECTION, CR PUMP, 454/103499 UP, 2400/100321 UP

Запчасти Case IH 2400 (12-10) - THERMOSTART ATTACHMENT, BOSCH INJECTION, CR PUMP, 454/103499 UP, 2400/100321 UP Power

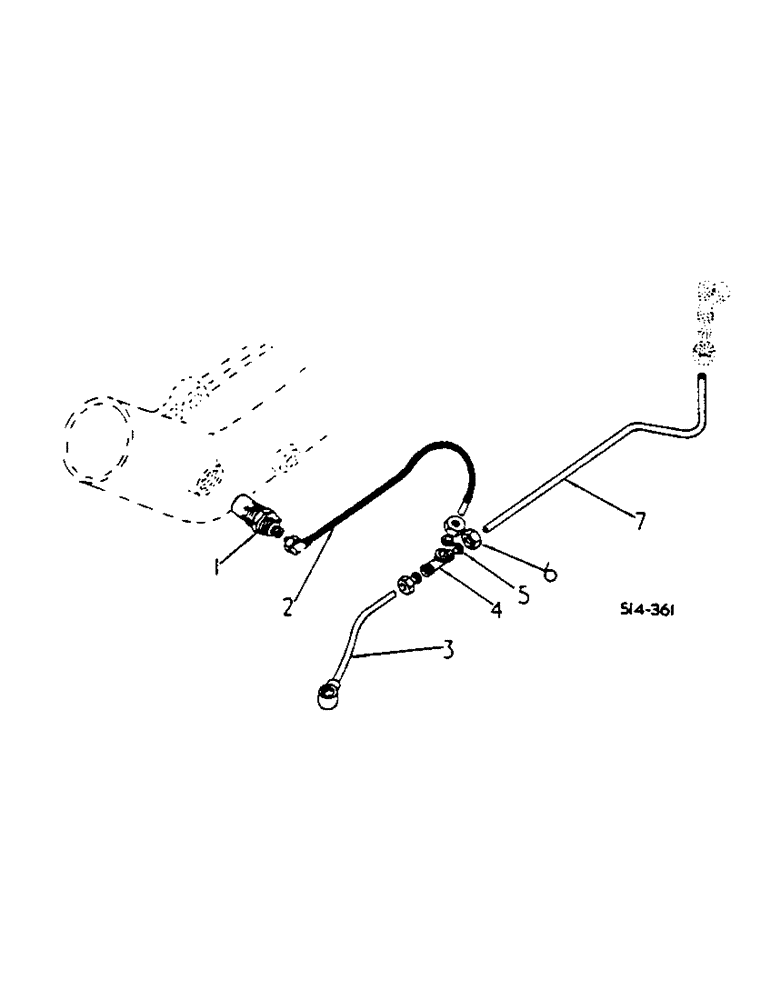

Схема запчастей Case IH 2400 - (12-10) - THERMOSTART ATTACHMENT, BOSCH INJECTION, CR PUMP, 454/103499 UP, 2400/100321 UP Power
3
5
4
6
2
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3118299R1

GLOW PLUG

ELEMENT, THERMOSTART - TYPE 357-11 -

1шт.

2

3118619R1

PIPE

ASSY, ELEMENT FEED

1шт.

3

3118620R1

PIPE ASSY.

1шт.

4

3056138R1

TEE,M8 Tube

UNION

1шт.

5

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

3шт.

6

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

3шт.

7

3118621R1

PIPE

SPARE PART OVERFLOW REAR

1шт.

Выбрано товаров: 7
