Запчасти Case IH 2400 (04-02) - BRAKES, UP TO 454/007997, UP TO 2400/000691 (5.1) - BRAKES

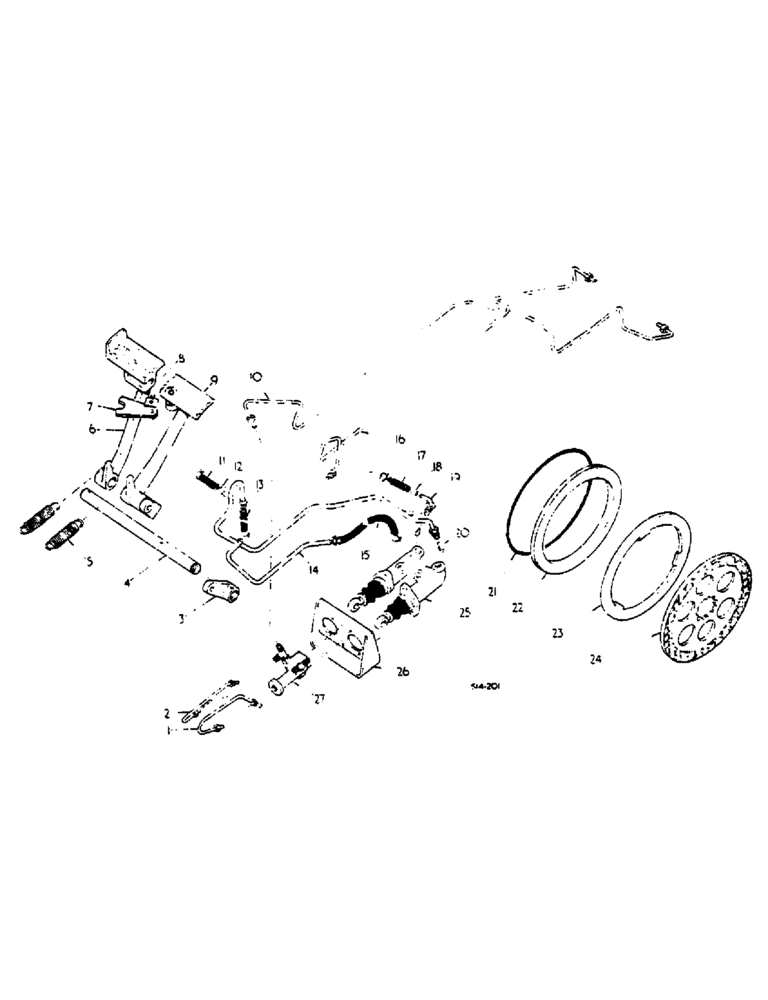

Схема запчастей Case IH 2400 - (04-02) - BRAKES, UP TO 454/007997, UP TO 2400/000691 (5.1) - BRAKES
10
20
13
17
16
25
15
8
14
24
11
12
9
23
21
5
22
18
1
19
7
4
26
2
27
3
6

Артикул

Название

Примечание

Количество

1

530851R1

TUBE

ASSY, EQUALIZER LH

1шт.

2

530852R1

TUBE

EQUALIZER RH

1шт.

3

529858R1

ARM

SPARE PART RH BRAKE PEDAL

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

4

527320R1

SHAFT

PEDAL SUPPORT

1шт.

5

539556R1

SPRING

BRAKE PEDAL RETURN

2шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

2шт.

103321

LOCK WASHER,3/8"

2шт.

103026

NUT,3/8"-24, G5

2шт.

6

399741R2

PEDAL

RH BRAKE

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

7

43751DB

LATCH, PEDALS

PLATE, BRAKE LOCK

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 X 1-1/4 SMALL B-HD, SOLID

1шт.

8

51293D

SPRING

BRAKE PEDAL LOCK TENSION

1шт.

9

537095R11

PEDAL ASSY.

LH BRAKE

1шт.

443570

LUBE NIPPLE,65 Degree, 1/4" NPT x .77" lg, Drive

FITTING, 1/465 DEG ANGLE DRIVE TYPE

1шт.

10

529603R1

PIPE FITTING

TUBE ASSY, BRAKE LH

1шт.

11

530127R1

HOSE,0.31" ID x 1.70"

Brake Reservoir Inlet

1шт.

On orders for tubes 530126R1, 531529R1, 530128R1 or hoses 530127R1, 537612R1 or 530130R1, furnish all the following: 2 tube 66367C1, 2 strap 289862C1, 2 hose 66368C1, 4 clamp 534421R1, 1 tube 66369C1, 1 screw 172292, 1 hose 66372C1, 1 clamp 66379C1, 1 screw 180034, 1 spacer 61401V, 1 washer 120380, 1 nut 120375 and 1 battery tray moulding edge 3113841R1

1шт.

537842R2

SCREEN AND ORIFICE ASSY

1шт.

12

53012

TUBE ASSY, BRAKE KEEP FULL RESERVOIR

1шт.

On orders for tubes 530126R1, 531529R1, 530128R1 or hoses 530127R1, 537612R1 or 530130R1, furnish all the following: 2 tube 66367C1, 2 strap 289862C1, 2 hose 66368C1, 4 clamp 534421R1, 1 tube 66369C1, 1 screw 172292, 1 hose 66372C1, 1 clamp 66379C1, 1 screw 180034, 1 spacer 61401V, 1 washer 120380, 1 nut 120375 and 1 battery tray moulding edge 3113841R1

1шт.

537518R1

SCREEN

ORIFICE ASSY

1шт.

13

537612R1

HOSE

BRAKE RESERVOIR OVERFLOW

1шт.

On orders for tubes 530126R1, 531529R1, 530128R1 or hoses 530127R1, 537612R1 or 530130R1, furnish all the following: 2 tube 66367C1, 2 strap 289862C1, 2 hose 66368C1, 4 clamp 534421R1, 1 tube 66369C1, 1 screw 172292, 1 hose 66372C1, 1 clamp 66379C1, 1 screw 180034, 1 spacer 61401V, 1 washer 120380, 1 nut 120375 and 1 battery tray moulding edge 3113841R1

1шт.

14

530128R1

SPARE PART BRAKE RESERVOIR DUMP

1шт.

On orders for tubes 530126R1, 531529R1, 530128R1 or hoses 530127R1, 537612R1 or 530130R1, furnish all the following: 2 tube 66367C1, 2 strap 289862C1, 2 hose 66368C1, 4 clamp 534421R1, 1 tube 66369C1, 1 screw 172292, 1 hose 66372C1, 1 clamp 66379C1, 1 screw 180034, 1 spacer 61401V, 1 washer 120380, 1 nut 120375 and 1 battery tray moulding edge 3113841R1

1шт.

15

530130R1

SPARE PART BRAKE RESERVOIR DUMP

1шт.

On orders for tubes 530126R1, 531529R1, 530128R1 or hoses 530127R1, 537612R1 or 530130R1, furnish all the following: 2 tube 66367C1, 2 strap 289862C1, 2 hose 66368C1, 4 clamp 534421R1, 1 tube 66369C1, 1 screw 172292, 1 hose 66372C1, 1 clamp 66379C1, 1 screw 180034, 1 spacer 61401V, 1 washer 120380, 1 nut 120375 and 1 battery tray moulding edge 3113841R1

1шт.

16

529604R1

TUBE

ASSY, BRAKE RH

1шт.

17

530127R1

HOSE,0.31" ID x 1.70"

Brake Reservoir Inlet

1шт.

On orders for tubes 530126R1, 531529R1, 530128R1 or hoses 530127R1, 537612R1 or 530130R1, furnish all the following: 2 tube 66367C1, 2 strap 289862C1, 2 hose 66368C1, 4 clamp 534421R1, 1 tube 66369C1, 1 screw 172292, 1 hose 66372C1, 1 clamp 66379C1, 1 screw 180034, 1 spacer 61401V, 1 washer 120380, 1 nut 120375 and 1 battery tray moulding edge 3113841R1

1шт.

18

534421R1

HOSE CLAMP

WORM

8шт.

18

279025R1

HOSE CLAMP

NO 6 TYPE

8шт.

18

3112550R1

CLAMP

SCREW TYPE HOSE

8шт.

18

20894R1

NO LONGER SERVICED

CLAMP, 5/8 TYPE D SCREW TYPE HOSE -OPTIONAL -

8шт.

19

531529R1

SPARE PART ASSY, BRAKE RESERVOIR RH

1шт.

On orders for tubes 530126R1, 531529R1, 530128R1 or hoses 530127R1, 537612R1 or 530130R1, furnish all the following: 2 tube 66367C1, 2 strap 289862C1, 2 hose 66368C1, 4 clamp 534421R1, 1 tube 66369C1, 1 screw 172292, 1 hose 66372C1, 1 clamp 66379C1, 1 screw 180034, 1 spacer 61401V, 1 washer 120380, 1 nut 120375 and 1 battery tray moulding edge 3113841R1

1шт.

20

537849R2

SCREEN

ORIFICE ASSY

1шт.

21

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 X 10-1/4 X 1/8, BRAKE PISTON

2шт.

22

114621C1

PISTON

BRAKE

2шт.

23

399736R2

RING

BRAKE

2шт.

24

399734R1

NO LONGER SERVICED

DISC, BRAKE CENTER, ORDER DISC 114622C1 W/PISTON 114621C1

2шт.

24

114622C1

BRAKE DISC

BRAKE CENTER

2шт.

25

527542R92

CYLINDER

ASSY, BRAKE MASTER

2шт.

25

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

3125824R1

SEAL KIT

2шт.

26

529582R1

BRACKET

ASSY, BRAKE CYL MOUNTING, SYNCHROMESH DRIVE TRACTORS, 454/004737 up and 2400/000555 UP

1шт.

INCLUDING 2538, 3215, 3326, 3432, 3450, 3451, 3452, 3453, 3552, 3576, 3589, 3590, 3591, 3593, 3703, 3711, 3738, 3799, 4053, 4072, 4172, 4437, 4493, 4591 TO 4611, 4613 TO 4622, 4653 TO 4633, 4667 TO 4670, 4685 TO 4709, 4714, 4715, 4718 TO 4721, 4723 AND 4735

1шт.

26

530927R1

SPARE PART ASSY, BRAKE CYL MOUNTING, SYNCHROMESH DRIVE TRACTORS, UP TO 454/004736 AND UP TO 2400/000554

1шт.

EXCLUDING 2538, 3215, 3326, 3432, 3450, 3451, 3452, 3453, 3552, 3576, 3589, 3590, 3591, 3593, 3703, 3711, 3738, 3799, 4053, 4072, 4172, 4437, 4493, 4591 TO 4611, 4613 TO 4622, 4653 TO 4663, 4667 TO 4670, 4685 TO 4709, 4714, 4715, 4718 TO 4721, 4723 AND 4735

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

26

527545R1

BRACKET

ASSY, BRAKE CYL MOUNTING, HYDROSTATIC DRIVE TRACTORS

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 HEX HD CAP

2шт.

103321

LOCK WASHER,3/8"

2шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

425-115

NUT,5/16"-24, G5

4шт.

27

530374R92

VALVE

ASSY, BRAKE EQUALIZER

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

384891R1

CLAMP

HYD TUBE

1шт.

557265R1

WASHER

11/32 X 1 X 11 GA

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

68434C1

PACKAGE

EQUALIZER VALVE O-RING AND SEAL SERVICE

1шт.

Выбрано товаров: 71
