Запчасти Case IH 2400 (09-18) - THREE POSITION DRAWBAR (12) - FRAME

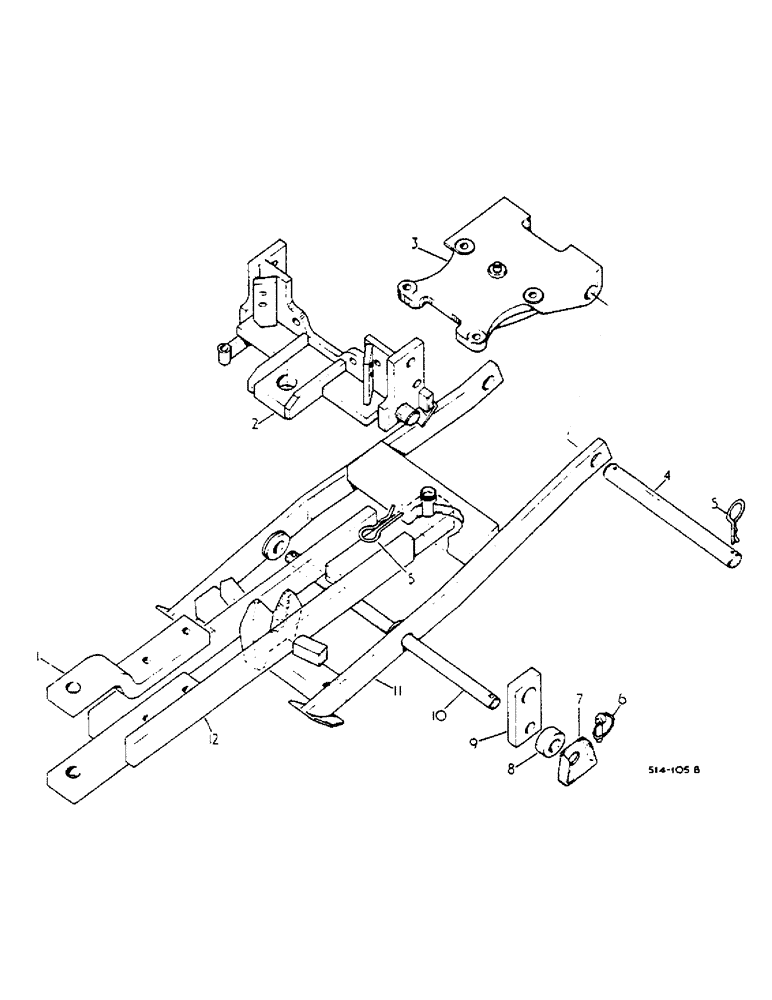

Схема запчастей Case IH 2400 - (09-18) - THREE POSITION DRAWBAR (12) - FRAME
5
8
10
6
9
4
7
11
2
1
5
12
3

Артикул

Название

Примечание

Количество

ATTACHMENT, THREE POSITION DRAWBAR, FOR TRACTORS NOT EQUIPPED W/AUTOMATIC HITCH

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2-3/4 X 5/8 UNC HEX HD CAP

2шт.

102639

NUT,5/8"-11, G5

454/100620 Up, 2400/100068 Up

2шт.

INCLUDING 454/100413-100434-100581-100587-100593-100600-100616-100617-100618-133620

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, HEX HD CAP 5/8-11 X 3-3/4, Course Threads

2шт.

102639

NUT,5/8"-11, G5

Up to 454/100619, Up to 2400/100067

2шт.

2

533867R2

SUPPORT

ASSY, DRAWBAR

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

HEX HD CAP 5/8-11 X 1-1/2

6шт.

3

533865R1

SUPPORT

SPARE PART ASSY, DRAWBAR PIVOT

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

HEX HD CAP 1/2-13 X 1-5/8

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HEX HD CAP 1/2-13 X 2-1/2

2шт.

103323

LOCK WASHER,1/2"

4шт.

4

529541R1

SHAFT

SHAFT, DRAWBAR PIVOT SUPPORT CROSS

1шт.

5

700387R1

CLIP, SPRING

DRAWBAR PIVOT CROSS SHAFT

3шт.

6

533189R1

PIN

ASSY, COTTER

2шт.

7

404787R1

SHIELD

LINCH PIN

2шт.

Q123

WASHER

1-1/32 X 2-1/2 X 26 GA PLAIN

2шт.

8

3111986R1

SPACER

DRAWBAR FRAME SUPPORT

2шт.

9

3111985R2

BAR

DRAWBAR FRAME SUPPORT

2шт.

10

533908R1

SHAFT

LIFT ROD CROSS

1шт.

11

533884R2

SPARE PART

HOOK ASSY, TRAILER

1шт.

533883R1

BUSHING

HOOK FRAME, USED W/HOOK 533884R1, UP TO 454/100619, UP TO 2400/100067

2шт.

ORDER HOOK ASSY. 3116495R1 W/HITCH ASSY. 3116498R1 AND 1 COTTER PIN 700387R1

1шт.

11

3116495R1

HOOK

ASSY., 454/100620 UP, 2400/100068 UP

1шт.

INCLUDING 454/100413-100434-100581-100587-100593-100600-100616-100617-100618-133620

1шт.

12

3116501R1

DRAWBAR

HITCH ASSY, FOR SERVICE ONLY

1шт.

12

533919R1

BAR

HITCH ASSY, UP TO/008077

1шт.

ORDER HOOK ASSY. 3116495R1 W/HITCH ASSY. 3116501R1 AND 1 COTTER PIN 700387R1

1шт.

12

533915R1

SPARE PART

HITCH ASSY, 008078 UP TO 100619

1шт.

ORDER HOOK ASSY. 3116495R1 W/HITCH ASSY. 3116498R1 AND 1 COTTER PIN 700387R1

1шт.

12

3116498R1

BAR

HITCH ASSY, 454/100620 UP, 2400/100068 UP

1шт.

INCLUDING 454/100413-100434-100581-100587-100593-100600-100616-100617-100618-133620

1шт.

3064334R1

ARM

SPARE PART DRAWBAR CLEVIS, UP TO 454/100619, UP TO 2400/100067

1шт.

Выбрано товаров: 35
