Запчасти Case IH 2400 (09-15) - SWINGING DRAWBAR, UP TO 106585 (12) - FRAME

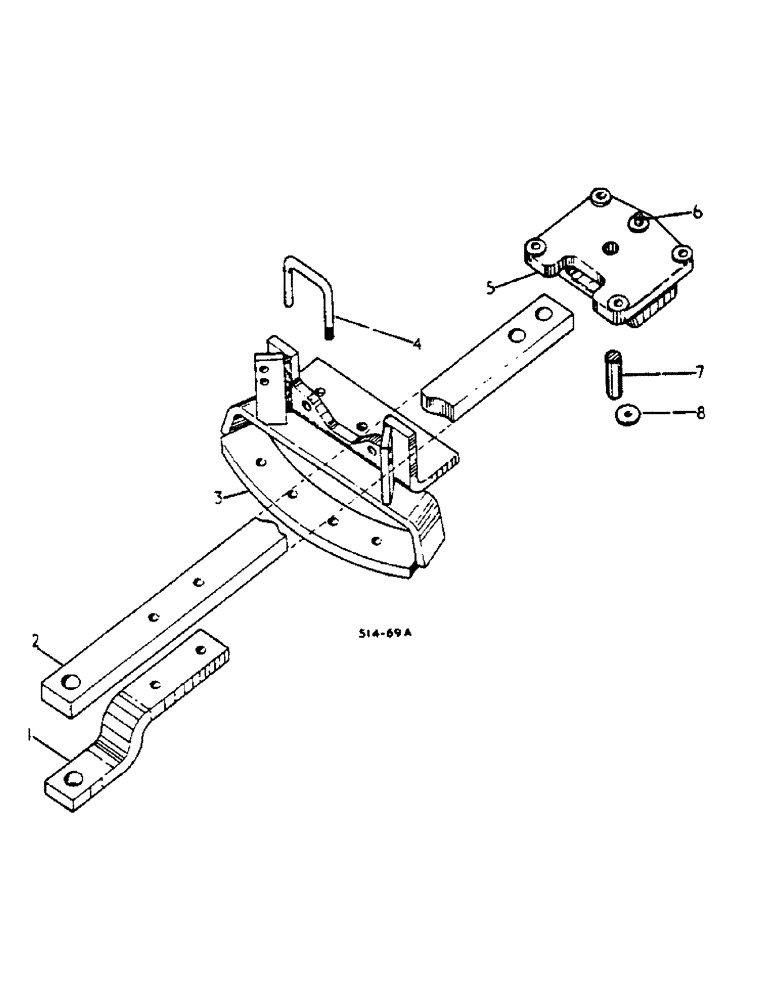

Схема запчастей Case IH 2400 - (09-15) - SWINGING DRAWBAR, UP TO 106585 (12) - FRAME
4
7
3
8
1
6
5
2

Артикул

Название

Примечание

Количество

3116248R91

ATTACHMENT, SWINGING DRAWBAR, 454/008078 UP, 2400/000692 UP, CONSISTS OF: REF. 1, 2 P/N 3116100R1, 3-8

1шт.

TRACTORS NOT EQUIPPED W/THREE POINT HITCH ATTACHMENT OR AUTOMATIC HITCH ATTACHMENT OR FOR TRACTORS EQUIPPED W/THREE POINT HITCH ATTACHMENT W/OUTSIDE CHECK CHAINS

1шт.

527812R91

ATTACHMENT, SWINGING DRAWBAR, UP TO 454/008077, UP TO 2400/000691, CONSISTS OF: REF. 1, 2 P/N 406466R1, 3-8

1шт.

TRACTORS NOT EQUIPPED W/THREE POINT HITCH ATTACHMENT OR AUTOMATIC HITCH ATTACHMENT OR FOR TRACTORS EQUIPPED W/THREE POINT HITCH ATTACHMENT W/OUTSIDE CHECK CHAINS

1шт.

3116250R91

ATTACHMENT, SWINGING DRAWBAR, 454/008078 UP, 2400/000692 UP, CONSISTS OF: REF. 1, 2 P/N 3116100R1, 4-8

1шт.

TRACTORS EQUIPPED W/THREE POINT HITCH ATTACHMENT W/INSIDE CHAINS AND NOT EQUIPPED W/AUTOMATIC HITCH ATTACHMENT

1шт.

527814R91

DRAWBAR

ATTACHMENT, SWINGING DRAWBAR, UP TO 454/008077, UP TO 2400/000691, CONSISTS OF: REF. 1, 2 P/N 406466R1, 4-8

1шт.

TRACTORS EQUIPPED W/THREE POINT HITCH ATTACHMENT W/INSIDE CHAINS AND NOT EQUIPPED W/AUTOMATIC HITCH ATTACHMENT

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 X 3 HEX HD CAP

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

406466R1

SPARE PART HITCH, SWINGING

1шт.

2

3116100R1

HITCH

SWINGING

1шт.

3

403029R91

SUPPORT

ASSY, SWINGING DRAWBAR

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 HEX HD

5шт.

4

406470R1

AXLE PIN

DRAWBAR STOP

1шт.

19798R1

LOCK NUT,9/16"-12, GB

W/NYLON INSERT 9/16-12 HEX, OPTIONAL W/530408R1

1шт.

530408R1

NUT

W/NYLON INSERT 9/16-12 HEX, OPTIONAL W/19798R1

1шт.

5

406468R11

SUPPORT ASSY.

DRAWBAR PIVOT

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2-13 X 1-5/8 HEX HD CAP

4шт.

103323

LOCK WASHER,1/2"

4шт.

6

19846R1

DOWEL,1/2" x 1 1/4"

PIN

1шт.

7

406469R1

PIN

DRAWBAR STOP

1шт.

8

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, DRAWBAR PIN LOCK

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

Выбрано товаров: 26
