Запчасти Case IH 2400 (09-06) - THREE POINT HITCH, LOWER LINKS, WITH INSIDE CHECK CHAINS (12) - FRAME

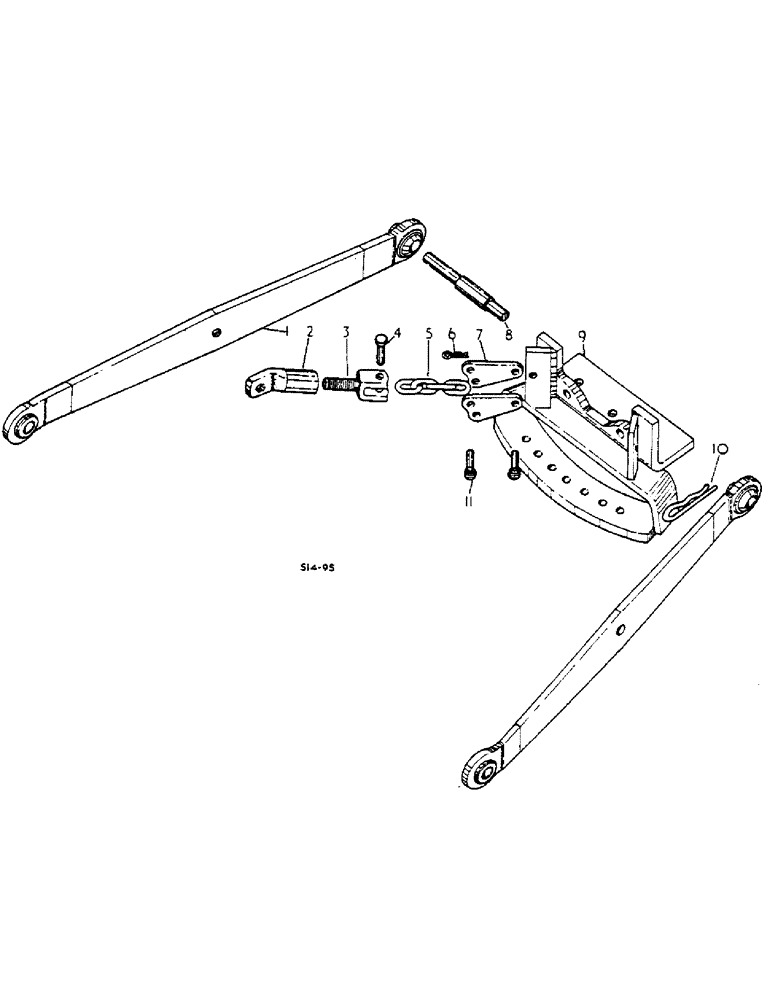

Схема запчастей Case IH 2400 - (09-06) - THREE POINT HITCH, LOWER LINKS, WITH INSIDE CHECK CHAINS (12) - FRAME
5
4
2
9
6
7
10
8
1
11
3

№

Артикул

Название

Примечание

Количество

1

402648R1

LOWER LINK

ASSY

2шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

2

403034R1

BRACKET

LIMITER CHAIN REAP

2шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

3

527976R1

ADJUSTABLE CLEVIS

ASSY, LATERAL LIMITER

2шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

4

403031R1

PIN

LIMITER CHAIN

2шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

5

527974R1

CHAIN (AG)

LATERAL LIMITER

2шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

6

460047R1

CLIP, SPRING

PIN, QUICK ATTACHABLE COTTER

4шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

7

527975R1

PLATE

STRAP, CHAIN SHACKLE

4шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

8

402656R1

PIN

LOWER LINK

2шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

9

403029R91

SUPPORT

ASSY, SWINGING DRAWBAR

1шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 HEX HD CAP

5шт.

10

538406R1

COTTER PIN

PIN, QUICK ATTACHABLE COTTER

2шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

11

403031R1

PIN

CHAIN SHACKLE STRAP

4шт.

SERVICE PART FOR TRACTORS W/O AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.

SERVICE PART FOR TRACTORS W/AUTOMATIC HITCH & W/INSIDE CHECK CHAIN

1шт.
