Запчасти Case IH 2400 (09-02) - THREE POINT HITCH (12) - FRAME

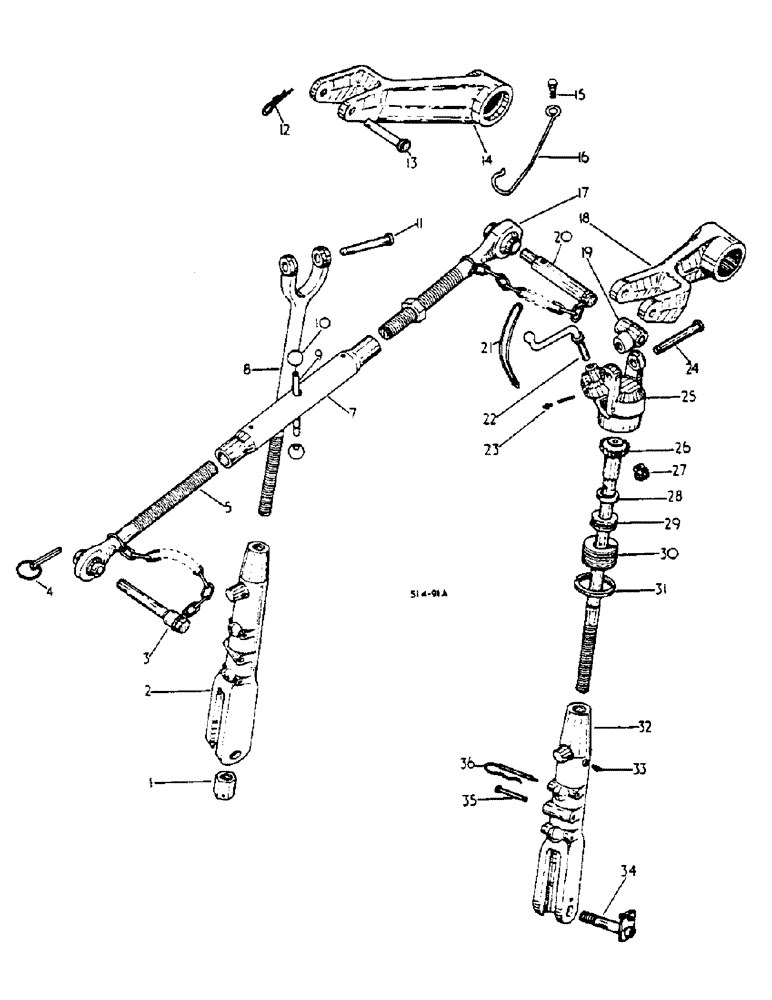

Схема запчастей Case IH 2400 - (09-02) - THREE POINT HITCH (12) - FRAME
17
32
26
15
9
35
1
5
34
27
7
20
8
19
29
33
10
36
22
23
24
3
16
28
11
4
14
21
2
18
25
31
12
30
13

Артикул

Название

Примечание

Количество

402632R91

SERVICE PARTS FOR TRACTORS WITHOUT AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN, CONSISTS OF: REF. 1-2 P/N 402635R3, 3-4, 7-26 P/N 527969R1, 27-32 P/N 402635R3, 33-36.

1шт.

1

527937R1

NUT

LIFT LINK

2шт.

2

402635R3

HOUSING

LIFT LINK YOKE

1шт.

2

402643R2

HOUSING

LIFT LINK YOKE

1шт.

575814R1

WASHER

25/32 X 2 X .120

2шт.

3

528081R1

PIN ASSY.

UPPER LINK, CAT I

1шт.

4

533189R1

PIN

ASSY, COTTER

1шт.

5

528000R1

SCREW

ASSY, RH THD UPPER, NOT APPLICABLE

1шт.

7

528002R1

TURNBUCKLE

1шт.

426899

NUT,Jam, 1"-8, G5

LOCK 1-1/8

1шт.

8

527967R1

CLEVIS,7/8" - 9

YOKE ASSY, LIFT LH LINK

1шт.

9

65958C1

ROD

TURNBUCKLE HANDLE

1шт.

9

527991R1

ROD

ASSY, TURNBUCKLE

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

PLAIN 17/32 X 1-1/16 X .074, ORDER ROD 65958C1 AND TWO KNOB 3048296R1

1шт.

898896R1

SPRING, TURNBUCKLE ROD

1шт.

10

3048296R1

BUTTON

KNOB, TURNBUCKLE ROD

1шт.

11

3044309R1

PIN

5/8 X 3-3/4

1шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

12

720631R1

LINCH PIN

ROCKSHAFT ARM COTTER

2шт.

13

3044309R1

PIN

ROCKSHAFT ARM HD

2шт.

14

402634R2

ROCKER ARM

ROCKSHAFT

1шт.

15

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

Shoulder

1шт.

16

530050R3

CLIP,ELECTRICAL

UPPER LINK STORAGE

1шт.

23042R1

WASHER

17/32 X 1 X .030 FLAT

1шт.

17

527998R1

SCREW

ASSY, LH THD UPPER

1шт.

18

402634R2

ROCKER ARM

ROCKSHAFT

1шт.

19

539247R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, LEVELING SCREW, 008684 UP

1шт.

19

704207R3

PIVOT

SWIVEL, LEVELING SCREW, UP TO 008683

2шт.

20

528084R11

PIN

ASSY, UPPER LINK, CAT II

1шт.

530049R1

CLIP, SPRING

PIN, QA COTTER

1шт.

21

3072424R1

SPRING

LEVELING SCREW HANDLE

1шт.

22

527943R1

CRANK

HANDLE, LEVELING SCREW

1шт.

23

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

1шт.

24

3069069R1

PIN

5/8 X 3-3/4 HARDENED

1шт.

25

3072422R2

HOUSING

LEVELING SCREW

1шт.

26

527969R1

NO LONGER SERVICED

SCREW, LIFT RH LINK LEVELING

1шт.

26

527951R2

SCREW

LIFT R.H. LINK LEVELING

1шт.

27

3069063R1

GEAR

PINION

1шт.

142506

LATCH

3/16" x 3/4", Type A

1шт.

28

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

LIFT RH LINK LEVELING SCREW BRG

1шт.

29

3044346R91

BALL BEARING

LEVELING SCREW, OPTIONAL W/3044347R91, 3044348R91 AND 3068049R91

1шт.

29

3044347R91

THRUST BEARING

LEVELING SCREW, OPTIONAL W/3044346R91, 3044348R91 AND 3068049R91

1шт.

29

3044348R91

BEARING, THRUST

LEVELING SCREW, OPTIONAL W/3044346R91, 3044347R91 AND 3068049R91

1шт.

29

3068049R91

BALL BEARING

LEVELING SCREW, OPTIONAL W/3044346R91, 3044347R91 AND 3044348R91

1шт.

30

3069064R1

BEARING

BEARING, LEVELING SCREW

1шт.

31

3069065R1

LOCK NUT

LEVELING SCREW BRG

1шт.

32

402635R3

HOUSING

LIFT LINK YOKE

1шт.

32

402643R2

HOUSING

LIFT LINK YOKE

1шт.

575814R1

WASHER

25/32 X 2 X .120

2шт.

33

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

34

527981R1

PIN ASSY.

REAR CHAIN BRACKET

2шт.

231-14012

LOCK NUT,3/4"-10, GB

3/4-10 HEX NYLON INSERT

2шт.

34

402645R91

PIN, LIFT LINK PIVOT

1шт.

35

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

FLOAT STOP

2шт.

107762

WASHER,3/32" x 5/8"

1шт.

36

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

ASSY, LIFT LINK LOCK

2шт.

533189R1

PIN

ASSY, LOWER LINK DRAWBAR

1шт.

528085R91

UPPER LINK

ASSY

1шт.

Выбрано товаров: 59
