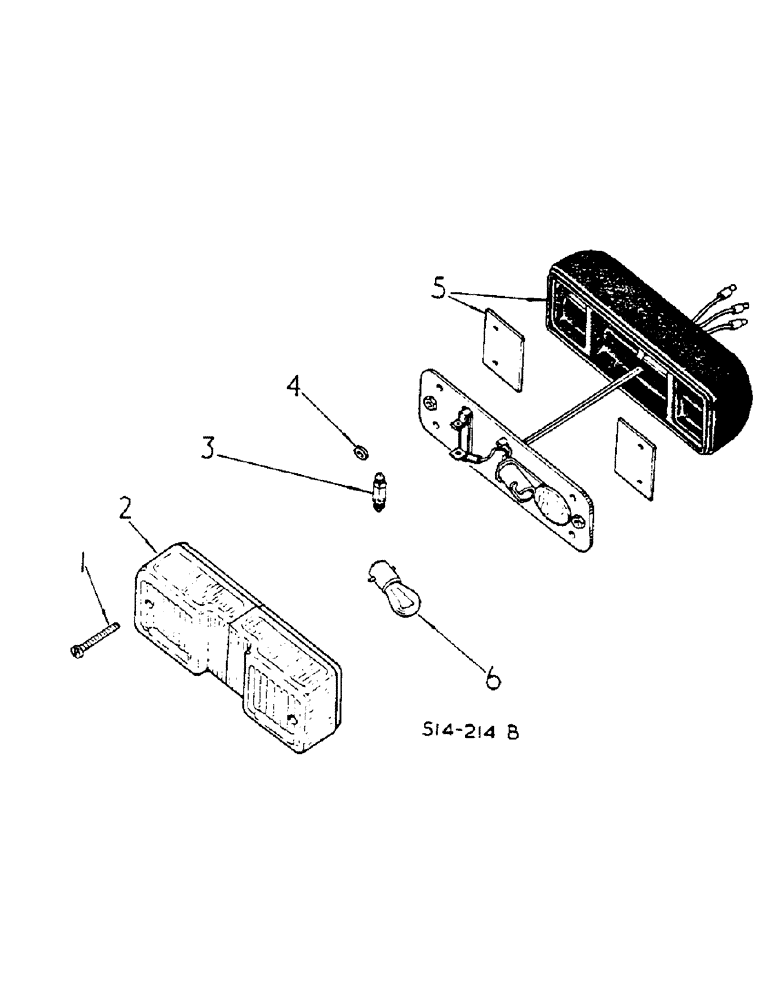

Запчасти Case IH 2400 (08-56) - FENDER WIRING SIDE AND FLASHER LIGHTS (06) - ELECTRICAL

3113666R92

LAMP

LIGHT, SIDE AND FLASHER L.H.

1шт.

3113667R92

LAMP BASE

LIGHT, SIDE AND FLASHER R.H.

1шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

NO. 10-16 X 1/2 S/TAP

8шт.

1

3112785R1

SCREW

4BA, X 1-1/2 ZINC PLTD

4шт.

2

3113395R1

LENS

CLEAR/AMBER

2шт.

3

3118024R1

LAMP

12V, 5W, FESTOON

1шт.

3

3113360R1

SPARE PART

LAMP, 14/7W BULB, AS REQUIRED

2шт.

4

3112786R1

WASHER

RING, RETAINING

4шт.

5

CUSHION, BLACK RUBBER L.H.

2шт.

5

CUSHION, BLACK RUBBER R.H.

2шт.

6

3025210R1

BULB

LAMP, 12V, 21W SCC

2шт.

3113658R91

HARNESS

FENDER L.H.

1шт.

3113659R91

HARNESS

FENDER R.H.

1шт.

708114R1

SPARE PART CABLE

2шт.

530043R1

GROMMET

FENDER HARNESS

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY L.H. FENDER

7шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY R.H. FENDER

9шт.
