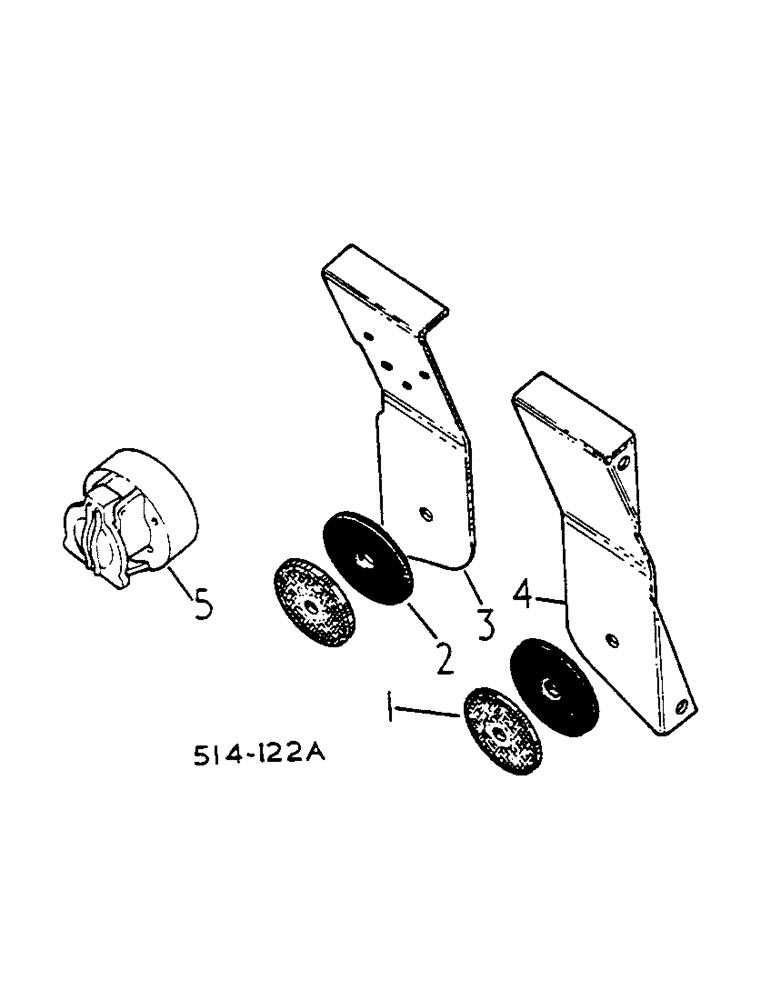

Запчасти Case IH 2400 (08-55) - REFLECTOR AND BRACKETS (06) - ELECTRICAL

1

3112360R91

REFLECTOR

2шт.

2

3112361

PAD, REFLECTOR

2шт.

171656

SCREW

SPARE PART 6-32 X 1/2 C-Z PAN HD TAP TYPE D

2шт.

3

3112362R1

BRACKET

REFLECTOR L.H.

1шт.

4

3112363R1

SPARE PART REFLECTOR R.H.

1шт.

5

3112294R91

SOCKET/RECEPTACLE

7 PIN

1шт.

112734

SPARE PART 7 PIN SOCKET 3/8" ID x 11/16" x .062"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

3шт.

437737

SCREW, NO. 10-24 X 1-1/4 PAN HD SLTD MACH

3шт.

120217

LOCK WASHER,#10

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-16 X 3/4 HEX HD CAP

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Hardware, Reflector bracket to fuel tank

2шт.
