Запчасти Case IH 2400 (08-42) - GENERATOR (06) - ELECTRICAL

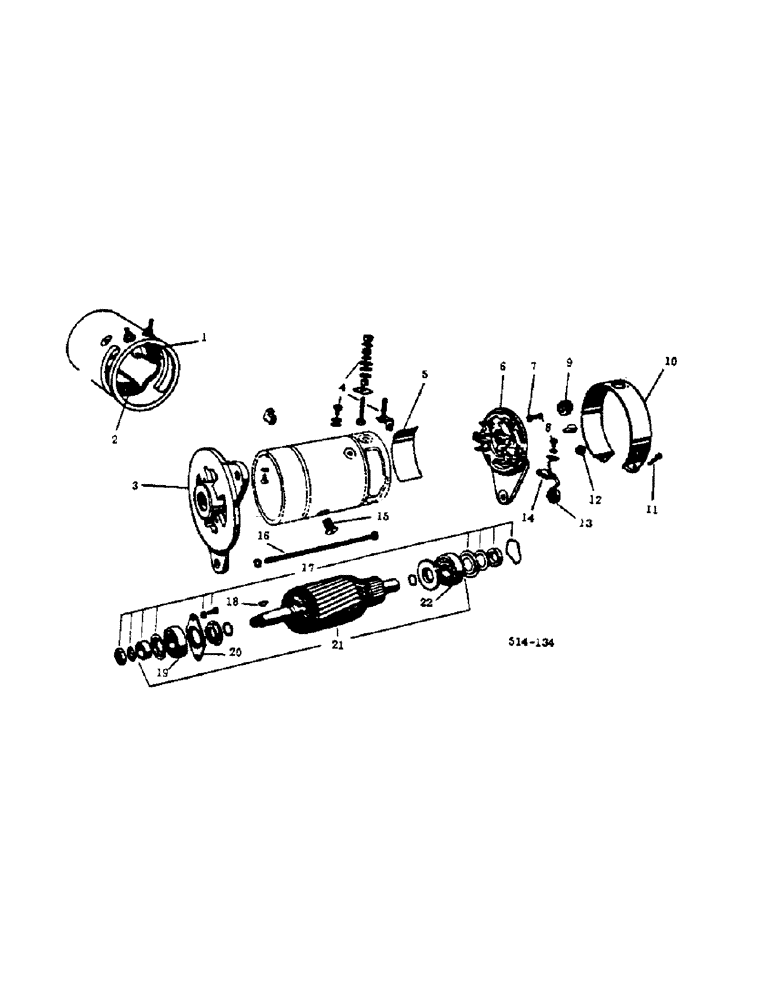

Схема запчастей Case IH 2400 - (08-42) - GENERATOR (06) - ELECTRICAL
11
8
1
20
6
2
17
16
7
13
21
18
10
9
12
3
14
4
5
19
22
15

Артикул

Название

Примечание

Количество

527684R91

GENERATOR

CPTE

1шт.

1

3132467R1

COIL

FIELD WINDING NO 2

1шт.

2

3132466R1

COIL

FIELD WINDING NO 1

1шт.

3

3113002R91

X

DRIVE ASSY, END

1шт.

4

3113003R91

TERMINAL CONNECTOR

KIT, SET OF PARTS

1шт.

5

847224R1

NO LONGER SERVICED

STRIP, INSULATING

1шт.

6

3132471R91

END

FRAME ASSY, COMMUTATOR END

1шт.

7

933994R1

LOCK WASHER,M4

2шт.

8

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

CARBON BRUSHES

2шт.

9

3132385R1

SPARE PART RUBBER

1шт.

10

3078335R1

SPARE PART BAND

1шт.

11

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

COVER BAND

1шт.

12

933993R1

NUT

COVER BAND

1шт.

13

3132473R1

SPRING

SPARE PART CARBON BRUSHES

2шт.

14

3132472R1

BRUSH, COMMUTATOR

BRUSH CARBON SET

1шт.

15

3078334R1

SCREW

COIL BODY RETAINER

2шт.

16

3132670R1

SCREW

2шт.

17

3132486R91

SET OF PARTS

SPARE PART KIT, FOR ARMATURE

1шт.

18

932682R1

KEY

WOODRUFF BELT PULLEY

1шт.

19

885710R91

BEARING

SPARE PART

1шт.

20

3132480R1

RETAINER

BEARING

1шт.

21

3113001R91

ARMATURE

ASSY

1шт.

22

3132495R91

BEARING

1шт.

3052809R1

PLUG

CAP, RUBBER

1шт.

Выбрано товаров: 24
