Запчасти Case IH 2400 (08-41) - NUMBER PLATE W/LIGHT AND POWER SOCKET, UP TO 454/100022 (06) - ELECTRICAL

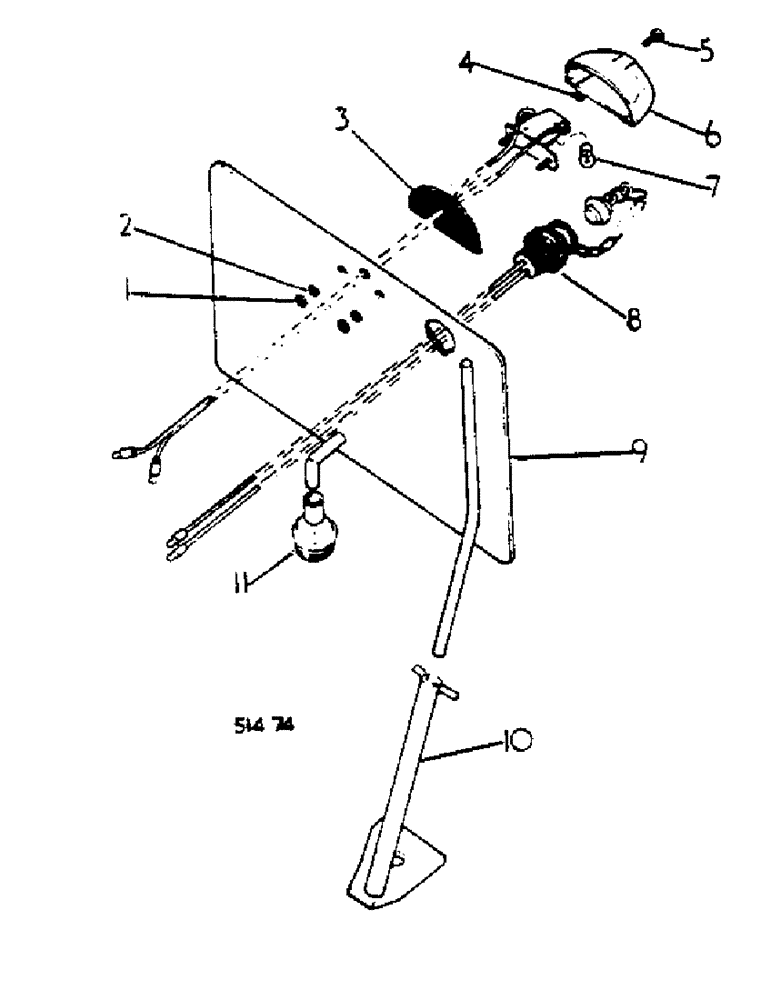

Схема запчастей Case IH 2400 - (08-41) - NUMBER PLATE W/LIGHT AND POWER SOCKET, UP TO 454/100022 (06) - ELECTRICAL
9
8
7
6
4
5
3
10
2
11
1

Артикул

Название

Примечание

Количество

527697R91

LIGHT ASSY.

NUMBER PLATE, CONSISTS OF: REF. 1 TO 7

1шт.

MACHINES W/PLATE AND LAMP, ORDER PLATE 3113438R91 W/BOLT 179837, WASHER 115549, LAMP 3113443R91. MACHINE W/PLATE ONLY, ORDER LAMP 3113438R91 W/BOLT 179837 AND WASHER 1155490.

1шт.

1

3062835R1

NUT

2BA BRASS/TIN PLATED

2шт.

2

121801

LOCK WASHER,Int Tooth, #10

2шт.

3

3112694R1

RUBBER PAD

1шт.

4

3112869R1

WASHER

1шт.

5

3025212R1

SCREW

FIXING, NO 6BA X 1/2

1шт.

6

3112693R91

BODY

CPTE W/WINDOW

1шт.

7

705757R91

LAMP

12V, 5W BULB, OPTIONAL W/751467R1

1шт.

7

751467R1

BULB

LAMP, 12V, 6W, OPTIONAL W/705757R91

1шт.

8

705271R91

SOCKET/RECEPTACLE

POWER

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 HEX HD CAP

2шт.

103319

LOCK WASHER,1/4"

2шт.

9

534329R2

SPARE PART ASSY, REGISTRATION NUMBER

1шт.

MACHINES W/PLATE AND LAMP, ORDER PLATE 3113438R91 W/BOLT 179837, WASHER 115549, LAMP 3113443R91. MACHINE W/PLATE ONLY, ORDER LAMP 3113438R91 W/BOLT 179837 AND WASHER 1155490.

1шт.

10

534332R1

SPARE PART ASSY, REGISTRATION NUMBER PLATE

1шт.

MACHINES W/PLATE AND LAMP, ORDER PLATE 3113438R91 W/BOLT 179837, WASHER 115549, LAMP 3113443R91. MACHINE W/PLATE ONLY, ORDER LAMP 3113438R91 W/BOLT 179837 AND WASHER 1155490.

1шт.

11

537147R1

SUPPORT

PLUG ASSY, REGISTRATION NUMBER PLATE

1шт.

Выбрано товаров: 18
