(08-40) - REGISTRATION NUMBER PLATE AND LIGHT, 454/100023 UP, 2400/100001 UP

Запчасти Case IH 2400 (08-40) - REGISTRATION NUMBER PLATE AND LIGHT, 454/100023 UP, 2400/100001 UP (06) - ELECTRICAL

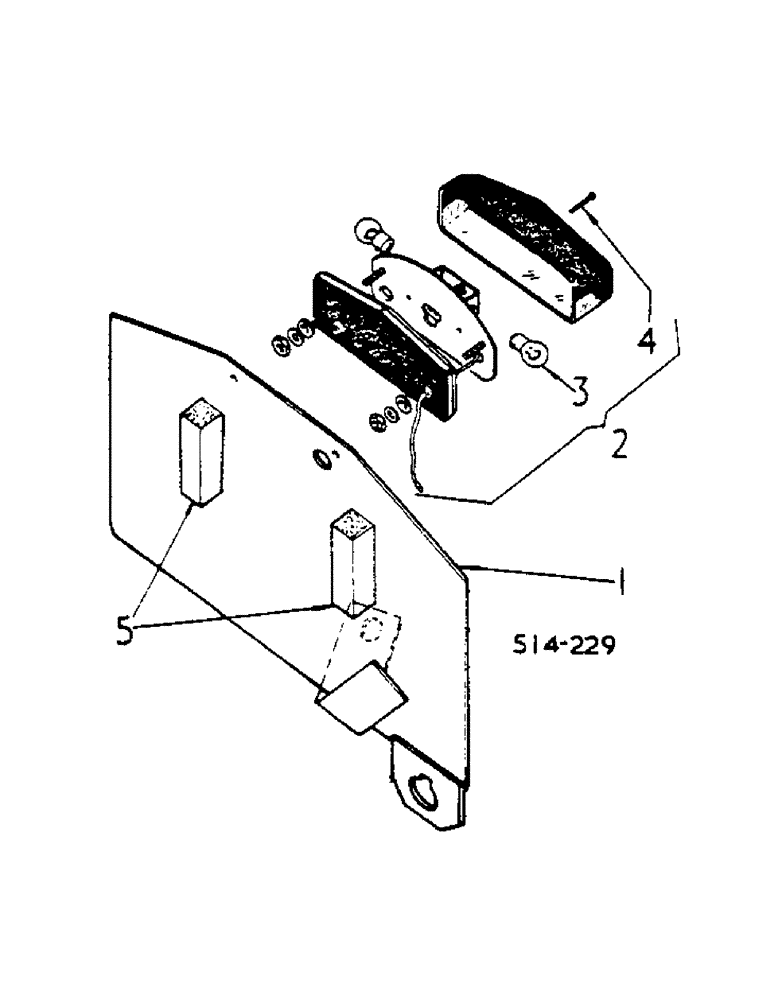

Схема запчастей Case IH 2400 - (08-40) - REGISTRATION NUMBER PLATE AND LIGHT, 454/100023 UP, 2400/100001 UP (06) - ELECTRICAL
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3113433R91

PLATE ASSY, REGISTRATION NUMBER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

1шт.

2

3113443R91

LIGHT ASSY.

REGISTRATION NUMBER PLATE, CONSISTS OF: REF. 3 AND 4

1шт.

3

705757R91

LAMP

12V, 5W, MCC

2шт.

4

3115524R1

SCREW

SPARE PART COVER RETAINING

1шт.

5

3113442R1

BUMPER

REGISTRATION NUMBER PLATE

2шт.
