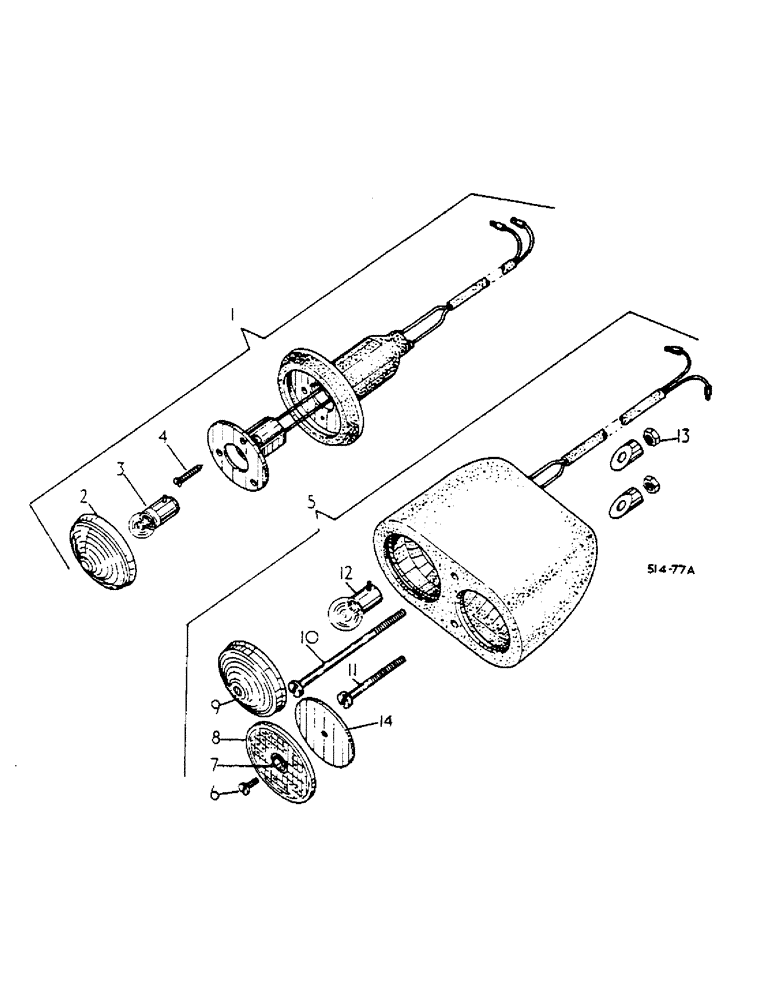

Запчасти Case IH 2400 (08-34) - FENDER WIRING AND LIGHTS, TRACTORS WITH FLAT TOP FENDERS, 454/100570 UP, 2400/100082 UP (06) - ELECTRICAL

1

3114100R91

LIGHT

SIDE, ORDER LIGHT 3116573R91 W/SCREWS 145193

2шт.

2

3112638R1

LENS

CLEAR

2шт.

3

3113360R1

SPARE PART

LAMP, 12V, 6W BULB

2шт.

4

NLS

NO LONGER SERVICED

NO.6. X 1/2 SLT PAN HD TAP

6шт.

5

3114101R91

NO LONGER SERVICED

LIGHT, L.H. TAIL, ILLUSTRATED

1шт.

5

3114102R91

TAIL LAMP

LIGHT, R.H. TAIL

1шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

2шт.

7

3112698R1

WASHER

CUP NYLON

2шт.

8

3112697R91

REFLECTOR

CPTE, RED

2шт.

9

3112696R

LENS, RED

2шт.

10

25945R1

SCREW

SPARE PART 1/4 X 4 CROSS RECESS ZINC PLATED

2шт.

31127001

WASHER

1шт.

11

445998

SCREW

SPARE PART 1/4 X 2 CROSS RECESS ZINC PLATED

2шт.

3112700R1

WASHER

1шт.

12

894878H1

BULB

LAMP, 12V, 21/5W

2шт.

13

86625061

NUT,1/4"-20, GB

W/Nylon insert

4шт.

14

3115981R1

PLATE

REFLECTOR BACKING

1шт.

3113661R1

GROMMET

FENDER HARNESS

2шт.

3113100R1

HARNESS

L.H. FENDER

1шт.

3113101R1

HARNESS

R.H. FENDER

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY L.H. FENDER

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY R.H. FENDER

6шт.

3112888R1

PLUG

BLANKING SIDE LIGHT

2шт.

3113657R1

PLUG

BLANKING SIDE LIGHT

4шт.

ATTACHMENT, SPECIAL PARTS FOR AUSTRIA, FACTORY APPLICATION, LIGHTING, CONSISTS OF ALL PARTS LISTED BELOW

1шт.

3113663R91

HARNESS

SUPPLEMENTRY PANEL, UP TO 454/101983, UP TO 2400/100212, SPECIAL FOR AUSTRIA, LIGHTING

1шт.

3116909R91

HARNESS

SUPPLEMENTRY PANEL, SPECIAL FOR AUSTRIA, LIGHTING

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP PANEL HARNESS TO INSTRUMENT PANEL, 454/101984 UP, 2400/100213 UP, SPECIAL FOR AUSTRIA, LIGHTING

1шт.

3112364R91

LIGHT

MAIN BEAM WARNING, SPECIAL FOR AUSTRIA

1шт.

41099R91

LAMP, 12V, 2.2W, BLUE, SPECIAL FOR AUSTRIA, LIGHTING

1шт.

705266R91

HORN

BUTTON, HEADLAMP FLASH, SPECIAL FOR AUSTRIA, LIGHTING

1шт.

3113202R1

PLUG

PLOUGH LIGHT HOLE, SPECIAL FOR AUSTRIA, LIGHTING

1шт.

3112888R1

PLUG

PLOUGH LIGHT HOLE, OPTIONAL, SPECIAL FOR AUSTRIA, LIGHTING

1шт.
