Запчасти Case IH 2400 (08-30) - FENDER WIRING AND LIGHTS, TRACTORS WITH CROWN FENDERS (06) - ELECTRICAL

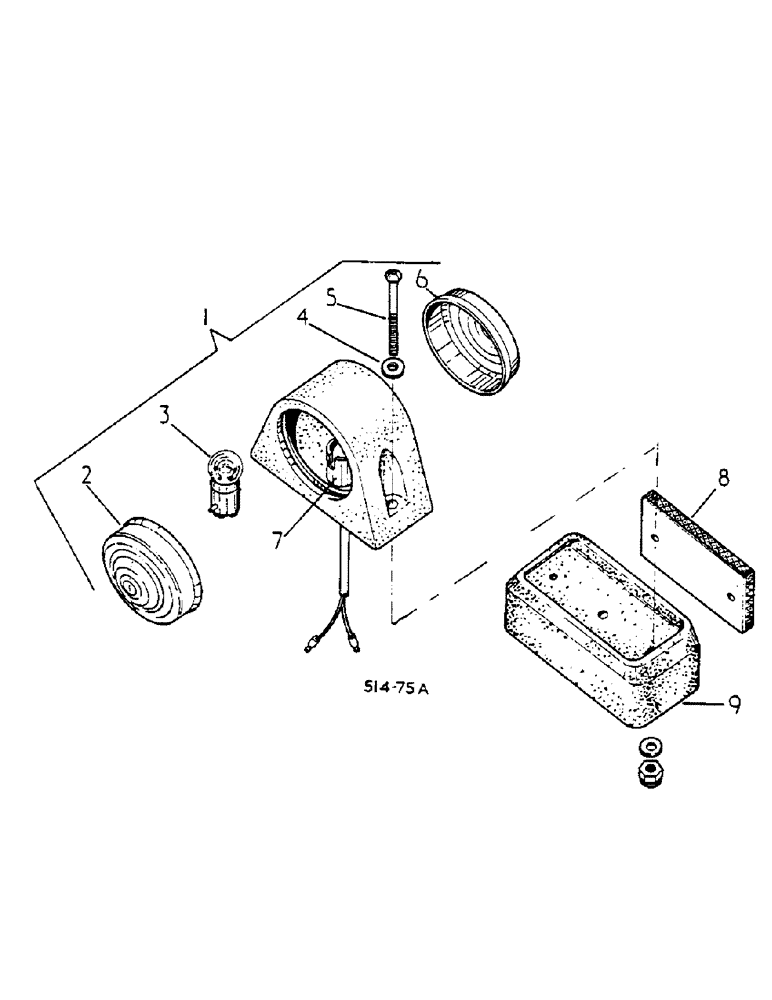

Схема запчастей Case IH 2400 - (08-30) - FENDER WIRING AND LIGHTS, TRACTORS WITH CROWN FENDERS (06) - ELECTRICAL
1
3
6
4
5
2
9
8
7

Артикул

Название

Примечание

Количество

1

533572R92

LAMP, TAIL

LIGHT, TAIL ASSY, SIDE FENDER, CONSISTS OF: REF. 1 TO 9

2шт.

1

530039R91

NO LONGER SERVICED

LIGHT, SIDE AND TAIL, ORDER 533572R92

2шт.

2

3113396R1

LENS

CLEAR, E REGULATION

2шт.

3

894879H1

BULB

LAMP, 12V, 5W, SBC

2шт.

4

446152

HYD CONNECTOR

PLAIN

4шт.

5

3121291R1

SCREW

2 BA X 21/4 RD HD

2шт.

3062475R1

NUT

2 BA

2шт.

121801

LOCK WASHER,Int Tooth, #10

2шт.

6

3112860R1

LENS

RED, E REGULATION

2шт.

7

3074005R91

HOLDER

LAMP AND BRACKET

2шт.

8

530041R1

REFLECTOR

FENDER

2шт.

9

BASE, FENDER SIDE AND TAIL

2шт.

3112371R1

GROMMET

FENDER HARNESS LARGE, 454/100570 UP, 2400/100082 UP

2шт.

3113660R91

HARNESS

L.H. AND R.H. FENDER, 454/100570 UP, 2400/100082 UP

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR L.H. AND R.H. FENDER 1 WAY, 454/100570 UP, 2400/100082 UP

4шт.

705896R1

CONNECTOR, ELEC

CONNECTOR R.H. FENDER 2 WAY, UP TO 454/100569, UP TO 2400/100081

1шт.

530042R1

SPARE PART FENDER HARNESS SMALL, 454/100570 UP, 2400/100082 UP

1шт.

530043R1

GROMMET

FENDER HARNESS LARGE, 454/100570 UP, 2400/100082 UP

2шт.

530037R1

HARNESS

LH FENDER, 454/100570 UP, 2400/100082 UP

1шт.

530038R1

HARNESS

RH FENDER, 454/100570 UP, 2400/100082 UP

1шт.

Выбрано товаров: 20
