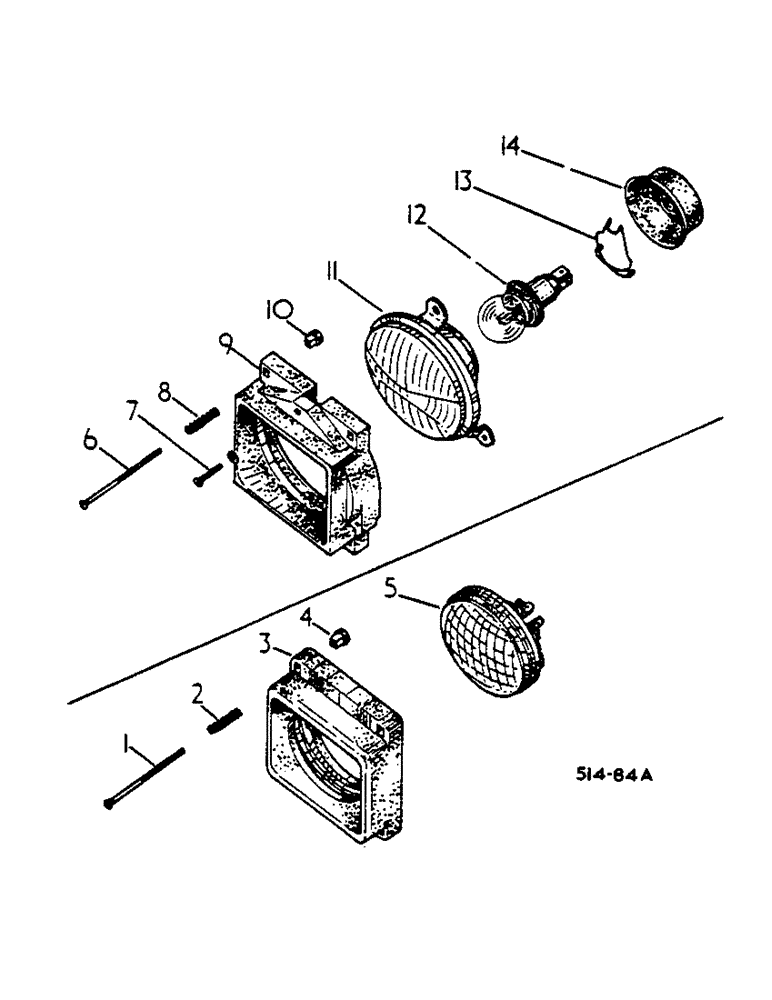

Запчасти Case IH 2400 (08-24) - HEADLIGHT, DOMESTIC (06) - ELECTRICAL

1

530179R1

SCREW

HEADLIGHT MOUNTING

8шт.

21870R1

WASHER

17/64 X 3/4 X 16 GA C-Z

8шт.

2

528533R1

SPRING

HEADLIGHT HOUSING

8шт.

3

537013R1

HOUSING

HEADLIGHT UNIT

2шт.

4

537014R1

INSERT

HEADLIGHT HOUSING

8шт.

5

3072947R91

HEADLIGHT

UNIT, EUROPEAN 002221 UP

2шт.

6

530179R1

SCREW

HEADLIGHT MOUNTING

8шт.

21870R1

WASHER

17/64 X 3/4 X 16 GA C-Z

8шт.

7

537774R1

SCREW

HEADLIGHT UNIT MOUNTING

6шт.

933187R1

NUT,M5, Cl 8

HEX

6шт.

446151

HYD CONNECTOR

WASHER, 13/64 X 15/32 X .36

6шт.

8

528533R1

SPRING

HEADLIGHT HOUSING

8шт.

9

537773R1

HOUSING

HEADLIGHT UNIT

2шт.

10

537014R1

INSERT

HEADLIGHT HOUSING

8шт.

11

537777R1

LIGHT

HEAD UNIT, HELLA, ILLUSTRATED

2шт.

11

3115606R1

HEADLIGHT

UNIT, AUTEROCHE

2шт.

11

537780R1

LIGHT, HEAD UNIT, BOSH

2шт.

537781R1

CLIP, HEADLIGHT MOUNTING, BOSH

3шт.

12

537775R1

LAMP

12V, 45/40W, WHITE BULB

2шт.

12

537776R1

LAMP

12V, 45/40W, YELLOW BULB

2шт.

13

537778R1

CLIP

HEADLIGHT BULB MOUNTING, HELLA

1шт.

13

537782R1

CLIP, HEADLIGHT BULB MOUNTING, BOSH

1шт.

14

537779R1

CAP

HEADLIGHT BULB SEALING, HELLA

1шт.

14

537783R1

CAP, HEADLIGHT BULB SEALING, BOSH

1шт.

14

3115607R1

HEADLIGHT

CAP, RUBBER, AUTEROCHE

2шт.

537771R91

LIGHT

ASSY, HEADLIGHT, HELLA, CONSISTS OF ONE EACH OF: CAP 537779R1, CLIP 537778R1, LIGHT 537777R1, LAMP 537775R1

2шт.

537772R91

SPARE PART

LIGHT ASSY, HEAD, BOSH, CONSISTS OF: (1) CAP 537783R1, (1) CLIP 537782R1, (3) CLIP 537781R1, (1) LIGHT 537780R1

2шт.

3115602R91

HEADLIGHT

ASSY, AUTEROCHE, CONSISTS OF: (1) CAP 3115607R1, (1) LIGHT 3115606R1

1шт.

4317117R1

BRACKET, CPTE HEADLAMP, EUROPEAN 000519 TO 002220

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

European 000519 TO 002220

8шт.

134302

10-24 X 1 OVAL HD MACH, EUROPEAN 000519 TO 002220

8шт.

120217

LOCK WASHER,#10

European 000519 TO 002220

8шт.

21870R1

WASHER

EUROPEAN 000519 TO 002220

2шт.

3057536R91

HEADLAMP

LIGHT CPTE, LH, EUROPEAN 000519 TO 002220

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

European 000519 TO 002220

2шт.

80681

LOCK WASHER,5/16"

RSL, European 000519 to 002220

2шт.

3057539R1

LIGHT CPTE, HEAD RH, EUROPEAN 000519 TO 002220

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

European 000519 TO 002220

2шт.

80681

LOCK WASHER,5/16"

RSL, European 000519 to 002220

2шт.

3076115R1

BULB,Halogen, 12V, 40W

LAMP, 12, 45/40W, WHITE BULB, EUROPEAN 000519 TO 002220

2шт.

3050198R1

LAMP, 12V, 45/40W, YELLOW BULB, EUROPEAN 000519 TO 002220

2шт.
