Запчасти Case IH 2400 (08-19) - MAIN CABLE HARNESS AND CONNECTIONS, W/ALTERNATOR, 454/101984 UP, 2400/100213 UP (06) - ELECTRICAL

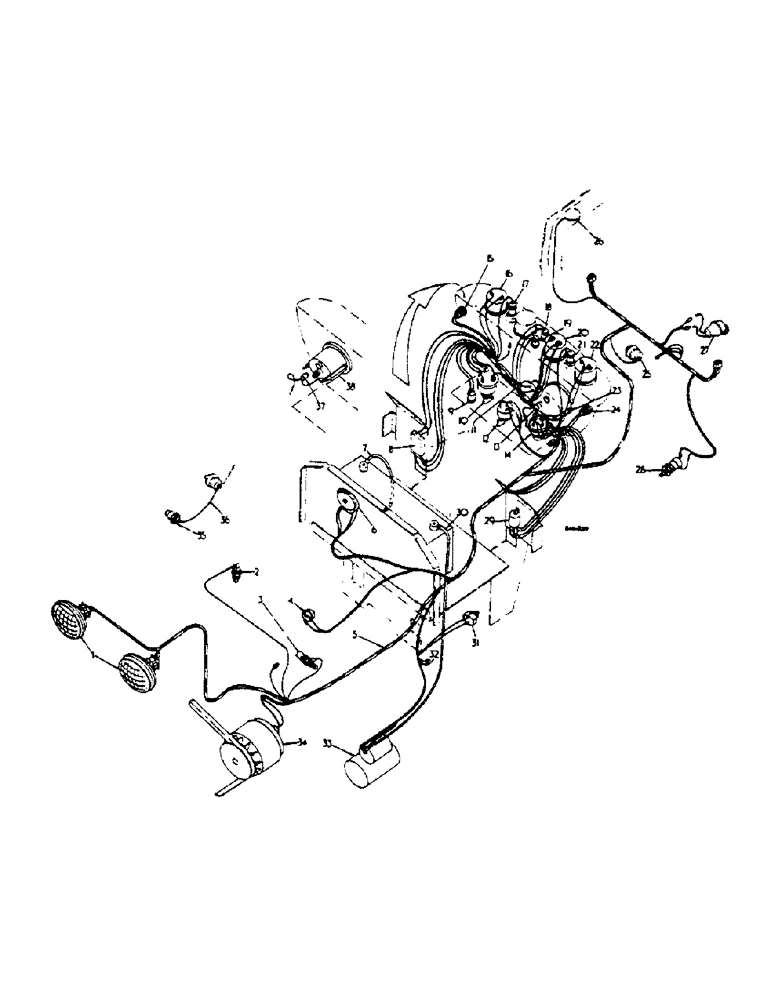

Схема запчастей Case IH 2400 - (08-19) - MAIN CABLE HARNESS AND CONNECTIONS, W/ALTERNATOR, 454/101984 UP, 2400/100213 UP (06) - ELECTRICAL
9
10
33
38
23
13
12
2
6
5
4
28
1
11
36
15
17
32
3
18
21
24
8
27
25
26
16
20
34
35
22
29
37
19
7
14
31
30

Артикул

Название

Примечание

Количество

1

LIGHT, HEAD R.H. AND L.H, SEE HEADLIGHT

1шт.

2

TRANSMITTER, HEAT INDICATOR, SEE INSTRUMENT PANEL AND GAUGES

1шт.

3

GLOW PLUG, SEE THERMOSTART

1шт.

4

SWITCH, BRAKE LIGHT, SEE BRAKE LIGHT SWITCH AND BRACKET, DELUXE

1шт.

5

3116902R91

HARNESS

ASSY, MAIN CABLE

1шт.

6

HORN, ATTACHMEN, SEE HORN ATTACHMENT

1шт.

7

3116906R1

CABLE

BATTERY NEG. TO EARTH

1шт.

8

HOUSING, FUSE, SEE ENGINE AND ELECTRICAL SWITCHES

1шт.

9

BUTTON, HORN, SEE ENGINE AND ELECTRICAL SWITCHES

1шт.

10

SWITCH, KEY, SEE ENGINE AND ELECTRICAL SWITCHES

1шт.

11

894348H1

WARNING LIGHT

ALTERNATOR

1шт.

894350H1

BULB

LAMP, 12V, 2.2W MCC

1шт.

3119789R1

BULB

LAMP, 12V, 2W, 8.8 MM TUBULAR, OPTIONAL

1шт.

3074997R91

CAP

SCREWED W/LENS

1шт.

12

SWITCH, FLASHER, SEE FLASHER INSTRUMENTS

1шт.

13

HOLDER, TACHOMETER

1шт.

LAMP, 12V, 3W, CAPLESS, SEE INSTRUMENT PANEL AND GAUGES

1шт.

14

SWITCH, LIGHT, SEE ENGINE AND ELECTRICAL SWITCHES

1шт.

15

LIGHT, TRAILER WARNING, SEE FLASHER INSTRUMENTS

1шт.

16

INDICATOR, HEAT, SEE INSTRUMENT PANEL AND GAUGES

1шт.

17

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

705757R91

LAMP

PANEL, 12V, 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL, 12V, 6W MCC, OPTIONAL

1шт.

18

3117436R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

3041099R1

LAMP

TRANS OIL PRESSURE WARNING, 12V, 2.2 MES

1шт.

19

3117435R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

3041099R1

LAMP

PARK BRAKE WARNING, 12V, 2.2 MES

1шт.

20

AMMETER, SEE INSTRUMENT PANEL GAUGES

1шт.

21

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

705757R91

LAMP

PANEL, 12V, 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL, 12V, 6W MCC

1шт.

22

GAUGE, FUEL, SEE INSTRUMENT PANEL AND GAUGES

1шт.

23

TACHOMETER, SEE INSTRUMENT PANEL AND GAUGES

1шт.

24

LIGHT, TRACTOR WARNING, SEE FLASHER INSTRUMENTS

1шт.

25

376855R92

SWITCH

TRANS OIL PRESSURE WARNING LIGHT

1шт.

25

3118643R1

SWITCH

ASSY, OIL PRESSURE, OPTIONAL

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, OIL PRESSURE SWITCH

1шт.

26

TRANSMITTER, FUEL GAUGE, SEE FUEL TANK SUPPORTS AND PIPING

1шт.

27

705271R1

SOCKET

POWER 2 PIN

1шт.

709237R2

BRACKET

POWER SOCKET, NOT REQUIRED WHEN DELUXE LIGHTING FITTED

1шт.

28

529461R91

IGNITION SWITCH

PARKING BRAKE WARNING

1шт.

534351R1

COVER

WARNING LIGHT

1шт.

29

FLASHER, UNIT, SEE FLASHER INSTRUMENTS

1шт.

30

528301R1

CABLE ASSY.

BATTERY TO SOL SWITCH

1шт.

31

SWITCH, SAFETY START, SEE NEUTRAL SAFETY SWITCH

1шт.

32

CONNECTOR, WINDSCREEN WIPER, SEE SAFETY CAB

1шт.

33

STARTER, SEE STARTER MOTOR

1шт.

34

ALTERNATOR, SEE ALTERNATOR AND CONNECTIONS

1шт.

35

65425C1

SWITCH

TRANS OIL TEMP

1шт.

120614

NUT,Hex, #10 - 32

1шт.

120217

LOCK WASHER,#10

Hydrostatic Drive Tractors

1шт.

36

3113489R1

CABLE ASSY, FLYING LEAD

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, HYDROSTATIC DRIVE TRACTORS

1шт.

37

HOLDER, SPEEDOMETER

1шт.

LAMP, 12V, 3W CAPLESS, SEE INSTRUMENT PANEL AND GAUGES

1шт.

38

SPEEDOMETER, SEE INSTRUMENT PANEL AND GAUGES

1шт.

537025R1

CLIP

MAIN HARNESS

1шт.

3070930R1

CLIP

MAIN HARNESS

2шт.

3067819R1

SPARE PART MAIN HARNESS, ON GRILLE HSG. BRKT

1шт.

537024R1

CLIP

SAFETY START CABLE, ON BATTERY TRAY SUPPORT

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Solenoid

2шт.

3116240R1

CLIP

BATTERY

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

NO.8 X 3/8

1шт.

225-10108

NUT,#8-32

1шт.

492-11008

LOCK WASHER,#8

1шт.

3112817R1

CLAMP

HORN CABLE

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY

1шт.

708115R1

PLATE ASSY.

CLIP, TEMP SENDING UNIT CABLE

1шт.

539015R1

CLIP

MAIN CABLE HARNESS

2шт.

708115R1

PLATE ASSY.

CLIP, MAIN CABLE HARNESS

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

3/8-16 X 1/2 SET

2шт.

103321

LOCK WASHER,3/8"

2шт.

289862R1

STRAP, FUEL LINE

2шт.

3116908R1

CLIP,ELECTRICAL

SAFETY START CABLE

1шт.

3116908R1

CLIP,ELECTRICAL

REAR HARNESS

2шт.

366460R1

CABLE CLIP

INJECTION PUMP COVER

2шт.

Выбрано товаров: 83
