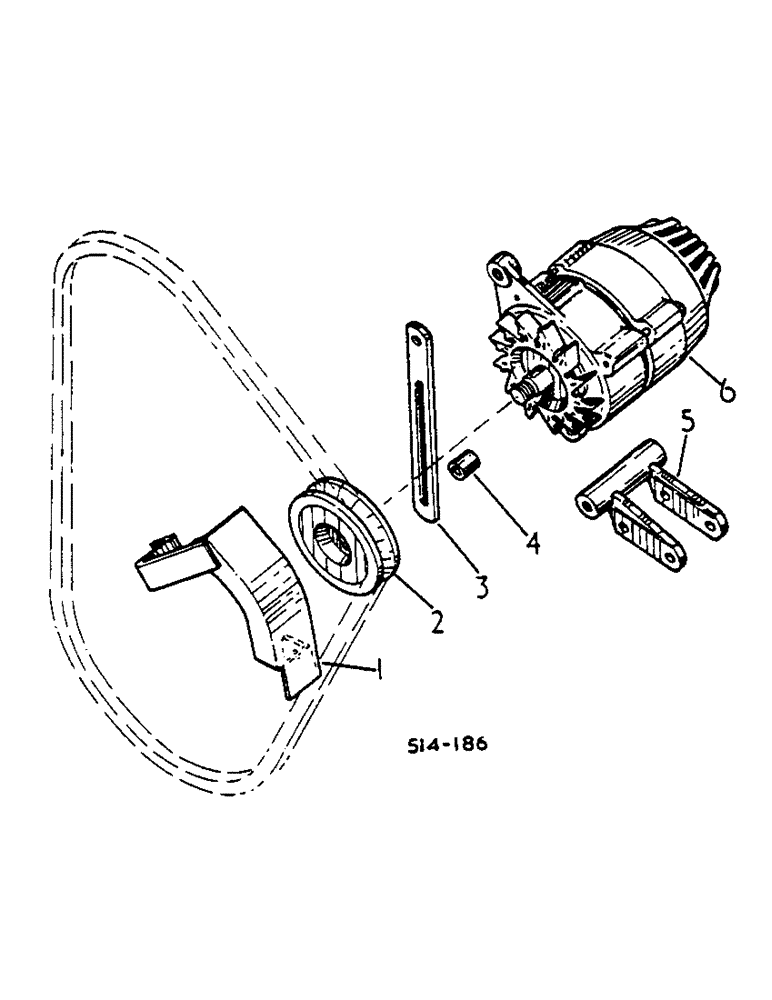

Запчасти Case IH 2400 (08-12) - ALTERNATOR AND CONNECTIONS, UP TO 454/9039 (06) - ELECTRICAL

1

3113337R1

SHIELD

CPTE, ALTERNATOR

1шт.

2

3113332R1

PULLEY

SPARE PART ALTERNATOR

1шт.

3

3113336R1

BRACE

ALTERNATOR

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.

4

3113341R1

SPACER

ALTERNATOR BRACE

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

1шт.

5

3113333R1

BRACKET

ASSY, ALTERNATOR

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

3113331R91

ALTERNATOR

LUCAS 15 ACR, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF ALTERNATOR

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

BOLT, 5/16 X 1-1/2 HEX HD

1шт.

80681

LOCK WASHER,5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.
