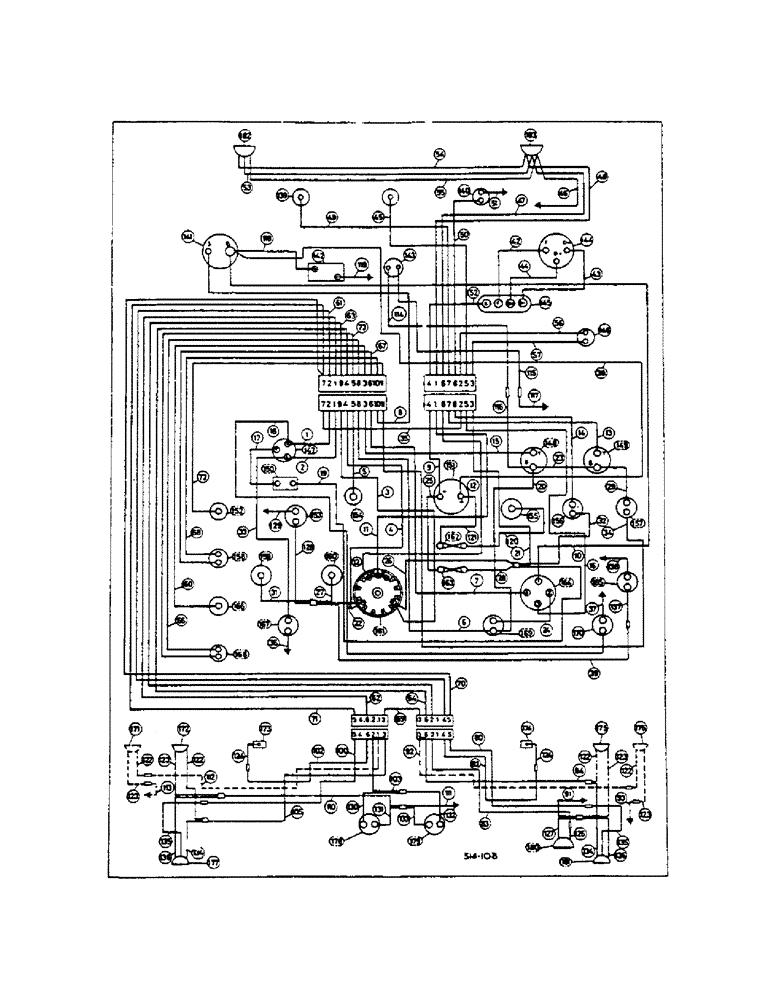

Запчасти Case IH 2400 (08-03) - STARTING AND LIGHTING, TRACTORS FITTED W/GENERATOR (06) - ELECTRICAL

528304R3

HARNESS ASSY, INSTRUMENT PANEL CABLE, ORDER HARNESS PACKAGE 3113092R91

1шт.

3113088R1

HARNESS

ASSY, INSTRUMENT PANEL CABLE, CONSISTS OF: REF. 1 TO 39

1шт.

1

CABLE, CONNECTOR 11 WAY LH PIN 2 TO FLASHER SWITCH TERM R, GREEN/WHITE

1шт.

2

CABLE, CONNECTOR 11 WAY LH PIN 1 TO FLASHER SWITCH TERM L, GREEN/RED

1шт.

3

CABLE, CONNECTOR 11 WAY LH PIN 9 TO LIGHT SWITCH TERM 4, RED/WHITE

1шт.

4

CABLE, CONNECTOR 11 WAY LH PIN 4 TO LIGHT SWITCH TERM 8, RED

1шт.

5

CABLE, CONNECTOR 11 WAY LH PIN 5 TO PARKING BRAKE WARNING LIGHT, PURPLE/RED

1шт.

6

CABLE, CONNECTOR 11 WAY LH PIN 8 TO AUXILIARY FUSE OUT TERM, GREEN

1шт.

7

CABLE, CONNECTOR 11 WAY LH PIN 6 TO KEY SWITCH TERM 4, RED/BLACK

1шт.

8

CABLE, CONNECTOR 11 WAY LH PIN 10 TO STARTER MOTOR S TERM, WHITE/RED

1шт.

9

CABLE, AMMETER NEGATIVE TERM TO CONNECTOR 8 WAY RH PIN 4, BROWN/WHITE

1шт.

10

CABLE, STARTER MOTOR 8 TERM TO KEY SWITCH TERM 1, RED

1шт.

11

CABLE, LIGHT SWITCH TERM 13 TO CONNECTOR 8 WAY RH PIN 1, BLUE/YELLOW

1шт.

12

CABLE, LIGHT SWITCH TERM 12 TO CONNECTOR 8 WAY RH PIN 6, BLUE/RED

1шт.

13

CABLE, HEAT INDICATOR TERM T TO CONNECTOR 8 WAY RH PIN 7, GREEN/BLUE

1шт.

14

CABLE, HORN PUSH TO CONNECTOR 8 WAY RH PIN 8, PURPLE/BLACK

1шт.

15

CABLE, CONNECTOR 11 WAY LH PIN 3 TO FUEL GAUGE TERM T, GREEN/BLACK

1шт.

16

CABLE, KEY SWITCH TERM 3 TO CONNECTOR 8 WAY RH PIN 5, BROWN/RED

1шт.

17

CABLE, FLASHER UNIT TO FLASHER SWITCH TERM F, LIGHT GREEN/BROWN

1шт.

18

CABLE, FLASHER WARNING LIGHT RH TO FLASHER SWITCH TERM R, GREEN/WHITE

1шт.

19

CABLE, FLASHER UNIT TO NO 1 LINE FUSE CONNECTOR, GREEN

1шт.

20

CABLE, FUEL GAUGE TERM B TO AUXILIARY FUSE OUT TERM, GREEN

1шт.

21

CABLE, NO 1 LINE FUSE CONN TO CONNECTOR 8 WAY RH PIN 3, GREEN

1шт.

22

CABLE, LIGHT SWITCH TERM 8 TO PANEL LIGHTS CONN, RED

1шт.

23

CABLE, FUEL GAUGE TERM B TO HEAT INDICATOR TERM B, GREEN

1шт.

24

CABLE, KEY SWITCH TERM 2 TO AUXILIARY FUSE IN TERM, WHITE

1шт.

25

CABLE, AMMETER NEGATIVE TERM TO NO 1 LINE FUSE, BROWN/BLUE

1шт.

26

CABLE, LIGHT SWITCH TERM 4 TO NO 1 LINE FUSE CONN, BROWN/BLUE

1шт.

27

CABLE, PANEL LIGHT NO 2 TO PANEL LIGHTS CONN, RED

1шт.

28

CABLE, NO 1 LINE FUSE TO NO 1 LINE FUSE CONN, BROWN/BLUE

1шт.

29

CABLE, HEAT INDICATOR TERM B TO TRANS OIL PRESSURE WARNING LIGHT, GREEN

1шт.

30

NOT USED

1шт.

31

CABLE, PANEL LIGHT NO 1 TO PANEL LIGHT CONN, RED

1шт.

32

CABLE, HORN PUSH TO NO 1 LINE FUSE CONN, PURPLE

1шт.

33

CABLE, FLASHER SWITCH TERM L TO FLASHER WARNING LIGHT LH, GREEN/RED

1шт.

34

CABLE, TRANS OIL PRESSURE WARNING LIGHT TO CONNECTOR 11 WAY LH PIN 11, BLACK/RED

1шт.

35

CABLE, CONNECTOR 8 WAY RH PIN 2 TO CONNECTOR 11 WAY LH PIN 7, GREEN/PURPLE

1шт.

36

CABLE, FLASHER WARNING LIGHT LH TO EARTH, BLACK

1шт.

37

CABLE, FLASHER WARNING LIGHT RH TO EARTH, BLACK

1шт.

38

CABLE, STARTER MOTOR B TERM TO AMMETER POSITIVE TERM, RED

1шт.

39

CABLE, SPEEDOMETER CONN TO PANEL LIGHT CONN, RED

1шт.

528302R2

HARNESS ASSY, MAIN CABLE, ORDER HARNESS PACKAGE 3113092R91

1шт.

3113089R1

WIRE HARNESS

ASSY, MAIN CABLE, CONSISTS OF: REF. 40 TO 59

1шт.

40

NOT USED

1шт.

41

NOT USED

1шт.

42

CABLE, GENERATOR TERM F TO REGULATOR TERM , BROWN/GREEN

1шт.

43

CABLE, GENERATOR TERM D NEGATIVE TO REGULATOR TERM D NEGATIVE, BLACK

1шт.

44

CABLE, GENERATOR TERM D POSITIVE TO REGULATOR TERM D POSITIVE, BROWN/YELLOW

1шт.

45

CABLE, CONNECTOR 8 WAY RH PIN 5 TO MANIFOLD HEATER, BROWN/RED

1шт.

46

CABLE, RH HEADLAMP CONN TO EARTH, BLACK

1шт.

47

CABLE, CONNECTOR 8 WAY RH PIN 6 TO RH HEADLAMP MAIN CONN, BLUE/RED

1шт.

48

CABLE, CONNECTOR 8 WAY RH PIN 1 TO RH HEADLAMP DIP CONN, BLUE/YELLOW

1шт.

49

CABLE, CONNECTOR 8 WAY RH PIN 7 TO HEAT INDICATOR TRANSMITTER, GREEN/BLUE

1шт.

50

CABLE, CONNECTOR 8 WAY RH PIN 8 TO HORN FEED TERM, PURPLE/BLACK

1шт.

51

CABLE, EARTH TO HORN EARTH TERM, BLACK

1шт.

52

CABLE, CONNECTOR 8 WAY RH PIN 4 TO REGULATOR TERM B, BROWN/WHITE

1шт.

53

CABLE, HEADLAMP LH CONN MAIN TO HEADLAMP RH CONN MAIN, BLUE/RED

1шт.

54

CABLE, HEADLAMP LH DIP CONN TO HEADLAMP RH DIP CONN, BLUE/YELLOW

1шт.

55

CABLE, HEADLAMP LH EARTH CONN TO HEADLAMP RH EARTH CONN, BLACK

1шт.

56

CABLE, CONNECTOR 8 WAY RH PIN 2 TO BRAKE LIGHT SWITCH, GREEN/PURPLE

1шт.

57

CABLE, CONNECTOR 8 WAY RH PIN 3 TO BRAKE LIGHT SWITCH, GREEN

1шт.

58

NOT USED

1шт.

59

NOT USED

1шт.

528303R1

SPARE PART ASSY, SIDE AND TAIL LIGHT, ORDER HARNESS PACKAGE 3113092R91

1шт.

3113090R1

WIRE HARNESS

ASSY, SIDE AND TAIL LIGHT, CONSISTS OF: REF. 60 TO 73

1шт.

60

CABLE, CONNECTOR 11 WAY LH PIN 3 TO FUEL TRANSMITTER, GREEN/BLACK

1шт.

61

CABLE, CONNECTOR 11 WAY LH PIN 2 TO CONNECTOR 6 WAY RH PIN 4, GREEN/WHITE

1шт.

62

CABLE, CONNECTOR 11 WAY LH PIN 1 TO CONNECTOR 6 WAY LH PIN 6, GREEN/RED

1шт.

63

CABLE, CONNECTOR 11 WAY LH PIN 9 TO CONNECTOR 6 WAY RH PIN 2, RED/WHITE

1шт.

64

CABLE, CONNECTOR 11 WAY LH PIN 4 TO CONNECTOR 6 WAY RH PIN 6, RED

1шт.

65

NOT USED

1шт.

66

CABLE, CONNECTOR 11 WAY LH PIN 8 TO PARKING BRAKE SWITCH, GREEN

1шт.

67

CABLE, CONNECTOR 11 WAY LH PIN 6 TO SAFETY START SWITCH, RED/BLACK

1шт.

68

CABLE, CONNECTOR 11 WAY LH PIN 10 TO SAFETY START SWITCH, WHITE/RED

1шт.

69

CABLE, CONNECTOR 6 WAY LH PIN 3 TO CONNECTOR 6 WAY RH PIN 3, RED

1шт.

70

CABLE, CONNECTOR 11 WAY LH PIN 7 TO CONNECTOR 6 WAY RH PIN 5, GREEN/PURPLE

1шт.

71

CABLE, CONNECTOR 11 WAY LH PIN 7 TO CONNECTOR 6 WAY LH PIN 5, GREEN/PURPLE

1шт.

72

CABLE, CONNECTOR 11 WAY LH PIN 11 TO TRANSMISSION OIL PRESSURE SWITCH, BLACK/RED

1шт.

73

CABLE, CONNECTOR 11 WAY LH PIN 5 TO PARKING BRAKE SWITCH, PURPLE/RED

1шт.

74

REF. 74 TO 79 NOT USED

1шт.

75

NOT USED

1шт.

76

NOT USED

1шт.

77

NOT USED

1шт.

78

NOT USED

1шт.

79

NOT USED

1шт.

HARNESS, RH FENDER, CONSISTS OF: REF. 80 TO 91

1шт.

80

CABLE, CONNECTOR 6 WAY RH PIN 5 TO RH STOP LAMP CONN, GREEN/PURPLE

1шт.

81

NOT USED

1шт.

82

CABLE, CONNECTOR 6 WAY PIN 4 TO RH FLASHER LIGHT CONN, GREEN/WHITE

1шт.

83

CABLE, CONNECTOR 6 WAY RH PIN 2 TO PLOUGH LAMP CONN, RED/WHITE

1шт.

84

CABLE, CONNECTOR 6 WAY RH PIN 6 TO RH SIDE AND TAIL LAMP CONN, RED

1шт.

85

REF. 85 TO 90 NOT USED

1шт.

86

NOT USED

1шт.

87

NOT USED

1шт.

88

NOT USED

1шт.

89

NOT USED

1шт.

90

NOT USED

1шт.

91

CABLE, EARTH TO SIDE AND TAIL LAMP AND PLOUGH LAMP EARTH CONN, BLACK

1шт.

CABLE ASSY, CABLES IN RH FENDER W/SAFETY CAB, CONSISTS OF: REF. 92 AND 93

1шт.

92

CABLE, CONNECTOR 6 WAY RH PIN 3 TO RH SIDE LIGHT CONN, RED

1шт.

93

CABLE, EARTH CONN TO EARTH, BLACK

1шт.

94

REF. 94 TO 99 NOT USED

1шт.

95

NOT USED

1шт.

96

NOT USED

1шт.

97

NOT USED

1шт.

98

NOT USED

1шт.

99

NOT USED

1шт.

HARNESS, LH FENDER, CONSISTS OF: REF. 100 TO 111

1шт.

100

CABLE, CONNECTOR 6 WAY LH PIN 5 TO STOP LAMP CONN LH, GREEN/PURPLE

1шт.

101

NOT USED

1шт.

102

CABLE, CONNECTOR 6 WAY LH PIN 6 TO LH FLASHER CONN, GREEN/RED

1шт.

103

CABLE, CONNECTOR 6 WAY LH PIN 2 TO POWER SOCKET CONN, RED

1шт.

104

NOT USED

1шт.

105

CABLE, CONNECTOR 6 WAY LH PIN 3 TO SIDE AND TAIL LAMP CONN LH, RED

1шт.

106

REF. 106 TO 109 NOT USED

1шт.

107

NOT USED

1шт.

108

NOT USED

1шт.

109

NOT USED

1шт.

110

CABLE, SIDE AND TAIL LIGHT EARTH CONN LH TO POWER SOCKET CONN, BLACK

1шт.

111

CABLE, EARTH TO POWER SOCKET CONN, BLACK

1шт.

CABLE ASSY, CABLES IN LH FENDER WITH SAFETY CAB, CONSISTS OF: REF. 112 AND 113

1шт.

112

CABLE, CONNECTOR 6 WAY LH PIN 1 TO LH SIDE LIGHT CONN, RED

1шт.

113

CABLE, EARTH TO LH SIDE LIGHT CONN, BLACK

1шт.

CABLE ASSY, WINDSCREEN WIPER FLYING LEAD, CONSISTS OF: REF. 114 AND 115

1шт.

114

CABLE, WINDSCREEN WIPER TO CONNECTOR, GREEN

1шт.

115

CABLE, WINDSCREEN WIPER TO CONNECTOR, BLACK

1шт.

CABLE ASSY, WINDSCREEN WIPER FLYING LEAD EXTENSION, CONSISTS OF: REF. 116 AND 117

1шт.

116

CABLE, FUEL GAUGE TERM B TO CONNECTOR, GREEN

1шт.

117

CABLE, EARTH TO CONNECTOR, BLACK

1шт.

118

528301R1

CABLE ASSY.

BATTERY POSITIVE TO STARTER MOTOR B, VIR AND PVC SHEATH

1шт.

119

3113066R1

CABLE

BATTERY NEGATIVE TO EARTH, SYNCHROMESH DRIVE TRACTORS

1шт.

119

529967R1

CABLE

BATTERY NEGATIVE TO EARTH, HYDROSTATIC DRIVE TRACTORS, SYNCHROMESH DRIVE TRACTORS W/COLD START ATTACHMENT

1шт.

CABLE ASSY, CIGAR LIGHTER AND FUSE, PRE-WIRED, CONSISTS OF: REF. 120 AND 121

1шт.

120

CABLE, CIGAR LIGHTER TO NO 2 FUSE, WHITE/GREEN

1шт.

121

CABLE, AMMETER TO NO 2 FUSE, WHITE/GREEN

1шт.

CABLE ASSY, SIDE LIGHTS, PRE-WIRED, CONSISTS OF: REF. 122 AND 123

1шт.

122

CABLE, SIDE LIGHTS TO SIDE AND TAIL LIGHTS CONN, RED

1шт.

123

CABLE, SIDE LIGHTS TO EARTH CONNECTOR, BLACK

1шт.

CABLE ASSY, FLASHER LIGHTS, PRE-WIRED, CONSISTS OF: REF. 124

1шт.

124

CABLE, FLASHER LIGHT TO FLASHER LIGHT CONNECTOR, BLACK

1шт.

125

NOT USED

1шт.

CABLE ASSY, PLOUGH LAMP, PRE-WIRED, CONSISTS OF: REF. 126 AND 127

1шт.

126

CABLE, PLOUGH LAMP TO PLOUGH LAMP CONN, RED/WHITE

1шт.

127

CABLE, PLOUGH LAMP TO SIDE AND TAIL LIGHT EARTH CONN, BLACK

1шт.

CABLE ASSY, TACHOMETER ILLUMINATION LAMP, CONSISTS OF: REF. 128 AND 129

1шт.

128

CABLE, TACHOMETER LAMP TO PANEL LIGHTS CONN, RED

1шт.

129

CABLE, TACHOMETER LAMP TO EARTH, BLACK

1шт.

CABLE ASSY, POWER SOCKET, PRE-WIRED, CONSISTS OF: REF. 130 AND 131

1шт.

130

CABLE, POWER SOCKET TO POWER SOCKET CONNECTOR, RED

1шт.

131

CABLE, POWER SOCKET TO POWER SOCKET EARTH CONN, BLACK

1шт.

CABLE ASSY, REGISTRATION NUMBER PLATE LIGHT, PRE-WIRED, CONSISTS OF: REF. 132 AND 133

1шт.

132

CABLE, REGISTRATION NUMBER PLATE LIGHT TO POWER SOCKET CONN, RED

1шт.

133

CABLE, REGISTRATION NUMBER PLATE LIGHT TO POWER SOCKET EARTH CONN, BLACK

1шт.

CABLE ASSY, STOP AND TAIL LIGHTS, PRE-WIRED, CONSISTS OF: REF. 134 TO 136

1шт.

134

CABLE, STOP AND TAIL LIGHTS TO STOP AND TAIL LIGHTS CONN, RED

1шт.

135

CABLE, STOP AND TAIL LIGHTS TO STOP AND TAIL LIGHTS CONN, GREEN

1шт.

136

CABLE, STOP AND TAIL LIGHTS TO EARTH, BLACK

1шт.

CABLE ASSY, HYDROSTATIC SPEEDOMETER, PRE-WIRED, CONSISTS OF: REF. 137 & 138

1шт.

137

CABLE, SPEEDOMETER LIGHT TO SPEEDOMETER CONN, RED

1шт.

138

CABLE, SPEEDOMETER LIGHT TO EARTH, BLACK

1шт.

139

TRANSMITTER, HEAT INDICATOR, SEE INSTRUMENT PANEL & GAUGES

1шт.

140

HORN, 12V, SEE HORN

1шт.

141

MOTOR, STARTER 12V, SEE STARTER MOTOR

1шт.

142

BATTERY, 12V

1шт.

143

WIPER, WINDSCREEN

1шт.

144

GENERATOR, 12V, SEE GENERATOR AND CONNECTIONS

1шт.

145

REGULATOR, 12V, SEE GENERATOR AND CONNECTIONS

1шт.

146

SWITCH, BRAKE LIGHT, SEE BRAKE LIGHT

1шт.

147

SWITCH, FLASHER, SEE DIRECTION INDICATOR

1шт.

148

GAUGE, FUEL, SEE INSTRUMENT PANEL AND GAUGES

1шт.

149

INDICATOR, HEAT, SEE INSTRUMENT PANEL AND GAUGES

1шт.

150

FLASHER, 12V, SEE DIRECTION INDICATOR

1шт.

151

AMMETER, SEE INSTRUMENT PANEL AND GAUGES

1шт.

152

376855R92

SWITCH

OIL PRESSURE, HYDROSTATIC DRIVE TRACTORS, SYNCHROMESH DRIVE TRACTORS

1шт.

152

3118643R1

SWITCH

ASSY, OIL PRESSURE, OPTIONAL

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, OIL PRESSURE SWITCH

1шт.

536726R1

SPARE PART OIL PRESSURE SWITCH

1шт.

153

LIGHT, TACHOMETER, SEE INSTRUMENT PANEL AND GAUGES

1шт.

154

3117435R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

3041099R1

LAMP

PARK BRAKE, 12V, 2.2W MES

1шт.

155

LIGHTER, CIGAR, SEE ENGINE CONTROL AND SWITCHES

1шт.

156

BUTTON, HORN, SEE ENGINE CONTROL AND SWITCHES

1шт.

157

3117436R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

3041099R1

LAMP

TRANS, OIL PRESSURE WARNING, 12V, 2.2W MESS

1шт.

158

SWITCH, SAFETY START, SEE SAFETY START SWITCH

1шт.

159

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

705757R91

LAMP

PANEL, 12V, 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL, 12V, 6W MCC, OPTIONAL

1шт.

160

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

705757R91

LAMP

PANEL, 12V, 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL, 12V, 6W MCC, OPTIONAL

1шт.

161

SWITCH, LIGHT, SEE ENGINE CONTROL AND SWITCH

1шт.

162

FUSE, NO 2, 25 AMP

1шт.

163

3113048R1

FUSE

NO 1, 50 AMP

1шт.

528305R1

SPARE PART FUSE

1шт.

171700

SCREW, PAN HD TAP, 8-32 X 1/4

1шт.

164

SWITCH, KEY, SEE ENGINE CONTROL AND SWITCHS

1шт.

165

LIGHT, SPEEDOMETER, SEE INSTRUMENT PANEL AND GAUGES

1шт.

166

GAUGE, FUEL TRANSMITTER, SEE FUEL TANK SUPPORTS AND PIPING

1шт.

167

LIGHT, FLASHER WARNING LH, SEE DIRECTION INDICATOR

1шт.

168

529461R91

IGNITION SWITCH

PARK BRAKE WARNING

1шт.

534351R1

COVER

WARNING LIGHT SWITCH

1шт.

169

FUSE, AUXILIARY, SEE ENGINE CONTROL AND SWITCHES

1шт.

170

LIGHT, FLASHER WARNING RH, SEE DIRECTION INDICATOR

1шт.

171

LIGHT, SIDE LH SAFETY CAB

1шт.

172

LIGHT, SIDE LH FENDER, SEE FENDER WIRING AND LAMPS

1шт.

173

LIGHT, FLASHER LH, SEE DIRECTION INDICATOR

1шт.

174

LIGHT, FLASHER RH, SEE DIRECTION INDICATOR

1шт.

175

LIGHT, SIDE RH FENDER, SEE FENDER WIRING AND LAMPS

1шт.

176

LIGHT, SIDE RH SAFETY CAB

1шт.

177

LIGHT, STOP AND TAIL LH, SEE FENDER WIRING AND LAMPS

1шт.

178

SOCKET, POWER, SEE NUMBER PLATE W/LIGHT AND POWER SOCKET

1шт.

179

LIGHT, REGISTRATION NUMBER PLATE, 12V, 6W, SEE NUMBER PLATE W/LIGHT AND POWER SOCKET

1шт.

180

LIGHT, PLOUGH, 12V, SEE PLOUGH LIGHT

1шт.

181

LIGHT, STOP AND TAIL RH, SEE FENDER WIRING AND LAMPS

1шт.

182

LIGHT, HEAD LH, SEE HEADLIGHT

1шт.

183

LIGHT, HEAD RH, SEE HEADLIGHT

1шт.

539309R1

SPARE PART CLIP, OIL PRESSURE INDICATOR TUBE

2шт.

708113R1

CLIP

TEMPERATURE SENDING UNIT CABLE

1шт.

708114R1

SPARE PART MAIN CABLE HARNESS

2шт.

537024R1

CLIP

MAIN CABLE

1шт.

708115R1

PLATE ASSY.

CLIP, MAIN CABLE

1шт.

706843R1

CABLE STRAP/Retired CLIP, PANEL CABLE HARNESS

2шт.

3070930R1

CLIP

MAIN CABLE HARNESS

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

For use w/clip 3070930R1

2шт.

3067819R1

SPARE PART MAIN CABLE HARNESS

1шт.

537025R1

CLIP

PANEL HARNESS

1шт.

366460R1

CABLE CLIP

FUEL SENDER

1шт.

3067818R1

CLIP, FENDER HARNESS

2шт.

3025270R1

STRAP, PLASTIC CABLE

1шт.

894253H1

STRAP

CABLE

4шт.

3066369R1

STUD

NYLON

4шт.

3113044R1

WIRE, THERMOSTART FLYING

1шт.

3113049R1

ADAPTER

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY

1шт.

705903R1

SPARE PART 3 WAY

2шт.

3113044R1

WIRE, THERMOSTART FLYING, FOR USE W/ HARNESS 528304R2

1шт.

3113092R91

SERVICE KIT

PACKAGE, MAIN, PANEL AND SIDE AND TAIL LIGHT, CONSISTS OF ALL PARTS LISTED BELOW

1шт.

3113088R1

HARNESS

PANEL

1шт.

3113089R1

WIRE HARNESS

MAIN CABLE

1шт.

3113090R1

WIRE HARNESS

SIDE AND TAIL LIGHT

1шт.

306132C1

CABLE TIE,14.5" L

CABLE STRAP LOCK, 14"

2шт.
