Запчасти Case IH 2400 (13-55) - CAB, INSULATION, DELUXE, MACHINES NOT FITTED W/ISO MOUNTED CAB, BOSCH INJECTION (05) - SUPERSTRUCTURE

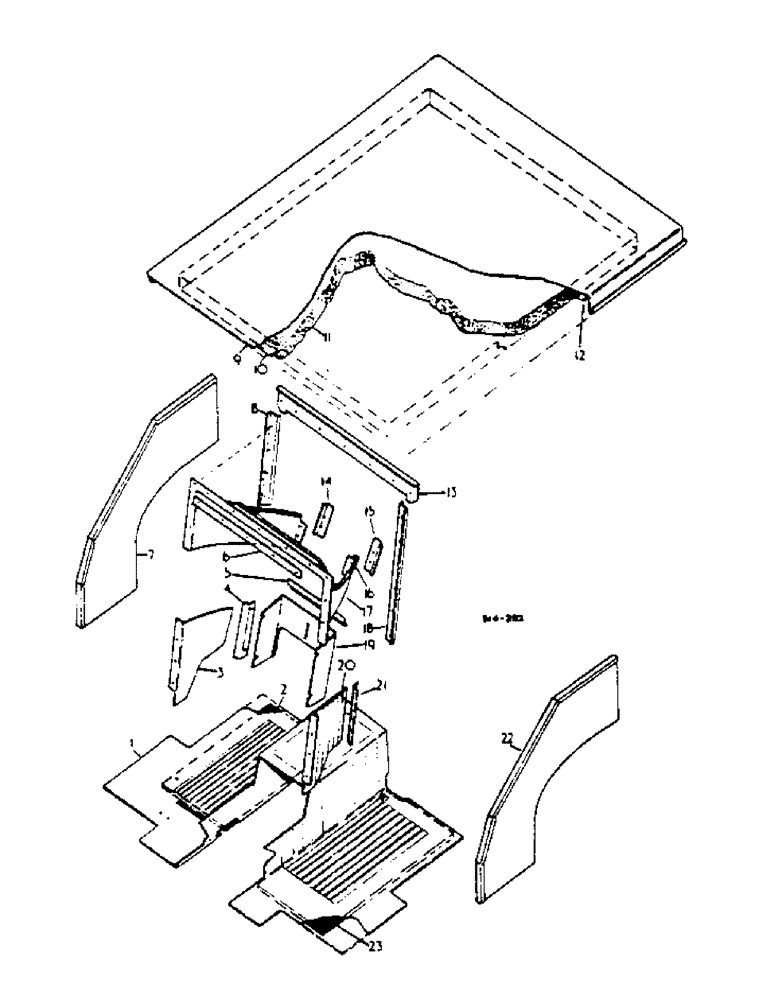

Схема запчастей Case IH 2400 - (13-55) - CAB, INSULATION, DELUXE, MACHINES NOT FITTED W/ISO MOUNTED CAB, BOSCH INJECTION (05) - SUPERSTRUCTURE
6
10
22
7
16
21
11
15
8
1
4
18
2
23
12
14
19
5
17
3
20
9
15

Артикул

Название

Примечание

Количество

3116461R91

KIT, SAFETY CAB CLADDING, NOT SERVICED, CONSISTS OF PARTS MARKED FOR 3116461R91

1шт.

KIT, SAFETY CAB CLADDING, FACTORY APPLICATION, CAV INJECTION, CONSISTS OF PARTS MARKED FOR THIS KIT'S DESCRIPTION

1шт.

3116462R91

KIT SAFETY CAB CLADDING, NOT SERVICED, CONSISTS OF PARTS MARKED FOR 3116462R91

1шт.

1

3112607R2

MAT

FLOOR CPTE

1шт.

2

3116300R1

INSULATOR

FLOOR PLATE R.H.

1шт.

3

3116466R1

INSULATOR

LOWER REAR PANEL R.H.

1шт.

4

3116469R1

ANGLE

RETAINING R.H.

1шт.

19297R1

SPARE PART 1/4 REG LOCK CAD

2шт.

3116385R1

SCREW

1/4 X 1-1/8 CROSS REC PAN HD MACH

2шт.

5

3116295R1

RETAINER

INSULATOR

1шт.

6

3116493R1

PLATE

INSULATOR RETAINING

1шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

5шт.

7

3116280R1

PANEL, SIDE

INSULATOR ASSY, FENDER R.H.

1шт.

8

3116492R1

RETAINER

INSULATOR SIDE R.H.

1шт.

3116384R1

SELF-TAP SCREW

NO 10 X 1 HEX WASHER HD

6шт.

9

16277R91

PANEL, CPTE. ROOF, FOR CAV INJECTION FACTORY APPLICATION SAFETY CAB CLADDING KIT

1шт.

10

3113576R1

RUBBER SEAL

ROOF, FOR CAV INJECTION FACTORY APPLICATION SAFETY CAB CLADDING KIT

2шт.

11

3116278R1

LINING

INSULATOR, FOR CAV INJECTION FACTORY APPLICATION SAFETY CAB CLADDING KIT

1шт.

12

3113577R1

RUBBER SEAL

ROOF SIDE, FOR CAV INJECTION FACTORY APPLICATION SAFETY CAB CLADDING KIT

2шт.

13

3116490R1

RETAINER

INSULATOR

1шт.

3116384R1

SELF-TAP SCREW

NO 10 X 1 HEX WASHER HD

7шт.

14

3116289R1

PLATE

RETAINING R.H.

1шт.

24405R1

SCREW

NO 12-14 X 1 PAN HD CROSS RECESS TAP TYPE AB

2шт.

15

3116288R1

PLATE

RETAINING L.H.

1шт.

24405R1

SCREW

NO 12-14 X 1 PAN HD CROSS RECESS TAP TYPE AB

2шт.

16

3116287R1

STRIP

MOULDING INSULATOR

1шт.

17

3116286R1

PANEL

INSULATOR ASSY INSTRUMENT

1шт.

18

3116491R1

RETAINER, INSULATOR SIDE L.H.

1шт.

3116384R1

SELF-TAP SCREW

NO 10 X 1 HEX WASHER HD

6шт.

19

3116467R1

INSULATOR

STEERING SUPPORT

1шт.

20

3116465R1

INSULATOR

LOWER REAR PANEL L.H.

1шт.

21

3116463R1

ANGLE RETAINING L.H.

1шт.

19297R1

SPARE PART 1/4 REG LOCK CAD

2шт.

3116385R1

SCREW

1/4 X 1-1/8 CROSS REC PAN HD MACH

2шт.

22

3116279R1

PANEL, SIDE

INSULATOR ASSY, FENDER L.H.

1шт.

23

3116299R1

PANEL, SIDE

INSULATOR FLOOR PLATE L.H.

1шт.

3116274R91

TOP, FRAME AND FENDERS, FOR CAV INJECTION FACTORY APPLICATION SAFETY CAB CLADDING KIT

1шт.

1092861R1

PRODUCT GRAPHIC

FUEL CONTROL, FOR 3116461R91 AND FOR CAV INJECTION FACTORY APPLICATION SAFETY CAB CLADDING KIT

1шт.

1092869R1

DECAL

PRODUCT-GRAPHIC, FUEL CONTROL, FOR 3116462R91

1шт.

Выбрано товаров: 39
