Запчасти Case IH 2400 (13-52) - CAB INSULATION STEERING SUPPORT, MACHINES FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE

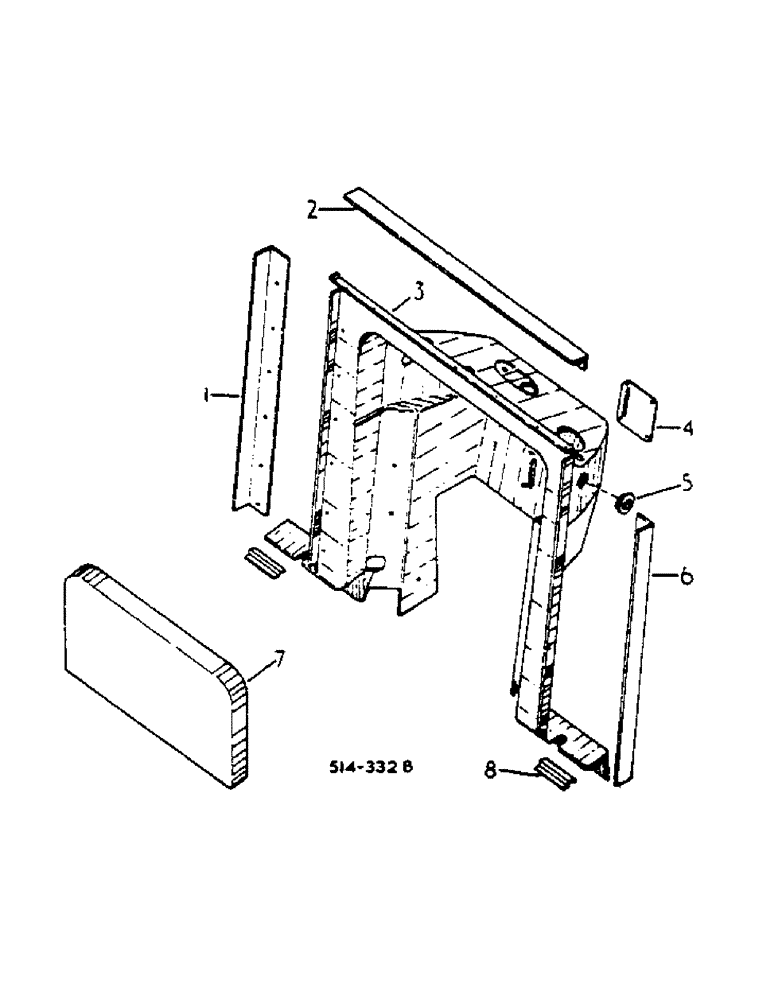

Схема запчастей Case IH 2400 - (13-52) - CAB INSULATION STEERING SUPPORT, MACHINES FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE
1
5
4
8
3
7
2
6

Артикул

Название

Примечание

Количество

1

3118447R1

RETAINER

INSULATOR SIDE R.H.

1шт.

2

3118445R1

RETAINER

INSULATOR TOP

1шт.

3

3118441R1

INSULATOR

STEERING SUPPORT, SYNCHROMESH DRIVE TRACTORS

1шт.

3

3121140R1

INSULATOR, STEERING SUPPORT, SYNCHROMESH DRIVE TRACTORS, AUSTRIAN MARKET

1шт.

4

3116845R1

PLATE

SPARE PART

1шт.

451625

SCREW

NO. 10-12 X 5/8 HEX HD TAP

4шт.

5

3118444R1

WASHER

STRG. SUPPORT INSULATOR RETAINER

2шт.

6

3118446R1

RETAINER

INSULATOR SIDE L.H.

1шт.

7

3118459R1

INSULATOR

BATTERY TRAY

1шт.

8

3118842R1

PLATE

SPARE PART RETAINER

2шт.

Выбрано товаров: 10
