Запчасти Case IH 2400 (13-50) - CAB, ROOF, QUICK RELEASE (05) - SUPERSTRUCTURE

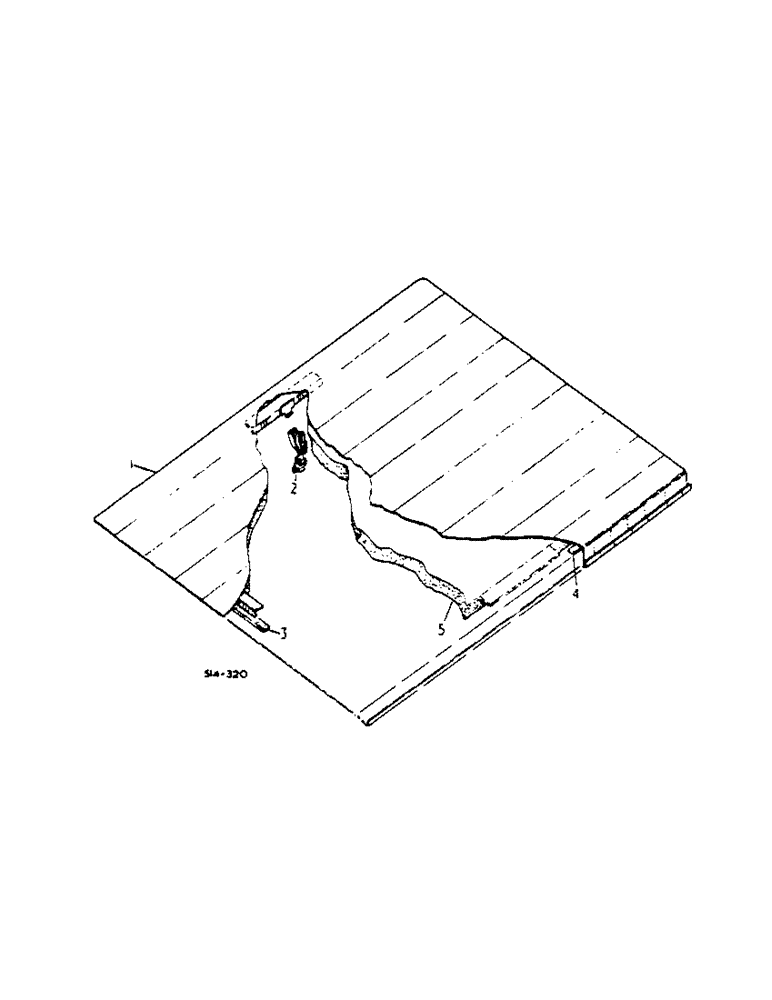

Схема запчастей Case IH 2400 - (13-50) - CAB, ROOF, QUICK RELEASE (05) - SUPERSTRUCTURE
5
3
1
2
4

Артикул

Название

Примечание

Количество

1

3116277R91

ROOF

PANEL, CPTE., MACHINE FITTED W/ISO MOUNTED CAB

1шт.

1

3113575R91

ROOF

PANEL, CPTE, MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

2

3113251R1

CLIP

CATCH, CAB ROOF

2шт.

3994R1

SCREW, 10-16 X 5/8 STD TAP, MACHINE NOT FITTED W/ISO MOUNTED CAB

6шт.

451625

SCREW

NO. 10-17 X 5/8 C-Z, MACHINE FITTED W/ISO MOUNTED CAB

6шт.

3

3118673R1

LINING

SEAL, ROOF, BULK LENGTH 30 FT

1шт.

4

SEAL, ROOF SIDE

1шт.

5

3113578R1

FOAM INSULATION

MACHINE NOT FITTED W/ISO MOUNTED CAB

1шт.

5

3116278R1

LINING

INSULATOR, MACHINE FITTED W/ISO MOUNTED CAB

1шт.

Выбрано товаров: 9
