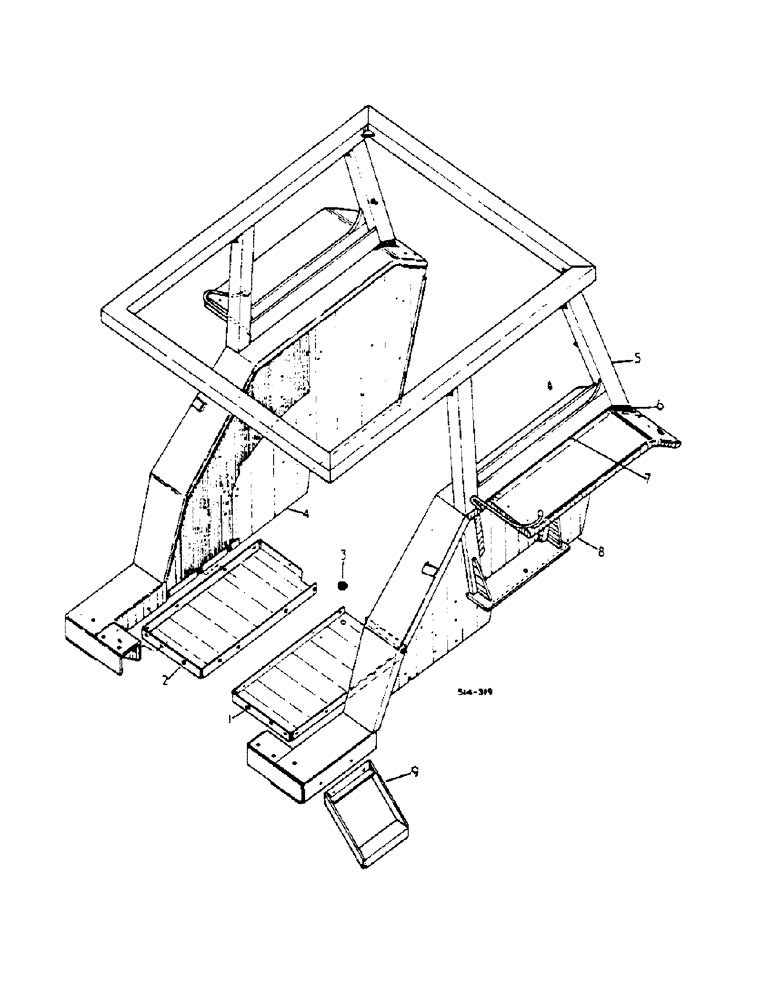

Запчасти Case IH 2400 (13-37) - SAFETY FRAME, MACHINES FITTED W/ISO MOUNTED CAB OR SAFETY FRAME (05) - SUPERSTRUCTURE

1

3116149R2

PLATFORM

CPTE. L.H.

1шт.

3112992R1

NUT

INSERT

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

6шт.

120394

WASHER,3/8", SAE

.406 X .812 X .051

6шт.

2

3116150R2

PLATFORM

CPTE. R.H.

1шт.

3112992R1

NUT

INSERT

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

6шт.

120394

WASHER,3/8", SAE

.406 X .812 X .051

6шт.

3

3116180R1

GROMMET

PLATFORM L.H.

1шт.

4

3118435R1

FENDER

FRAME ASSY, R.H., TRACTORS FITTED W/CAB

1шт.

4

3116117R1

FENDER AND FRAME ASSY, RH, TRACTORs FITTED W/SAFETY FRAME

1шт.

5

3118415R2

FRAME

ASSY, SAFETY TOP

1шт.

3121204R1

PLUG

PLASTIC REDCAP

2шт.

3112951R1

NUT

INSERT

13шт.

6

3113328R1

INSERT

2шт.

7

3112388R1

SEAL

SEAL, WING PIPING

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4-10 X 2-1/4 HEX HD CAP

4шт.

220081

NUT

3/4-10 HEX

4шт.

8

3118434R1

FENDER

FRAME ASSY, CPTE. L.H., TRACTORS FITTED W/CAB

1шт.

8

3116116R1

FENDER AND FRAME ASSY, RH, TRACTORs FITTED W/SAFETY FRAME

1шт.

9

3116153R1

STEP

ASSY, FOOT

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.
