Запчасти Case IH 2400 (13-12) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE

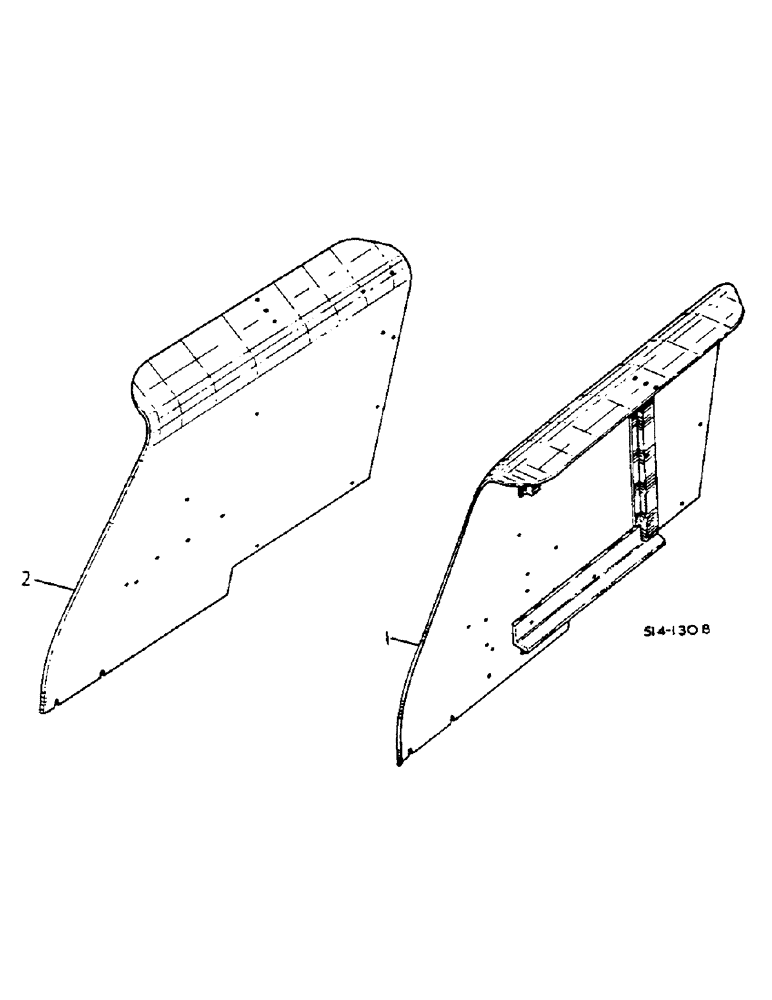

Схема запчастей Case IH 2400 - (13-12) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE
1
2

Артикул

Название

Примечание

Количество

1

538638R1

SPARE PART

FENDER, LH W/PRODUCT GRAPHIC, W/O SIDE AND TAIL LIGHT, ORDER FENDER 538639R1

1шт.

1

538639R1

SPARE PART

FENDER, LH W/PRODUCT GRAPHIC, W/SIDE AND TAIL LIGHT

1шт.

2

529991R1

SPARE PART

FENDER ASSY, RH, W/O SIDE AND TAIL LIGHT, ORDER FENDER 530002R1

1шт.

2

530002R1

FENDER ASSY.

RH, W/SIDE AND TAIL LIGHT

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

6шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 X 1-3/4, TO REAR TOP COVER

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

To transmission shift control housing or draft control housing

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 HEX HD CAP

4шт.

116121

LOCK WASHER,1/2"

To axle carrier

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

To parking brake bracket

3шт.

534425R91

PLATE, FENDER MOUNTING LOWER, UP TO 454/000564

4шт.

Выбрано товаров: 14
