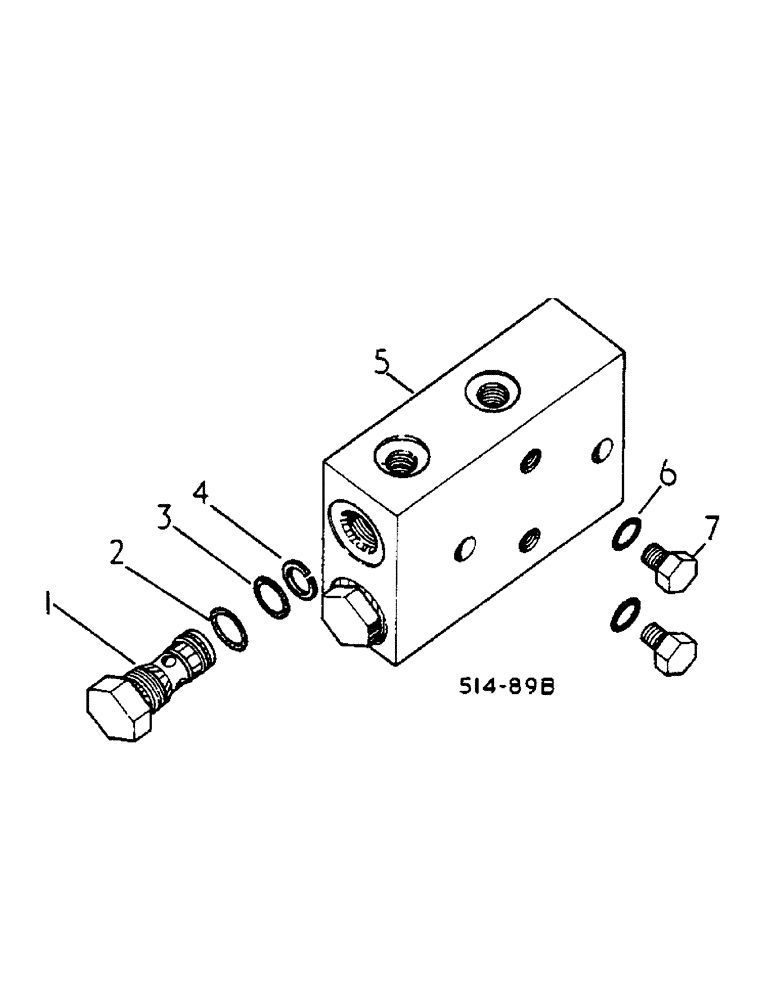

Запчасти Case IH 2400 (07-94) - MANIFOLD CHECK VALVE (04) - Drive Train

1

535251R1

VALVE

ASSY CHECK

2шт.

2

570823R1

O-RING 1/2 OD TUBE

2шт.

3

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16

2шт.

4

398699R1

BACK-UP RING

WASHER

2шт.

5

535250R2

BLOCK

CHECK VALVE

1шт.

6

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

2шт.

7

9410356

PLUG

7/16-20 O-RING BOSS

2шт.
