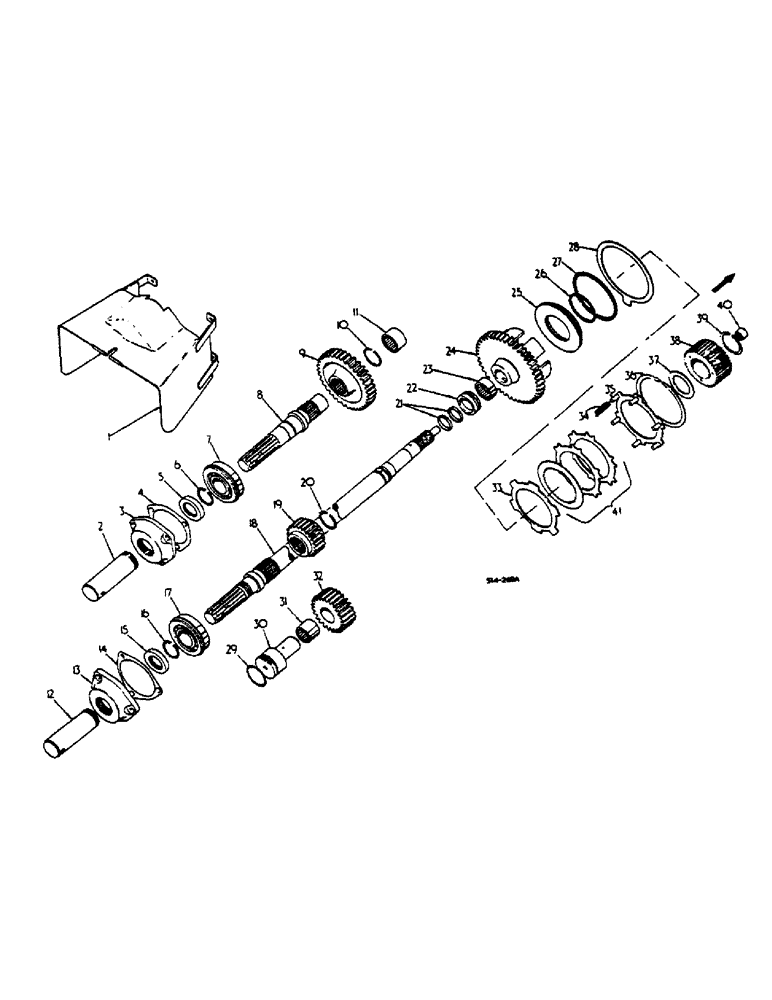

Запчасти Case IH 2400 (07-56) - INDEPENDENT POWER TAKE OFF, DUAL SPEED, 454/008078 UP, 2400/000692 UP (04) - Drive Train

INDEPENDENT POWER TAKE OFF, 614 AND 1004 RPM, 6 SPLINE TOP AND 6 SPLINE BOTTOM SHAFT WITH PROVISION FOR SIDE PTO, FOR AUSTRIAN, JAPANESE AND SWISS MARKETS, 454/008078 UP, 2400/000692 UP

1шт.

INDEPENDENT POWER TAKE OFF, 614 AND 1004 RPM, 6 SPLINE TOP SHAFT AND 21 SPLINE BOTTOM SHAFT WITH PROVISION FOR SIDE PTO, 454/008078 UP, 2400/000692 UP

1шт.

1

401734R1

GUARD ASSY.

SHIELD, IPTO SAFETY

1шт.

1

528481R1

SHIELD

ASSY, IPTO SAFETY, TRACTORS WITH HAND OPERATED DRUM BRAKE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

3

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE IPTO SHAFT BRG

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

172082R91

BEARING, SHAFT BALL, OPTIONAL

2шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT, OPTIONAL

2шт.

7

533615R1

BEARING

SHAFT BALL, OPTIONAL

2шт.

7

338962R1

BALL BEARING

SHAFT, OPTIONAL

2шт.

8

3113017R1

SHAFT

UPPER OUTPUT

1шт.

9

404237R1

PINION

GEAR, UPPER DRIVEN, 36T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

SHAFT NEEDLE, OPTIONAL

1шт.

11

528103R91

BEARING, NEEDLE

SHAFT

1шт.

12

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

13

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE IPTO SHAFT BRG

1шт.

14

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

16

607186R1

SNAP RING,#156, Ext

Brg

1шт.

17

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

17

533615R1

BEARING

SHAFT BALL

1шт.

17

538962R1

BEARING SHAFT BALL, OPTIONAL

1шт.

18

66485C1

SHAFT ASSY.

1000 RPM, 6 SPLINE

1шт.

18

66180C1

SHAFT

ASSY, 1000 RPM, 21 SPLINE

1шт.

19

404233R1

PINION

GEAR, LOWER SHAFT DRIVE, 22T

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

21

166972R1

RING

SHAFT SEALING

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

LOWER SHAFT

1шт.

24

66068C1

GEAR

CLUTCH CUP, 44T,WITH PROVISION FOR SIDE PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

CLUTCH

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL, INNER

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL, OUTER

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

29

379961

O-RING, 2-1/16 X 2-1/4 X 3/32

1шт.

30

401726R1

SHAFT

IPTO IDLER

1шт.

31

570450R1

BEARING

IDLER SHAFT NEEDLE

1шт.

31

528105R91

BEARING, NEEDLE

IDLER SHAFT, OPTIONAL

1шт.

32

401727R1

PINION

GEAR, IDLER, 24T

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

34

66182C1

SPRING

PISTON RETURN

6шт.

35

66186C91

PLATE ASSY.

CLUTCH BACKING

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 1 DOWEL

6шт.

36

401720R1

CIRCLIP

BACKING PLATE

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

40

538467R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

40

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT, OPTIONAL

1шт.

41

66193C91

PACKAGE

SERVICE, CLUTCH PLATE, CONSISTS OF (5) DISC, (8) PLATE, (1) O-RING 401723R1, (1) O-RING 401724R1, (6) SPRING 66182C1

1шт.

1092812R1

PRODUCT GRAPHIC

IPTO SPEED, SYNCHROMESH DRIVE TRACTORS

1шт.

1092807R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED WARNING, SYNCHROMESH DRIVE TRACTORS

1шт.

1092813R1

SPARE PART IPTO SPEED, HYDROSTATIC DRIVE TRACTORS

1шт.
