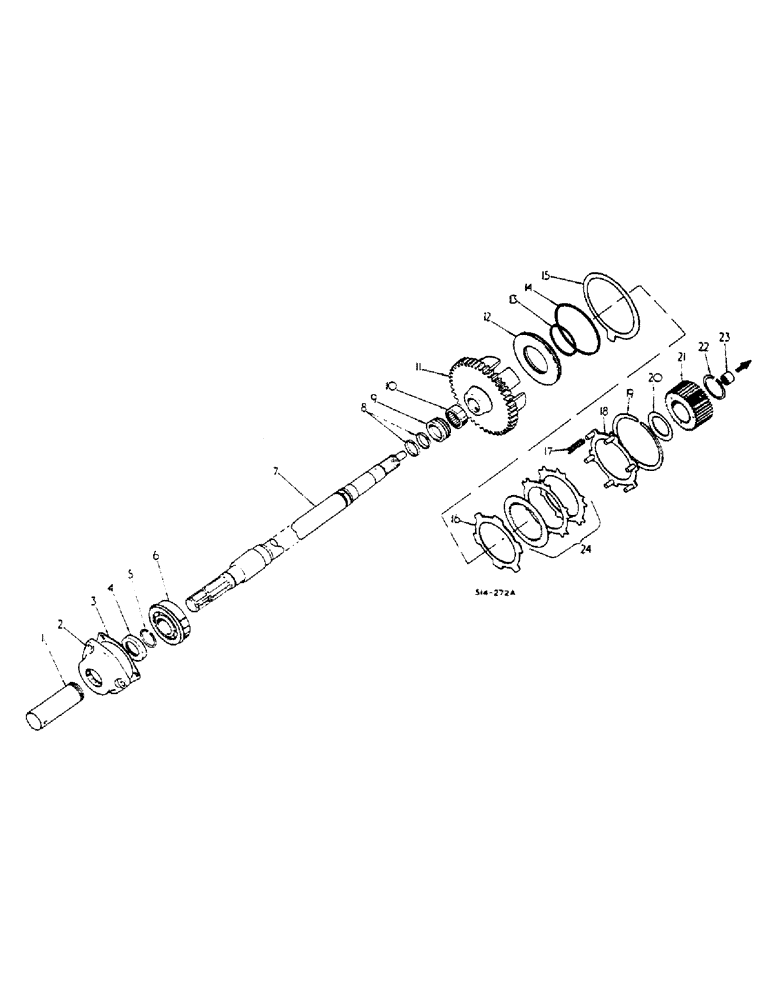

Запчасти Case IH 2400 (07-51) - INDEPENDENT POWER TAKE OFF, SINGLE (04) - Drive Train

INDEPENDENT POWER TAKE OFF, 623 RPM, LOWER OUTPUT SHAFT, NOT SUITABLE FOR USE WITH SIDE PTO ATTACHMENT, SYNCHROMESH DRIVE TRACTORS, 454/008078 UP, 2400/000692 UP

1шт.

CONSISTS OF: REF. 1-5 P/N 607186R1, 6, 7 P/N 66456C1, 8-11 P/N 66068C1, 12-16 P/N 66185C1, 17 P/N 66182C1, 18 P/N 66186C91, 19-21 P/N 66183C2, 22-24 P/N 66193C91, AND P/N'S 1092814R1, 401734R1 AND 528481R1

1шт.

INDEPENDENT POWER TAKE OFF, 623 RPM, WITHOUT PROVISION FOR SIDE PTO ATTACHMENT, SYNCHROMESH DRIVE TRACTORS, UP TO 454/008077, UP TO 2400/000691

1шт.

CONSISTS OF: REF. 2-4, 5 P/N 555570R1, 6, 7 P/N 404231R1, 8-10, 11 P/N 406599R1, 12-15, 16 P/N 401718R1, 17 P/N 401715R1, 18 P/N 401714R11, 19, 20, 21 P/N 401710R1, 22, 23, 24 P/N 534935R92 AND P/N'S 537231R1, 401731R1, 528478R1 AND 301555R1

1шт.

INDEPENDENT POWER TAKE OFF, 1000 RPM, FOR AIR COMPRESSOR WITH PROVISION FOR SIDE PTO ATTACHMENT, 454/008078 UP, 2400/000692 UP

1шт.

CONSISTS OF: REF. 2-4, 5 P/N 607186R1, 6, 7 P/N 66458C1, 8-11 P/N 66068C1, 12-16 P/N 66185C1, 17 P/N 66182C1, 18 P/N 66186C91, 19-21 P/N 66183C2, 22-24 P/N 66193C91 AND P/N'S 1092811R1, 1092807R1 AND 1092808R1

1шт.

INDEPENDENT POWER TAKE OFF, BELT PULLEY DRIVE FOR USE WITH BELT PULLEY ATTACHMENT, 454/008078 UP, 2400/000692 UP, CONSISTS OF: REF. 1, 2, 4, 7 P/N 66180C1 AND P/N 1092807R1

1шт.

1

406808R1

TUBE

ASSY, IPTO SHAFT PROTECTION

1шт.

2

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE, IPTO SHAFT BRG

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

3

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

4

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

5

607186R1

SNAP RING,#156, Ext

Brg

1шт.

5

555570R1

SNAP RING

BRG RETAINER

1шт.

6

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

6

ST36

BALL BEARING

SHAFT

1шт.

6

533615R91

BALL BEARING

SHAFT

1шт.

6

538962R1

BEARING, SHAFT BALL, OPTIONAL

1шт.

7

66456C1

SHAFT

ASSY, 623 RPM OUTPUT

1шт.

7

404231R1

SHAFT

ASSY, 623 RPM OUTPUT

1шт.

7

66458C1

SHAFT ASSY.

COMPRESSER DRIVE

1шт.

7

66180C1

SHAFT

ASSY, BELT PULLEY DRIVE

1шт.

8

166972R1

RING

SHAFT SEALING

2шт.

9

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

10

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

623 RPM SHAFT

1шт.

11

66068C1

GEAR

CLUTCH CUP, 44T

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

11

406599R1

GEAR

CLUTCH CUP

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

12

401722R1

PISTON

CLUTCH

1шт.

13

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL, INNER

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL, OUTER

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

16

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

16

401718R1

PLATE

PISTON RETURN

1шт.

17

66182C1

SPRING

PISTON RETURN

6шт.

17

401715R1

SPRING

PISTON RETURN

4шт.

18

401714R11

PLATE

ASSY, CLUTCH BACKING

1шт.

20154R1

DOWEL,5/16" x 7/8"

PIN, 5/16 X 7/8

4шт.

18

66186C91

PLATE ASSY.

CLUTCH BACKING

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 1 DOWEL

6шт.

19

401720R1

CIRCLIP

BACKING PLATE

1шт.

20

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

21

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

21

401710R1

HUB

ASSY, CLUTCH

1шт.

22

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

23

538467R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

23

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT, OPTIONAL

1шт.

24

66193C91

PACKAGE

SERVICE, IPTO CLUTCH PLATE, CONSISTS OF (5) DISC, (8) PLATE, (1) O-RING 401723R1, (1) O-RING 401724R1, (6) SPRING 66182C1

1шт.

24

534935R92

KIT

PACKAGE SERVICE, 623 RPM/IPTO CLUTCH PLATE, CONSISTS OF (5) PLATE, (4) PLATE, (1) O-RING 401723R1, (1) O-RING 401724R1, (4) SPRING 401715R1

1шт.

1092811R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED, SYNCHROMESH DRIVE TRACTORS

1шт.

1092807R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED WARNING, SYNCHROMESH DRIVE TRACTORS

1шт.

1092808R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED, HYDROSTATIC DRIVE TRACTORS

1шт.

1092814R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED, SYNCHROMESH DRIVE TRACTORS

1шт.

537231R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED, FOR SYNCHROMESH DRIVE TRACTORS

1шт.

401731R1

SHIELD

ASSY, IPTO SAFETY

1шт.

528478R1

SPARE PART ASSY, IPTO SAFETY, TRACTORS WITH HAND OPERATED DRUM BRAKE

1шт.

401734R1

GUARD ASSY.

SHIELD, IPTO SAFETY

1шт.

528481R1

SHIELD

ASSY, IPTO SAFETY, TRACTORS WITH HAND OPERATED DRUM BRAKE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

301555R1

SPARE PART PLUG, 2-1/2

1шт.
