Запчасти Case IH 2400 (07-46) - REAR AXLE CARRIER AND CONNECTIONS (04) - Drive Train

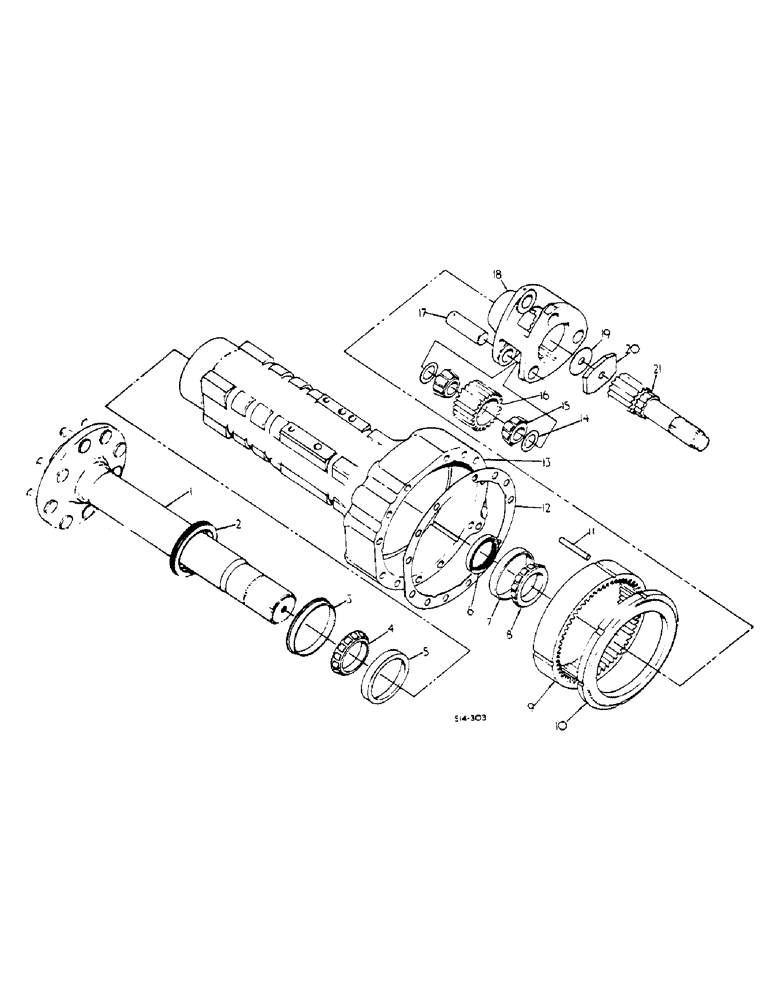

Схема запчастей Case IH 2400 - (07-46) - REAR AXLE CARRIER AND CONNECTIONS (04) - Drive Train
8
16
19
9
21
13
12
17
7
15
14
2
10
5
20
18
6
1
11
4
3

Артикул

Название

Примечание

Количество

1

404340R13

SPARE PART

AXLE ASSY REAR

2шт.

539276R1

BOLT (SPREADER)

REAR WHEEL

16шт.

3047575R2

NUT,Wheel, 5/8"-18

REAR WHEEL

16шт.

1

528439R11

SPARE PART

AXLE ASSY, REAR, TRACTORS W/HAND OPERATED DRUM BRAKE

2шт.

528440R1

BOLT

REAR WHEEL

16шт.

NLS

NO LONGER SERVICED

5/16-18 X 1 SLT-F-HD MACH

4шт.

2

105470C1

OIL SEAL

REAR AXLE OUTER

2шт.

3

399754R1

SLEEVE

SLEEVE, WEAR

2шт.

4

ST2001A

BEARING ASSY,2.688" ID x 4.3317" OD x 0.88"

ASSY, REAR AXLE OUTER, OPTIONAL W/399757R91

2шт.

4

399757R91

BEARING

ASSY, REAR AXLE OUTER CONE, OPTIONAL W/ST2001A

2шт.

5

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

REAR AXLE OUTER CUP, OPTIONAL W/94366R1

2шт.

5

94366R1

BEARING CUP

REAR AXLE OUTER, OPTIONAL W/13390D

2шт.

6

380200R91

SEAL

REAR AXLE INNER OIL, OPTIONAL W/530094R91

2шт.

6

530094R91

SEAL

REAR AXLE INNER OIL, OPTIONAL W/380200R91

2шт.

7

29214H

BEARING CUP,110mm OD x 18.82mm W

REAR AXLE INNER, OPTIONAL W/94366R1

2шт.

7

94366R1

BEARING CUP

REAR AXLE INNER, OPTIONAL W/29214H

2шт.

8

298197R91

BEARING ASSY,63.5 mm ID x 21.996 mm

ASSY, REAR AXLE INNER CONE, OPTIONAL W/298198R91

2шт.

8

298198R91

BEARING

ASSY, REAR AXLE INNER CONE, OPTIONAL W/298197R91

2шт.

9

535316R1

GEAR, RING

RING, GEAR 66T

2шт.

10

114620C1

RING,260mm OD

BRAKE OUTER DISC

2шт.

11

529685R1

DOWEL

3/8 X 2-1/4 DOWEL

6шт.

12

399762R3

GASKET

REAR AXLE CARRIER

2шт.

13

399758R1

AXLE CARRIER

REAR LH

1шт.

13

528442R1

SPARE PART

CARRIER, REAR AXLE LH, TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

13

399761R1

AXLE CARRIER

REAR RH

1шт.

13

528443R1

AXLE CARRIER

REAR RH, TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 X 4 HEX-HD CAP, UP TO 10578, Course Threads

22шт.

233444

CHANNEL

SPARE PART SCREW, 5/8-11 X 4 HEX HD, 105729 UP

22шт.

14

65420C1

SHIM KIT

PACKAGE SERVICE, PLANET GEAR

1шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

ASSY, PLANET GEAR

12шт.

16

535909R91

GEAR WHEEL

PACKAGE SERVICE, PLANET, CONSISTS OF (3) GEAR

2шт.

17

399788R1

PIN

PLANET SHAFT

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

404339R2

NO LONGER SERVICED

CARRIER, PLANET GEAR

2шт.

19

65422C1

SHIM KIT

PACKAGE, REAR AXLE RETAINER

1шт.

20

399748R1

SPACER

PLANET CARRIER RET

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-18 X 1-1/2 HEX-HD CAP

2шт.

21

404338R1

SHAFT

PLANETARY DRIVE RH

1шт.

21

404337R1

SHAFT

PLANETARY DRIVE LH

1шт.

Выбрано товаров: 39
