Запчасти Case IH 2400 (07-40) - DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

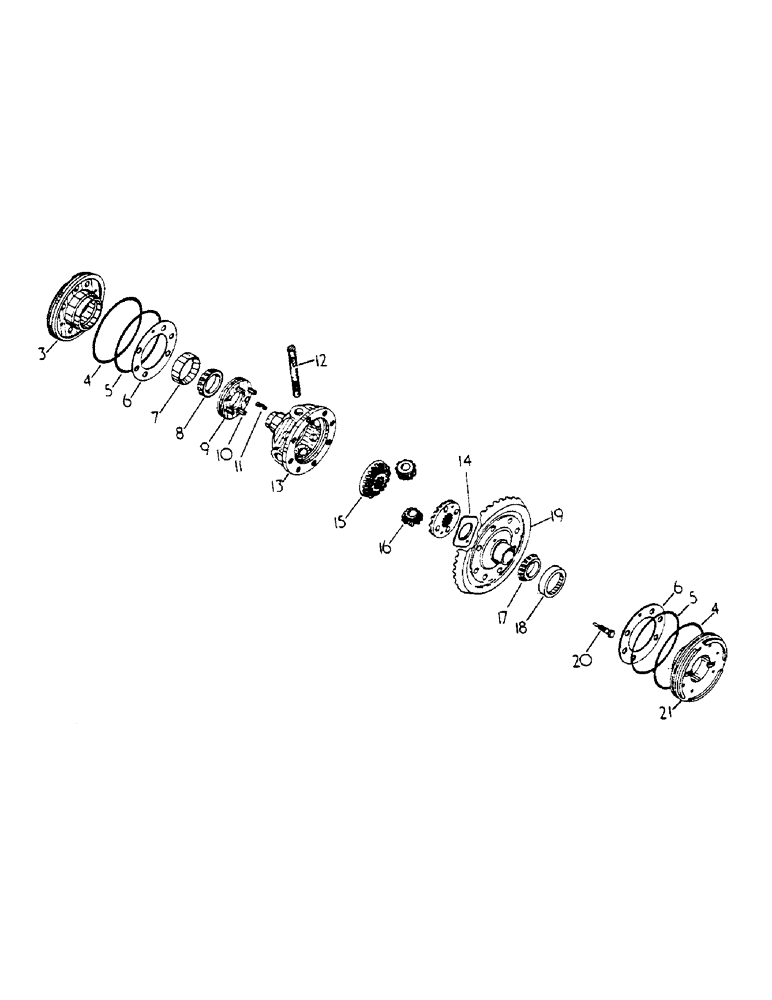

Схема запчастей Case IH 2400 - (07-40) - DIFFERENTIAL AND CONNECTIONS (04) - Drive Train
13
18
6
5
19
3
15
10
4
17
7
5
11
12
6
4
20
9
14
21
16
8

Артикул

Название

Примечание

Количество

1

NOT APPLICABLE

1шт.

2

NOT APPLICABLE

1шт.

3

399770R2

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG RH

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 X 1-1/2 HEX HD CAP 1/2-13 X 1-1/2

4шт.

4

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 X 8-1/2 X 1/8, DIFFERENTIAL BRG CARRIER

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 X 7-7/8 X 3/16, DIFFERENTIAL BRG CARRIER SEAL

1шт.

6

65419C1

BEARING CARRIER

PACKAGE, DIFFERENTIAL BRG CARRIER

1шт.

7

105497H

BEARING CUP,96.85mm OD x 15.77mm W

DIFFERENTIAL, RH

1шт.

8

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

ASSY, DIFFERENTIAL, RH

1шт.

9

399764R11

LOCKING RING

DIFFERENTIAL LOCK

1шт.

10

399765R1

PIN

COUPLING

4шт.

11

400867R1

SPRING

DIFFERENTIAL LOCK

2шт.

12

399775R1

SHAFT

DIFFERENTIAL PINION

4шт.

13

399763R1

PINION CARRIER

GEAR CARRIER DIFFERENTIAL

1шт.

14

399778R1

THRUST WASHER

DIFFERENTIAL BEVEL GEAR THRUST

1шт.

15

404336R1

PINION

GEAR, DIFFERENTIAL BEVEL 20T

2шт.

16

399776R1

PINION

GEAR, DIFFERENTIAL PINION 10T

2шт.

17

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

ASSY, DIFFERENTIAL LH

1шт.

18

105496H

BEARING CUP,97.63mm OD x 19.45mm W

ASSY, DIFFERENTIAL CUP LH

1шт.

19

65254C1

SHAFT

SET, BEVEL GEARS MATCHED, 12/53T, SYNCHROMESH 007278 UP, HYDROSTATIC 008213 UP, CONSISTS OF (1) SHAFT AND (1) GEAR

1шт.

19

529649R1

GEAR-SET

BEVEL, MATCHED, 12/53T, UP TO 007277 SYNCHROMESH, UP TO 008212 HYDROSTATIC, CONSISTS OF (1) SHAFT AND (1) GEAR

1шт.

19

65255C1

GEAR SET

BEVEL, MATCHED, 14/51T, SYNCHROMESH 007278 UP, HYDROSTATIC 008213 UP, CONSISTS OF (1) SHAFT AND (1) GEAR

1шт.

19

529650R1

GEAR-SET

BEVEL, MATCHED, 14/51T, UP TO 007277 SYNCHROMESH, UP TO 008212 HYDROSTATIC, CONSISTS OF (1) SHAFT AND (1) GEAR

1шт.

20

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT, 1/2-13 X 2-1/8 DOWEL

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 X 1/2 GRADE 8

7шт.

21

399769R2

BEARING CARRIER

CARRIER, DIFFERENTIAL BRG LH

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1-1/2 X 1/2 GRADE 8

4шт.
