Запчасти Case IH 2400 (07-32) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

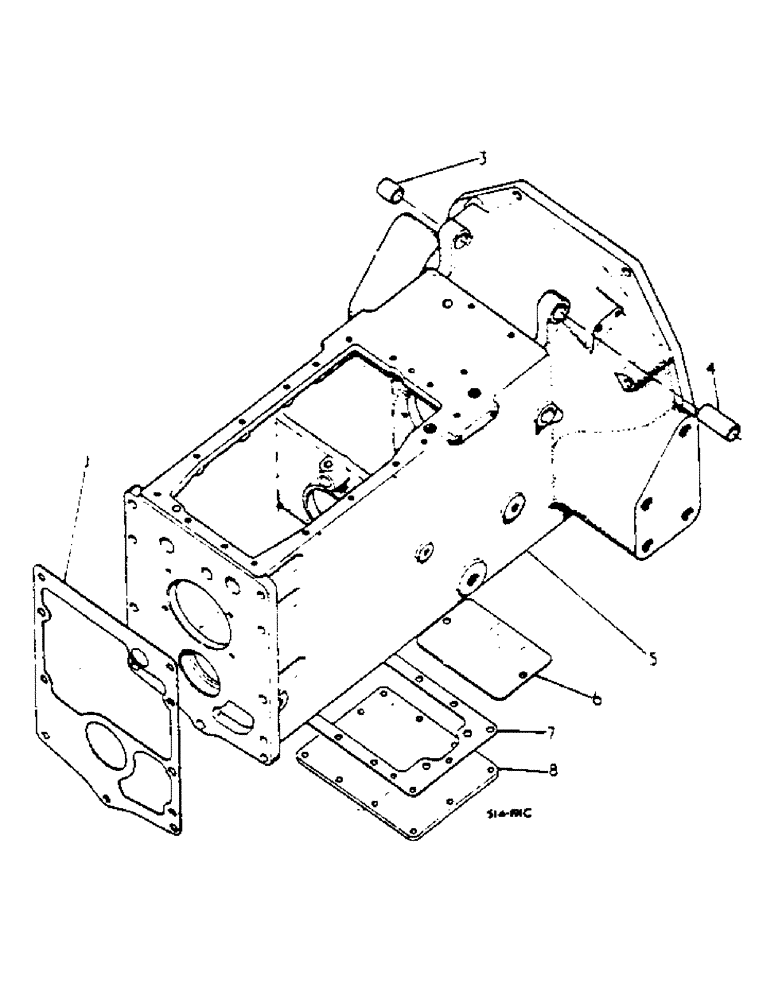

Схема запчастей Case IH 2400 - (07-32) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train
7
5
4
6
3
1
8

Артикул

Название

Примечание

Количество

1

399814R4

GASKET

CLUTCH HOUSING TO REAR FRAME

1шт.

2

NOT APPLICABLE

1шт.

3

539245R1

BUSHING

CLUTCH AND BRAKE SHAFT

1шт.

4

537099R1

NO LONGER SERVICED

BUSHING, LH BRAKE PEDAL PIVOT

1шт.

4

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

LH BRAKE PEDAL PIVOT, OPTIONAL

1шт.

5

537097R94

HOUSING

ASSY, CLUTCH, ALSO INCLUDES BEARING 399820R91 OP 527746R91 IN SPEED TRANSMISSION

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2-13 X 1-1/2 HEX HD CAP, TO REAR FRAME

9шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 HEX-HD CAP, THRU SPACER TO CRANKCASE, UP TO 454/4494, UP TO 2400/554

2шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

Thru pan & spacer to clutch hsg

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Thru spacer to clutch housing

4шт.

3113103R1

PLUG

SCREW, 1/2-13 X 1-3/4 HEX HD CAP

1шт.

327411R1

PLUG,Cup, 5/8"

5/8 CUP

1шт.

19962R1

DOWEL,3/8" x 3/4"

1шт.

20556R1

DOWEL,1/2" x 3/4"

1шт.

19904R1

DOWEL,1/2" x 1"

1/2 X 3/4 DOWEL

2шт.

9410359

PLUG

3/4-16 STR THD O-RING BOSS

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE, T.A. PRESSURE PORT PLUG

1шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2-13 X 5-1/2 HEX HD CAP, ADAPTOR PLATE TO CLUTCH HOUSING

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

2шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

Oil Pan/Spacer to Clutch Hsg

2шт.

6

399817R1

COVER

CLUTCH COMPARTMENT

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

402556R2

GASKET

CLUTCH HOUSING BOTTOM REAR COVER

1шт.

8

402182R1

COVER

CLUTCH HOUSING BOTTOM REAR

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.

Выбрано товаров: 26
