Запчасти Case IH 2400 (07-20) - MOTOR CYLINDER BLOCK (04) - Drive Train

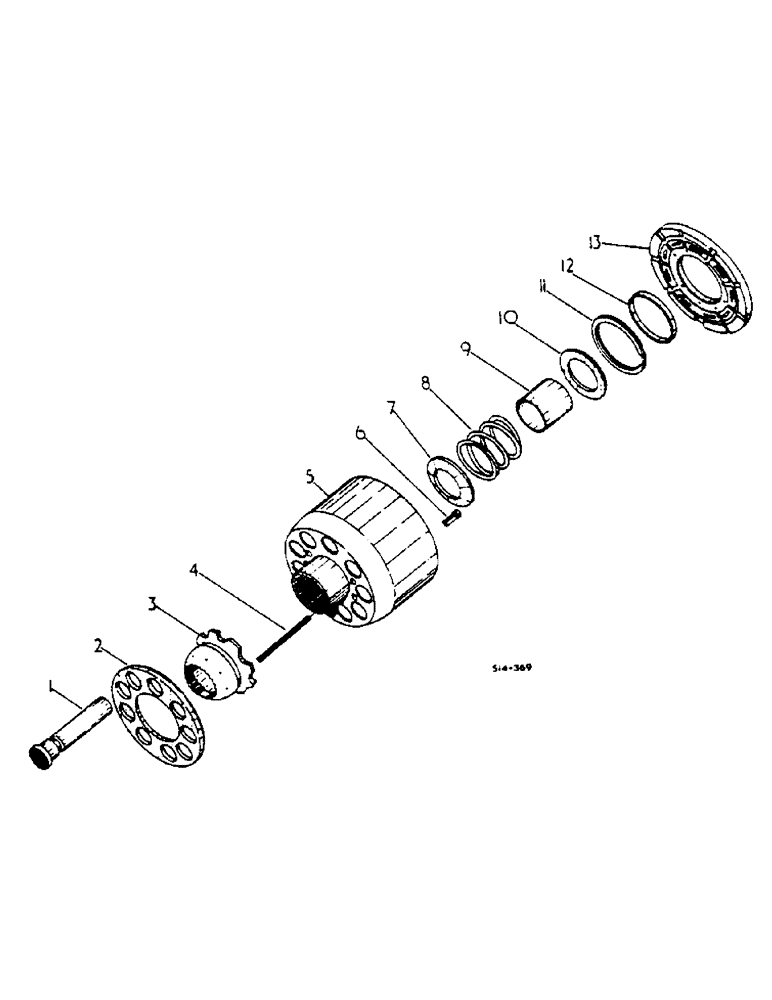

Схема запчастей Case IH 2400 - (07-20) - MOTOR CYLINDER BLOCK (04) - Drive Train
3
8
6
1
5
2
7
13
9
10
4
12
11

Артикул

Название

Примечание

Количество

1

538703R1

PISTON

ASSY

9шт.

2

405133R1

RETAINER

SLIPPER

1шт.

3

405132R1

GUIDE

SLIPPER RETAINER

1шт.

4

67822C1

SPRING

RETAINER, USE W/SIX SPRING BLOCK

6шт.

4

405135R1

SPRING

RETAINER, USE W/NINE SPRING BLOCK

9шт.

5

67821C1

BLOCK

ASSY, CYLINDER, SIX SPRING

1шт.

5

405134R1

SPARE PART ASSY, CYLINDER, NINE SPRING, ON ORDERS FOR 405134R1 FURNISH 67821C1 WITH SIX RETAINER SPRING 67822C1

1шт.

6

394196R1

NO LONGER SERVICED

PIN, PISTON CYLINDER

1шт.

7

405136R1

SEAT

SPRING

1шт.

8

532303R1

SPRING

CYLINDER BLOCK

1шт.

9

405137R1

GUIDE

SPRING

1шт.

10

405139R1

RETAINER

SPRING

1шт.

11

558383R1

SNAP RING,#250, 2.606, Int, Spiral

INTERNAL RETAINING, SPIROLOX

1шт.

12

405140R1

RING

PILOT, BEARING PLATE

1шт.

13

405141R1

PLATE

BEARING

1шт.

Выбрано товаров: 15
