Запчасти Case IH 2400 (07-18) - CENTER SECTION VALVE (04) - Drive Train

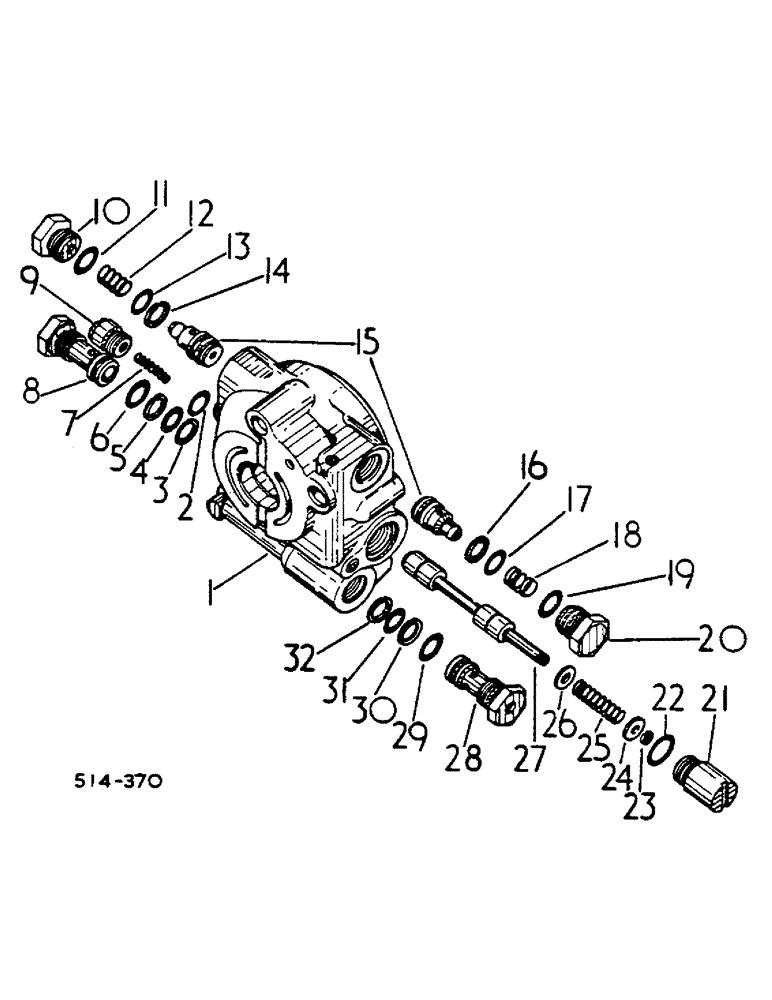

Схема запчастей Case IH 2400 - (07-18) - CENTER SECTION VALVE (04) - Drive Train
4
22
5
32
19
12
23
17
7
8
9
25
15
30
24
10
21
3
28
16
11
31
29
14
18
20
1
26
6
13
2
27

Артикул

Название

Примечание

Количество

BODY, W/VALVES CENTER SECTION

1шт.

1

400987R92

BODY

ASSY., CENTER SECTION, CONSISTS OF: (1) BODY, (2) O-RING 364885R1, (2) PLUG AND (1) EACH OF: PLUG, PLUG 533356R11, PLUG 396067R1, RING 396066R1, SPRING 531079R1, SPRING 533357R1, VALVE, WASHER 396063R2, WASHER 396064R2

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

393887R1

BACK-UP RING

CHECK VALVE

1шт.

4

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32, CHECK VALVE

1шт.

5

393887R1

BACK-UP RING

CHECK VALVE

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, CHECK VALVE

1шт.

7

533357R1

SPRING

SHUTTLE VALVE CENTERING

1шт.

8

531770R2

VALVE, PRESSURE RELI

EF ASSY.

1шт.

9

533356R11

PLUG

ASSY, SHUTTLE VALVE SPRING

1шт.

10

400988R1

PLUG

1-3/16-12 STR THD O-RING BOSS

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, CHECK VALVE

1шт.

12

70960C1

SPRING

CHECK VALVE RETENTION

1шт.

13

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32, CHECK VALVE

1шт.

14

393887R1

BACK-UP RING

CHECK VALVE

1шт.

15

528778R1

CHECK VALVE

ASSY.

2шт.

15

528345R1

CHECK VALVE

ASSY., OPTIONAL

2шт.

16

393887R1

BACK-UP RING

CHECK VALVE

1шт.

17

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32, CHECK VALVE

1шт.

18

70960C1

SPRING

CHECK VALVE RETENTION

1шт.

19

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, CHECK VALVE

1шт.

20

400988R1

PLUG

1-3/16-12 STR THD O-RING BOSS

1шт.

21

396067R1

PLUG

SHUTTLE VALVE SPRING RETAINER

1шт.

22

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

396066R1

SNAP RING,#46, .433", Ext

RING, SHUTTLE VALVE SNAP

1шт.

24

396064R2

WASHER

SHUTTLE VALVE OUTER

1шт.

25

531079R1

SPRING

SHUTTLE VALVE CENTERING

1шт.

26

396063R2

WASHER

SHUTTLE VALVE INNER

1шт.

27

406379R1

VALVE

CENTER SECTION SHUTTLE, CODE A

1шт.

27

406380R1

VALVE

CENTER SECTION SHUTTLE, CODE B

1шт.

27

406381R1

VALVE

CENTER SECTION SHUTTLE, CODE C

1шт.

27

406382R1

VALVE

CENTER SECTION SHUTTLE, CODE D

1шт.

27

406383R1

VALVE

SPARE PART CENTER SECTION SHUTTLE, CODE E

1шт.

28

531770R2

VALVE, PRESSURE RELI

EF ASSY.

1шт.

29

406384R1

VALVE

CENTER SECTION SHUTTLE, CODE F

1шт.

29

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, CHECK VALVE

1шт.

30

393887R1

BACK-UP RING

CHECK VALVE

1шт.

31

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32, CHECK VALVE

1шт.

32

393887R1

BACK-UP RING

CHECK VALVE

1шт.

393885R91

GASKET KIT

PACKAGE, RELIEF VALVE SEAL, CONSISTS OF ALL PARTS LISTED BELOW

1шт.

O-RING 20947R1

4шт.

RING 393887R1

6шт.

O-RING 297459R1

4шт.

Выбрано товаров: 43
