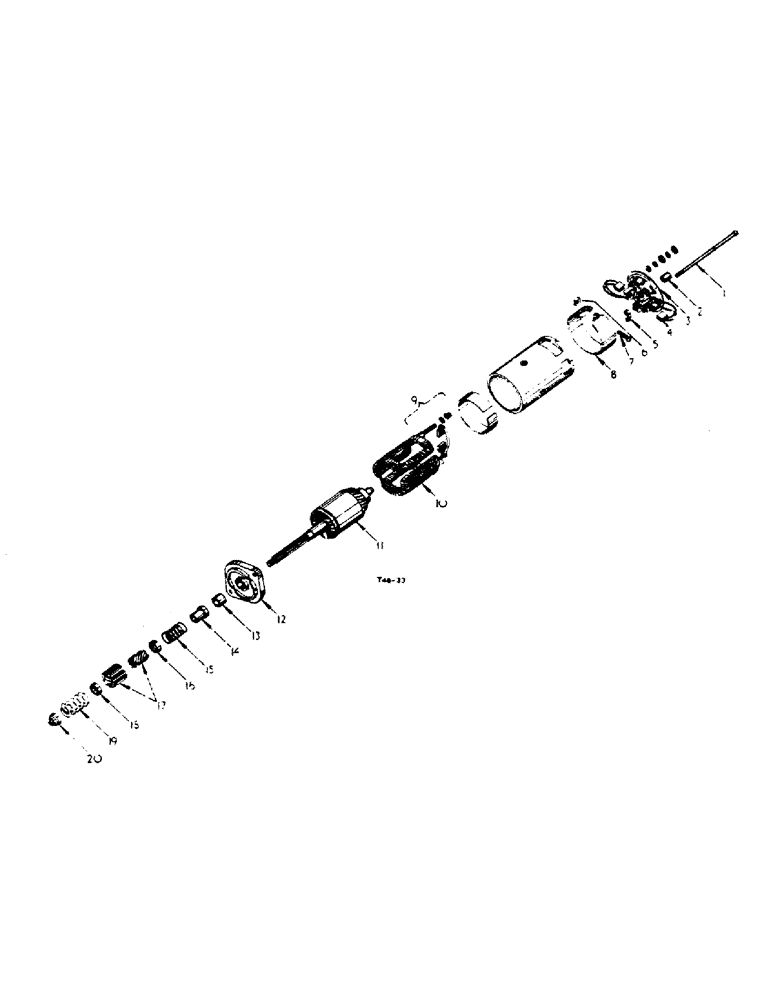

Запчасти Case IH 2350 (3-20) - STARTER MOTOR, PETROL (04) - ELECTRICAL SYSTEMS

3045322R91

STARTER MOTOR

(12 volt) (Petrol) (Lucas 25612) comprising:

1шт.

1

3047182R1

BOLT

through, fixing

2шт.

2

702006R1

BUSHING

BUSH

1шт.

3

3047108R1

BRACKET

/FRAME, commutator end

1шт.

4

700452R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

5

3106687R91

SPRING, set, brush tension

1шт.

5

700453R91

SPRING

set, brush tension Used on STARTER MOTOR (Lucas 25521)

1шт.

6

705832R1

NUT

cover fixing

1шт.

7

3106686R1

SCREW

"SCREW, cover fixing"

1шт.

7

705831R1

"SCREW, cover fixing Used on STARTER MOTOR (Lucas 25521)

1шт.

8

3047106R1

"BAND, cover"

1шт.

9

3047181R1

TERMINAL CONNECTOR

"TERMINAL, field"

1шт.

10

3047116R91

"COILS, field set"

1шт.

11

3114160R91

ARMATURE

1шт.

11

3047115R91

ARMATURE Used on STARTER MOTOR (Lucas 25521)

1шт.

3047107R1

"CAP, shaft"

1шт.

12

3047113R1

BRACKET

"BRACKET/FRAME, driving end"

1шт.

13

3047114R1

BUSHING

"BRUSH, bearing"

1шт.

14

3114158R1

"GUIDE, spring retaining"

1шт.

14

3047110R1

GUIDE

"GUIDE, spring retaining Used on STARTER MOTOR (Lucas 25521)

1шт.

15

700457R1

SPRING

"SPRING, pinion retaining"

1шт.

16

3114159R1

CUP

"CUP, spring retaining"

1шт.

16

3047111R1

CUP

"CUP, spring retaining Used on STARTER MOTOR (Lucas 25521)

1шт.

17

700456R91

GEAR

PINION and SLEEVE

1шт.

18

3047112R1

WASHER

buffer

1шт.

19

700455R1

SPRING

main

1шт.

20

3110450R1

CUP, shaft

1шт.

3114161R1

RING, jump

1шт.

20

3047109R1

NUT

shaft Used on STARTER MOTOR (Lucas 25521)

1шт.

702010R91

SUNDRY PARTS SET

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd. 3/8 x 1-1/8

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
