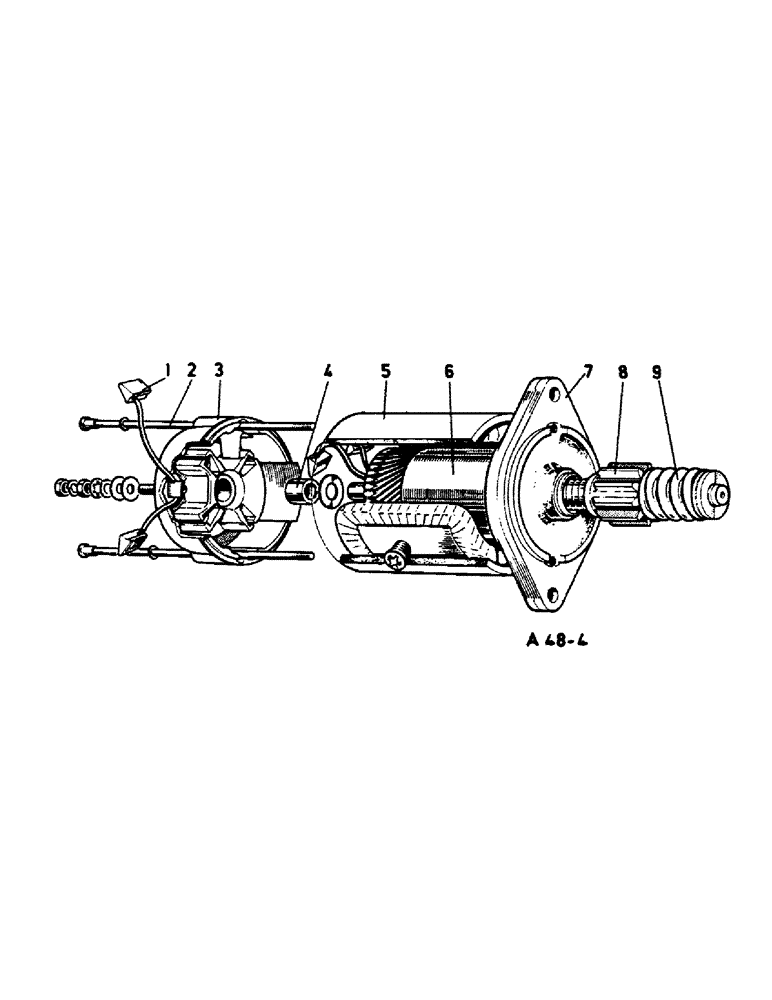

Запчасти Case IH 2350 (3-19) - STARTER MOTOR (04) - ELECTRICAL SYSTEMS

3045322R92

MOTOR HOUSING

"STARTER MOTOR, cpte. (Petrol)"

1шт.

(Lucas 25694)

1шт.

1

3114980R91

PACKAGE

"KIT, brush"

1шт.

(Consists of Brush and Connector

1шт.

Assy and 1 pair of Brushes)

1шт.

2

3114986R91

"KIT, through bolt"

1шт.

3

3114981R91

"KIT, C.E. bracket"

1шт.

4

3114982R91

"KIT, bush"

1шт.

(Consists of D.E. and C.E.

1шт.

Bushes)

1шт.

5

3114985R91

"KIT, field coils"

1шт.

"Consists of Field Coils, Yoke

1шт.

Insulation and Pole screws)"

1шт.

6

3114984R91

ARMATURE

1шт.

7

3114983R91

"KIT, D.E. bracket"

1шт.

"Consists of Bracket, Bush and

1шт.

Dowel"

1шт.

8

3106689R91

PINION and SLEEVE

1шт.

8

3114707R91

PACKAGE

"KIT, pinion retention"

1шт.

"Consists of Retaining Spring

1шт.

Guide, Cup, Washer and Buffer)"

1шт.

9

3106688R1

"SPRING, main"

1шт.

3110450R1

"CUP, shaft"

1шт.

3114161R1

RING, jump

1шт.

ref

Part No.

English

1шт.

3114987R91

KIT, sundry parts

1шт.
