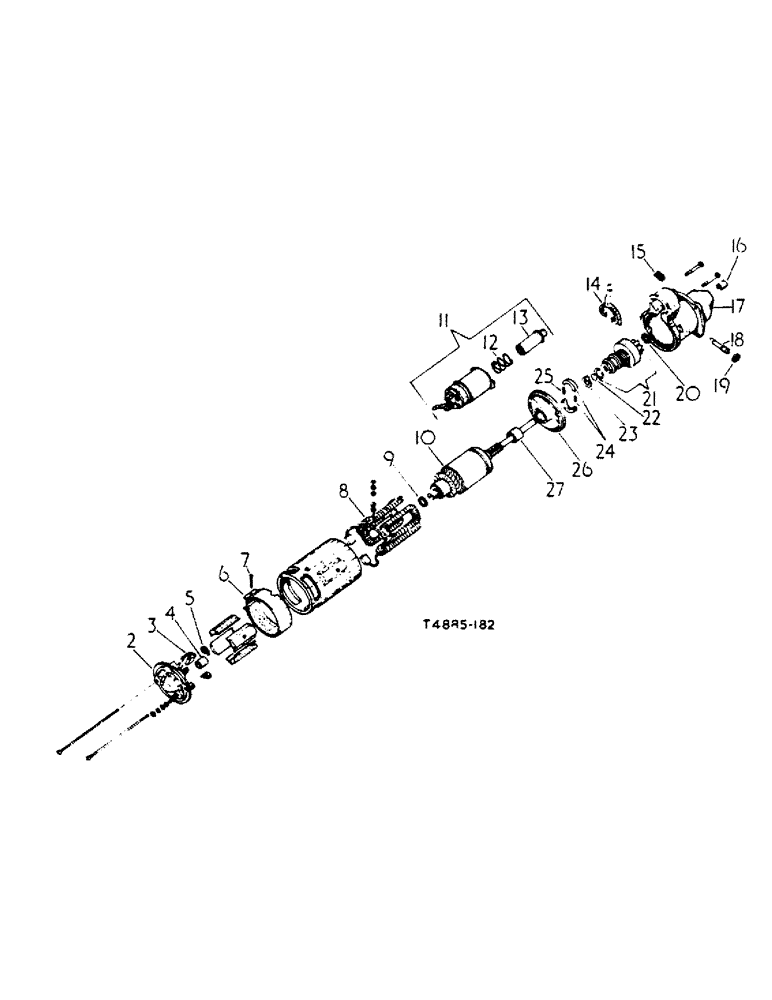

Запчасти Case IH 2350 (3-08) - STARTER MOTOR, DIESEL (04) - ELECTRICAL SYSTEMS

3046890R92

STARTER MOTOR

MOTOR, starter (Lucas 26288) (Opt w/STARTER MOTOR 3114177R91)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd. 3/8 x 1-1/8

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Comprising: 3/8"

3шт.

1

BOLT, through (supplied as a pair) (Order KIT 3114768R91)

1шт.

2

3111024R91

BRACKET

or FRAME w/BUSH 3111025R1

1шт.

3

705833R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

4

3113029R91

BUSHING

KIT, bushes

1шт.

5

3206523R91

SPRING KIT

KIT, brush tension spring

1шт.

6

3062342R91

BAND, cover w/NUT 705832R1 and SCREW 3106686R1

1шт.

7

3106686R1

SCREW

"SCREW, cover band fixing"

1шт.

705832R1

NUT

"NUT, cover band fixing screw"

1шт.

8

3062381R91

COIL

"COIL, field (set)"

1шт.

9

"WASHER, commutator thrust" (Order KIT 3114823R91)

1шт.

10

ARMATURE (Order KIT 3114823R91) or ARMATURE 3111039R91

1шт.

11

3111040R91

SOLENOID SWITCH

"SOLENOID, starter" comprising:

1шт.

12

"SPRING, plunger" (Order KIT 3117008R91)

1шт.

13

3117008R91

NUT

"KIT, solenoid end cap" "NUT, solenoid fixing" (Order KIT 3114821R91)

1шт.

14

LEVER (Order KIT 3114821R91)

1шт.

15

- NOT USED -

1шт.

16

"BUSHING, bearing" (Order KIT 3113029R91)

1шт.

17

3111030R91

BRACKET

or FRAME. w/BUSH

1шт.

18

"PIN, pivot" (Order KIT 3114821R91)

1шт.

19

"NUT, pivot bolt" (Order KIT 3114821R91)

1шт.

20

"COLLAR, thrust" (Order KIT 3114822R91)

1шт.

21

"DRIVE, roller clutch" (Order KIT 3114822R91) or DRIVE 3111029R91

1шт.

22

"RING, retaining" (Order KIT 3114822R91)

1шт.

23

WASHER, thrust, commutator end (Order KIT 3114823R91)

1шт.

24

SHOE, cpte., brake, w/two SPRING 3062376R1 (Order KIT 3113030R91)

1шт.

25

SPRING, brake shoe (Order KIT 3113030R91)

2шт.

26

3111034R91

BRACKET

or FRAME, brake w/bush 3111035R1

1шт.

27

BUSH, brake bracket (Order KIT 3113029R91)

1шт.

3114769R91

KIT

PARTS, sundry (set) (As reqd)

1шт.

3114768R91

BOLT

KIT, bolts

1шт.

3113030R91

KIT

brakes

1шт.

3114821R91

PACKAGE

KIT, solenoid link

1шт.

3114822R91

KIT

drive assy

1шт.

3114823R91

ARMATURE

KIT, armature

1шт.

3113029R91

BUSHING

KIT, bushes

1шт.

3111029R91

DRIVE

roller clutch up to year 1971

1шт.

3111039R91

ARMATURE

up to year 1971

1шт.
