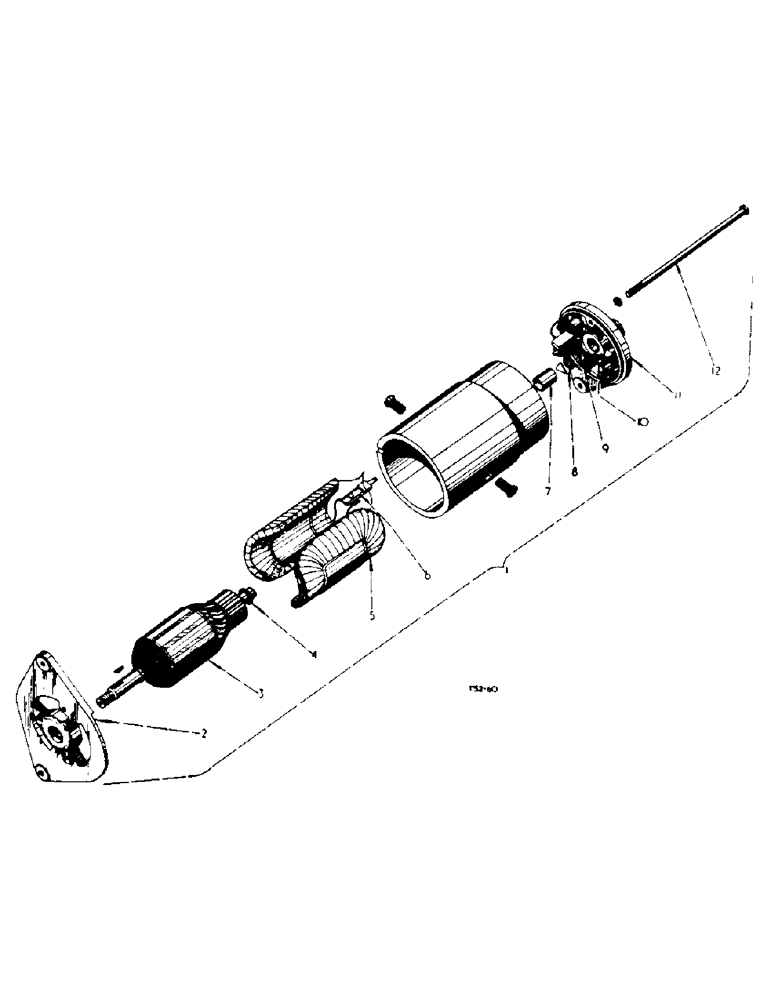

Запчасти Case IH 2350 (3-07) - GENERATOR (04) - ELECTRICAL SYSTEMS

1

3112883R91

GENERATOR

12 volt, cpte., PACKAGE comprising:

1шт.

2

3043332R91

BRACKET

drive end, cpte., circlipped

1шт.

3112882R91

PACKAGE

KIT, bearing retention comprising: CIRCLIP, PLATE, bearing, RING, pressure, RETAINER, pressure ring, WASHER, felt retaining ,WASHER, felt

1шт.

3

702003R91

ARMATURE

1шт.

4

WASHER, fibre, thrust

1шт.

5

3043338R91

COIL

S, field set

1шт.

6

3043339R91

TERMINAL CONNECTOR

TERMINAL, Lucas, set

1шт.

7

700474R1

BUSHING

BUSH, bronze

1шт.

8

3043329R91

OILER

FELT, oiler

1шт.

9

3043327R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

10

3043330R91

SPRING

KIT, brush tension spring

1шт.

11

3043328R91

BRACKET

commutator end, cpte., comprising:

1шт.

BUSH 700474R1

1шт.

KIT 3043330R91

1шт.

OILER 3043329R91

1шт.

12

702001R1

BOLT

through

2шт.

700468R1

BEARING

drive end

1шт.

3043340R91

PACKAGE

SUNDRY PARTS SETcomprising: NUT, shaft WASHER, C.F. thrust KEY, Woodruff COLLAR, D.E.

1шт.

SCREWS, brush fixing

2шт.

WASHERS, brush fixing

2шт.

WASHERS, through bolts

2шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

Q397

WASHER

11/32" x 3/4" x 16 ga.

1шт.
