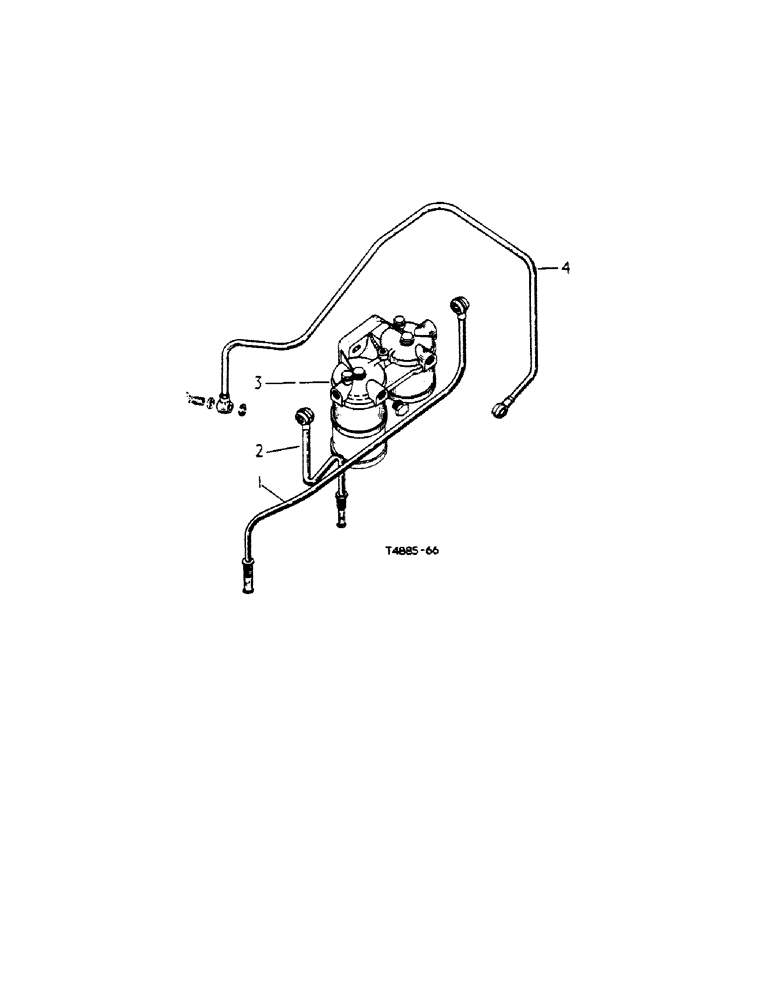

Запчасти Case IH 2350 (6-64) - FUEL FILTER AGGLOMERATOR ATTACHMENT, KEY TO UNITS (03) - FUEL SYSTEM

"ATTACHMENT, twin bowl fuel filter" agglomerator (Factory application) (A)

1шт.

3071311R91

"ATTACHMENT, twin bowl fuel filter" agglomerator (B) For machines not already fitted with twin bowl-less fuel filter

1шт.

1

3064791R92

PIPE

(excess fuel) inj. pump to filter fuel

1шт.

2

3064790R92

PIPE

filter to inj. pump fuel

1шт.

3

3069608R92

FILTER

agglomerator (A) (B) (See detail list

1шт.

179842

SPACER

BOLT, 3/8" x 1-3/8" hex. hd.

2шт.

4

3064789R92

PIPE

feed pump to filter, fuel (A) (B)

1шт.

708308R31

PIPE

injection No. 2. cpte., (B)

1шт.

3064788R1

BOLT,1/2" - 20 x 0.875", Brass

fuel filter banjo (inlet) (A) (B) (As reqd)

1шт.
