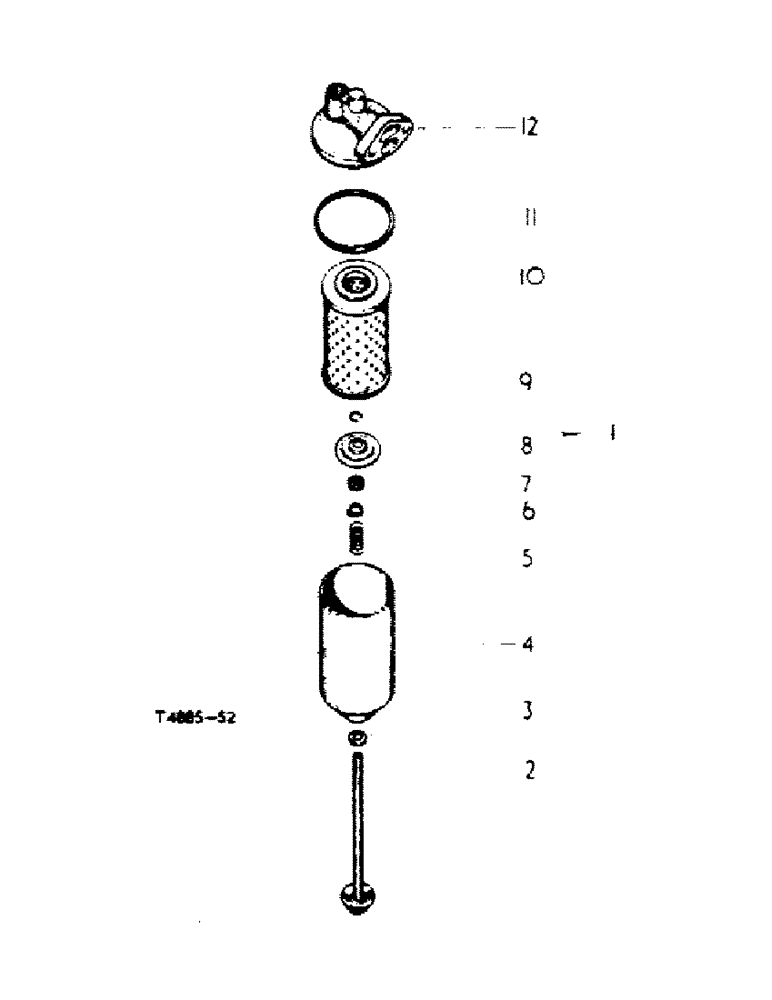

Запчасти Case IH 2350 (2-16) - LUBRICATING OIL FILTER (02) - ENGINE

1

3042420R92

FILTER

oil assy., tecalemit comprising:

1шт.

BOLT 3069976R91

1шт.

CIRCLIP 3065965R1

1шт.

CONTAINER 3043289R1

1шт.

HEAD 3069975R91

1шт.

PACKAGE 3043283R92

1шт.

PLATE 3043315R1

2шт.

PLATE 3043293R91

1шт.

RING 3042423R1

1шт.

SPRING 3043291R1

1шт.

WASHER 3042425R1

1шт.

WASHER 3043292R1

1шт.

WASHER 3042428R1

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3069976R91

BOLT

centre

1шт.

3

3042425R1

WASHER

centre bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R91

LARGE PLATE

PLATE, assy., pressure

1шт.

9

3065965R1

RING

CIRCLIP, centre bolt (used w/grooved centre bolt)

1шт.

9

3042430R1

RING, SNAP

CIRCLIP, centre bolt

1шт.

10

3043283R92

INSERT

PACKAGE, w/PLATE 3043315R1, RING 3042423R1 and RING 707859R1 optional with PACKAGE 3110452R91

1шт.

3043315R1

PLATE

adaptor

2шт.

11

3042423R1

SEALING WASHER

RING, sealing

1шт.

12

3069975R91

HEAD

assy., filter

1шт.

706592R2

GASKET

"GASKET, lubricating oil filter base"

1шт.
