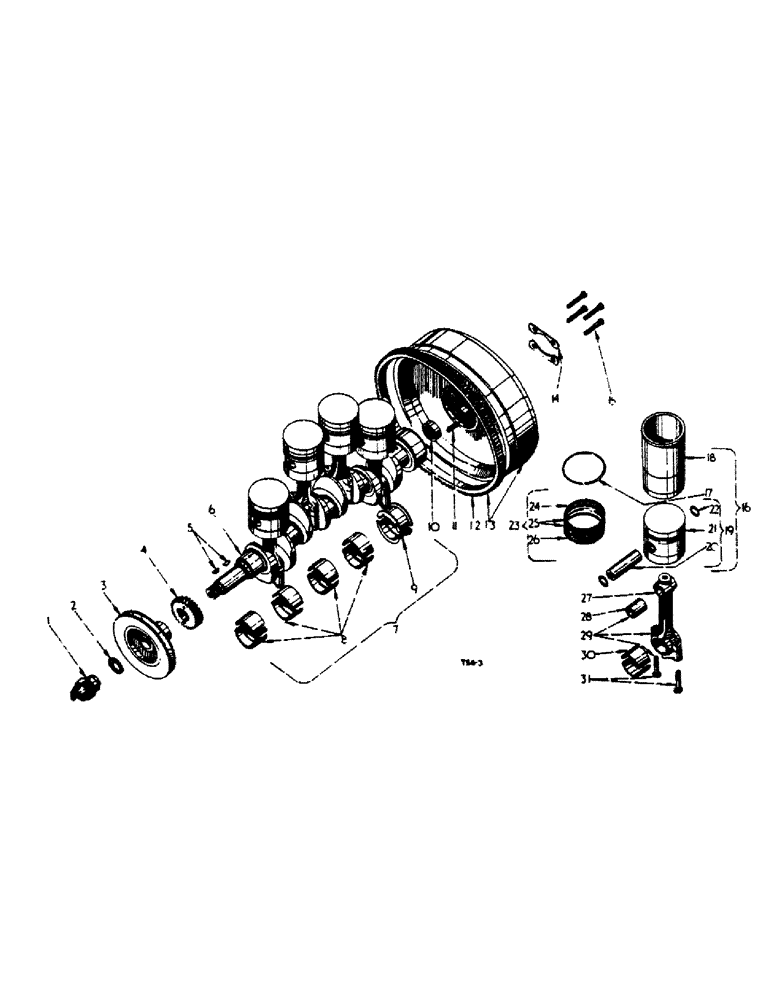

Запчасти Case IH 2350 (2-08) - CRANKSHAFT, FLYWHEEL, CONNECTING RODS AND PISTON (02) - ENGINE

1

272620

RING

starting crank

1шт.

2

NOT USED

1шт.

3

3046391R2

PULLEY

fan drive

1шт.

4

703865R1

GEAR

PINION, crankshaft (33T)

1шт.

5

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

crankshaft pinion, Woodruff, No.91

1шт.

1/4" x 3/4"

2шт.

6

CRANKSHAFT, cpte., std. w/BEARING, $ 708909R93 & two PIN 24550D, $ (Order 3110995R91)

1шт.

6

CRANKSHAFT, cpte., .015 undersize, $ w/BEARING 708909R93 & two PIN 24550D, $ (Order 3067471R91)

1шт.

6

CRANKSHAFT, cpte., .030 undersize, $ w/BEARING 708909R93 & two PIN 24550D, $ (Order 3110996R91)

1шт.

7

708912R91

CRANKSHAFT BEARING

BEARING, w/BEARING 708910R91 and four BEARINGS 3064523R11 (Std. size) main crankshaft (As required)

1шт.

7

708913R91

CRANKSHAFT BEARING

BEARING, w/BEARING 708911R91 and four BEARINGS 3064524R11 (.030 undersize) maincrankshaft (As required)

1шт.

7

708914R91

CRANKSHAFT BEARING

BEARING w/BEARING 708915R91 and four BEARINGS 3064525R11 (.015 undersize) main crankshaft (As required)

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING, crankshaft main, front and centre

1шт.

(std. size) (comprising upper and lower half)

4шт.

8

3064524R11

BEARING LINER

BEARING, crankshaft main, front and centre

1шт.

(.030 undersize) (comprising upper and lower half)

4шт.

8

3064525R11

BEARING LINER

BEARING, crankshaft main, front and centre

1шт.

(.015 undersize) (comprising upper and lower half)

4шт.

9

708910R91

BEARING ASSY

BEARING, cpte., crankshaft main, rear (std. size)

1шт.

9

708911R91

BEARING ASSY

BEARING, cpte., crankshaft main, rear (.030 undersize)

1шт.

9

708915R91

BEARING ASSY

BEARING, cpte., crankshaft main, rear (.015 undersize) (comprising two halves)

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

BEARING, clutch pilot

1шт.

10

751846R93

BALL BEARING

clutch pilot

1шт.

10

751847R93

BALL BEARING

clutch pilot

1шт.

10

751848R94

BALL BEARING

BEARING, clutch pilot

1шт.

11

24550D

PIN

flywheel dowel

2шт.

11

3066811R1

PIN, flywheel dowel (As required) (for O.S.D. crankshafts)

1шт.

12

3044171R1

GEAR

flywheel ring

1шт.

13

3044170R91

FLYWHEEL, w/GEAR 3044171R1 and two PINS 141215 cpte.

1шт.

141215

PIN,5/16" x 1/2"

dowel, long 5/16" x 1/2"

2шт.

14

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

3044201R92

SLEEVE CYLINDER

SLEEVE, w/four PISTONS 3044202R91, cyl. and pistons

1шт.

16

3044202R92

PISTON

w/SLEEVE, cpte., comprising:

4шт.

PISTON 3044203R93

1шт.

RING 704100R1

1шт.

SLEEVE 704092R1

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cyl. sleeve packing

4шт.

18

704092R1

LINER, ENGINE CYLIND

SLEEVE, cyl.

4шт.

19

3044203R93

PISTON

assy., pin and rings comprising:

4шт.

PIN 704094R1

1шт.

PISTON 3044207R3

1шт.

RETAINER 704095R1

2шт.

$ PIN

1шт.

$ RING

2шт.

$ RING

1шт.

20

704094R1

LARGE PIN

PIN, piston (Std.)

4шт.

20

706411R1

PIN

piston (.005 oversize) (As required)

1шт.

21

3044207R3

PISTON

4шт.

22

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

23

3114777R91

RING, SET

RING, piston, set comprising:

4шт.

$ RING

1шт.

$ RING

2шт.

$ RING

1шт.

24

RING, piston compression - top $

1шт.

25

RING, piston compression $

2шт.

26

RING, oil control piston $

4шт.

27

3061216R91

CONNECTING ROD

ROD, cpte., connecting (set of four) comprising:

1шт.

ROD 3061214R91

4шт.

28

711045R1

BUSHING

BUSH, piston pin Opt.

4шт.

28

3043611R1

BUSHING

BUSH, piston pin Opt.

4шт.

29

3061214R91

PITMAN ASSY.

ROD, assy., connecting comprising:

4шт.

BOLT 3043216R1

2шт.

BUSH 711045R1

1шт.

CAP $

1шт.

ROD $

1шт.

30

3070536R11

BEARING

cpte., connecting rod

1шт.

(Std. size) (two halves)

4шт.

30

3070537R11

BEARING

cpte, connecting rod (.030 undersize) (two halves) (As required)

1шт.

30

3070538R11

JOURNAL

BEARING, cpte., connecting rod (.015 undersize) (two halves) (As required)

1шт.

31

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

3070546R91

BEARING LINER

BEARING, cpte., connecting rod, (Std. size) comprising four BEARING 3070536R11 (As required)

1шт.

3070547R91

CRANKSHAFT BEARING

BEARING, cpte., connecting rod (.030 undersize) comprising four BEARING 3070537R11 (As required)

1шт.

3070539R91

BEARING LINER

BEARING, cpte., connecting rod (.015 undersize) comprising four BEARING 3070538R11 (As required)

1шт.

3067471R91

PACKAGE, service, undersize crankshaft (As required) comprising:

1шт.

$ CRANKSHAFT

1шт.

SET 708914R91

1шт.

SET 3070539R91

1шт.

3110995R91

CRANKSHAFT

PACKAGE, service, crankshaft std., (As reqd) comprising:

1шт.

$ CRANKSHAFT

1шт.

SET 708912R91

1шт.

SET 3070546R91

1шт.

3110996R91

PACKAGE

service, crankshaft .030 undersize (As required) comprising:

1шт.

$ CRANKSHAFT

1шт.

SET 708913R91

1шт.

SET 3070547R91

1шт.
