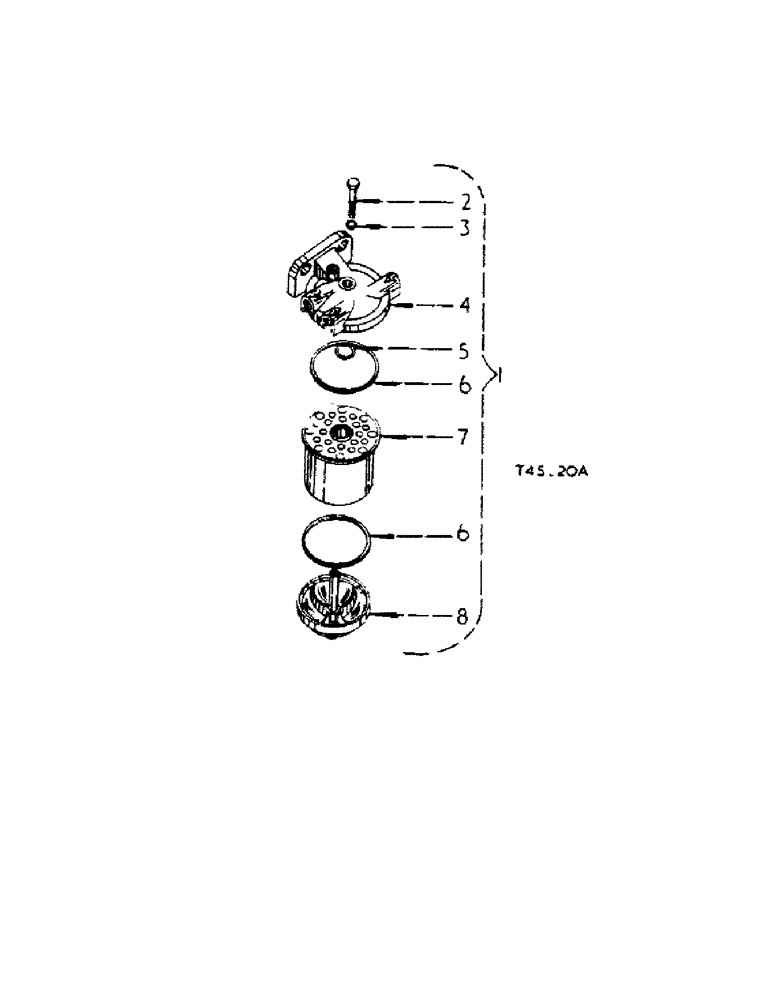

Запчасти Case IH 2350 (1-13) - "FUEL, FILTER ASSEMBLY" (02) - ENGINE

1

3043645R91

FILTER CARTRIDGE

FILTER, fuel, cpte., Order FILTER 3117033R91 w/PLUG 3117735R1 & WASHER 3070777R1, Includes: Ref. 1 - 8

1шт.

2

3070771R2

BOLT

centre

1шт.

3

3044504R1

WASHER

centre bolt

1шт.

4

3111726R1

CYLINDER HEAD

HEAD, filter, Order filter 3117033R91 w/ Plug 3117735R1 & Washer 3070777R1

1шт.

5

3044505R1

SEAL

RING, element seal

1шт.

6

3105001R1

SEAL

head and base sealing

2шт.

7

3044506R93

FILTER, FUEL

ELEMENT, assy

1шт.

8

3048796R91

BASE

and Stud, filter, assy

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
