Запчасти Case IH 2350 (6-78) - FRONT FENDERS ATTACHMENT (09) - CHASSIS

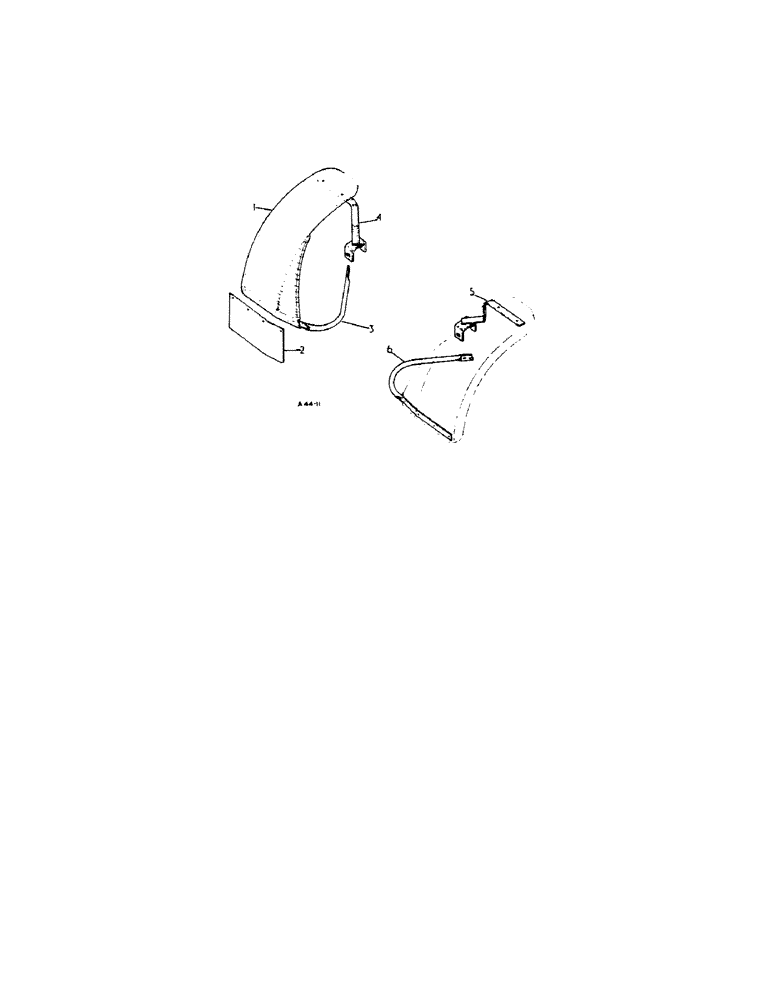

Схема запчастей Case IH 2350 - (6-78) - FRONT FENDERS ATTACHMENT (09) - CHASSIS
4
5
2
6
3
1

Артикул

Название

Примечание

Количество

1

709215R11

FENDER, front cpte., L.H. (Illustrated)

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

6шт.

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

mach. sltd. truss. hd. 5/16" x 3/4"

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

709482R1

FLAP

mud front fender L.H.

1шт.

3

709209R1

SUPPORT

STAY, front fender L.H.

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

hex. hd. 1/2" x 1-1/8"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

3072507R11

BRACKET

front fender L.H.

1шт.

5

3072508R11

BRACKET

front fender R.H.

1шт.

6

709210R1

STAY, front fender R.H.

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

hex. hd. 1/2" x 1-1/8"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3072504R91

EXTENSION

front axle, cpte., L.H. w/two BUSH, 40090D and LUBRICATOR 109461.

1шт.

3072505R91

EXTENSION

"EXTENSION, front axle, cpte., R.H. w/two" BUSH 40090D and LUBRICATOR 109461

1шт.

Выбрано товаров: 17
