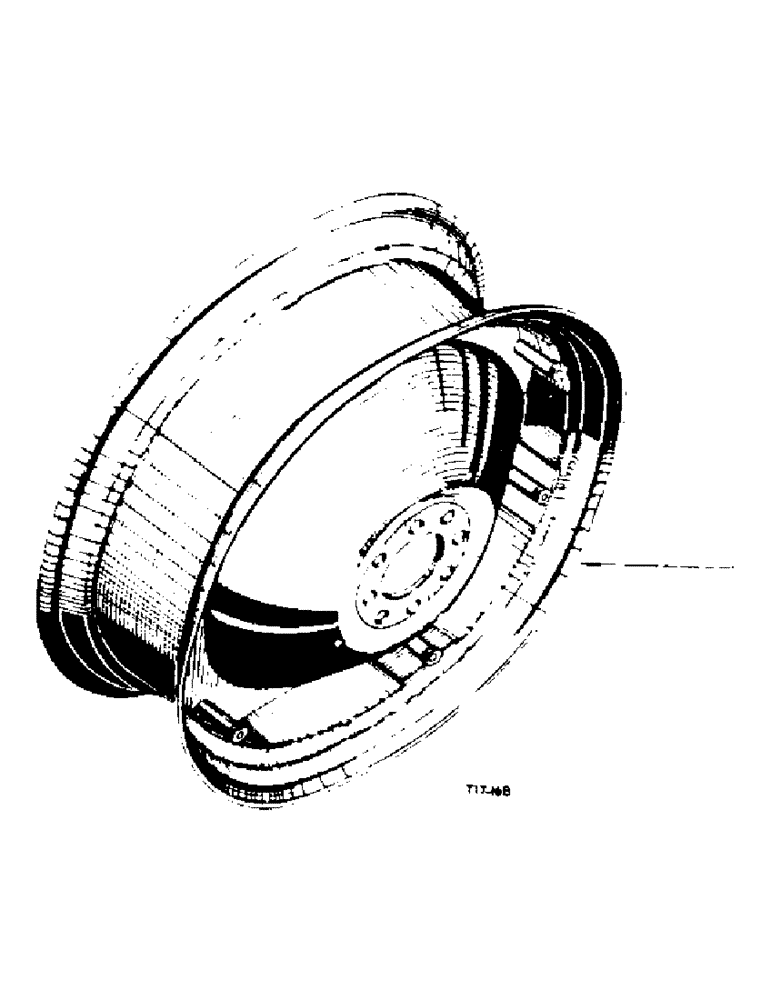

Запчасти Case IH 2350 (6-67) - REAR WHEEL, TYRE AND TUBE ATTACHMENT, KEY TO UNITS (09) - CHASSIS

3069484R91

"ATTACHMENT, rear wheel pnue. tyre and rim" 9 x 28 (A) (Factory application)

1шт.

3069485R91

"ATTACHMENT, rear wheel pnue. tyre and rim" 12x28 (B) (Factory application)

1шт.

3069489R91

"ATTACHMENT, rear wheel pnue. tyre and rim" 13x28 (C) (Factory application)

1шт.

1

3048867R91

WHEEL ASSY.

"WHEEL, cpte., rear, rim and disc" W9x28 (A2) Opt.

1шт.

1

3042291R92

RIM

WHEEL, cpte., rear, rim and disc W9x28 (A2) Opt. comprising only

1шт.

BOLT 406951R1

6шт.

DISC 3042290R1

1шт.

NUT 121358

6шт.

RIM 703928R92

1шт.

WASHER 406952R1

6шт.

1

3068209R92

RIM

WHEEL, cpte., rear, rim and disc W12x28 (B2) comprising:

1шт.

BOLT 406951R1

6шт.

DISC 3042290R1

1шт.

NUT 121358

6шт.

RIM 3070083R92

1шт.

WASHER 406952R1

6шт.

1

3068210R92

WHEEL ASSY

WHEEL, cpte., rear, rim and disc W13x28 (C2) comprising:

1шт.

BOLT 406951R1

6шт.

DISC 3042290R1

1шт.

NUT 121358

6шт.

RIM 3070084R92

1шт.

WASHER 406952R1

6шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

(nib bolt) rear wheel rim

12шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

5/8" UNF (sq.nk)

12шт.

3042290R1

DISC

rear wheel

2шт.

703930R2

NUT

rear wheel nib bolt

12шт.

121358

YOKE

hex. 5/8" UNF (for sq.nk. bolt)

12шт.

703928R92

RIM

cpte., rear wheel (A2)

1шт.

3070083R91

WHEEL

RIM, cpte., rear wheel (B2)

1шт.

3070084R91

WHEEL

RIM, cpte., rear wheel (C2)

1шт.

406952R1

WASHER

rear wheel rim bolt

12шт.

ref

Part No.

English

1шт.

3069491R92

ATTACHMENT, rear wheel

10-32шт.

3049758R92

WHEEL ASSY

WHEEL, cpte. rear rim and disc comprising:

10-32шт.

BOLT 406951R1

8шт.

DISC 3073907R1

1шт.

NUT 121358

8шт.

RIM 3073906R91

1шт.

WASHER 406952R1

1шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

8шт.

3073907R1

DISC

rear wheel

1шт.

121358R1

NUT, hex 5/8 UNF

8шт.

3073906R91

RIM

assy, w/LUGS, rear wheel

8шт.

406952R1

WASHER

rear wheel rim mounting

1шт.

bolt

8шт.
