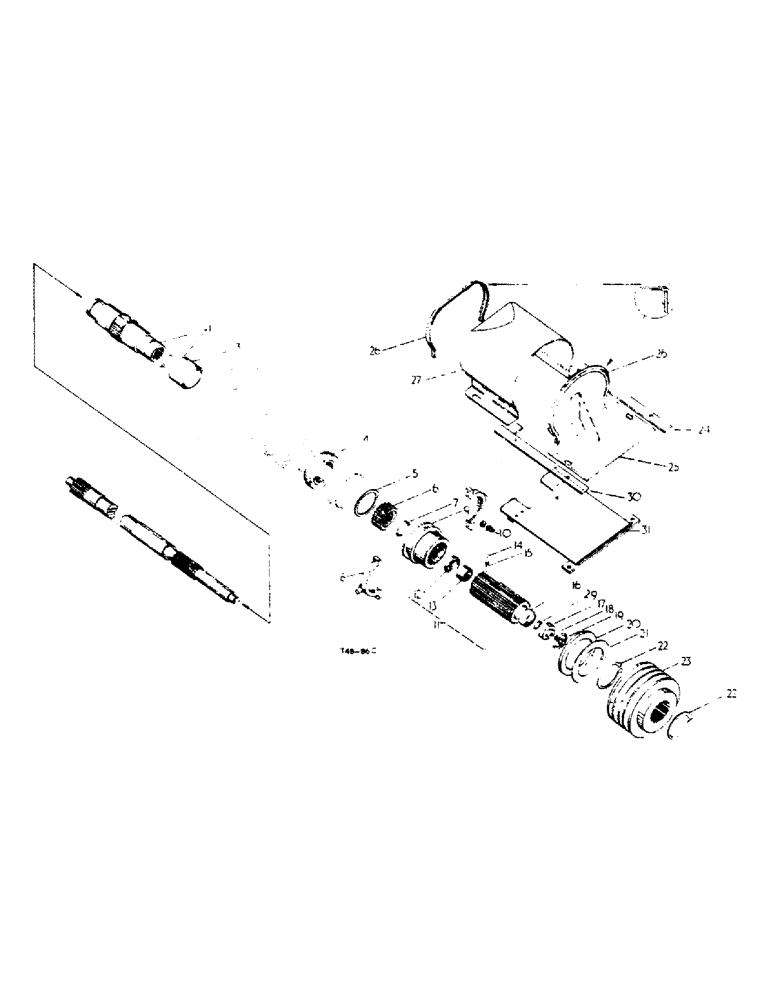

Запчасти Case IH 2350 (6-59) - MOWER DRIVE GEAR AND SHAFTS - TWO SPEED, MOWER DRIVE ATTACHMENT (09) - CHASSIS

1

3048768R91

"COUNTERSHAFT, speed P.T.O."

1шт.

444 UP TO DIESEL EXPORT B5035 UK B1704 USA/CANADA B2442 4/W/DRIVE B 515 PET CANADA B1014 2350 UP TO DIESEL CANADA B 523 UK B 645 EXPORT B 502 PET CANADA B 519

1шт.

1

3117766R91

SHAFT

"COUNTERSHAFT, two speed P.T.O. cpte.,"

1шт.

444 UP DIESEL EXPORT B5036 UK B1705 USA/CANADA B2443 4/W/DRIVE B 516 PET CANADA B1015 2350 UP DIESEL CANADA B 524 UK B 646 EXPORT B 503 PET CANADA B 520

1шт.

2

151244R1

O-RING

O RING

1шт.

3

751159R1

BUSHING

"BUSH, SN, 148 x 1-5/8" comp."

1шт.

4

3048093R21

CARRIER

"CARRIER, cpte., P.T.O. gear seal w/SEAL" 3048094R91

1шт.

3048094R91

SEAL

P.T.O. gear oil Opt.

1шт.

3070047R91

SEAL

P.T.O. gear oil Opt.

1шт.

3070048R91

SEAL

P.T.O. gear oil Opt.

1шт.

5

3064407R1

SNAP RING

CIRCLIP, sliding coupling, Anderton Opt.

1шт.

703696R1

RING

CIRCLIP, sliding coupling Opt.

1шт.

5

3074379R1

SNAP RING

CIRCLIP, Anderton type 1400 60mm Opt.

1шт.

6

3064405R1

GEAR

pulley driving

1шт.

7

3064406R1

RETAINER

CIRCLIP, pulley driving gear retaining

1шт.

8

3065188R91

COLLAR

w/LUBRICATOR 3065320R91 and SHIM 3065319R1 gear shifter assy.

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

3064418R1

COUPLING, BREAK AWAY

COUPLING, sliding

1шт.

10

3065320R91

LUBRICATOR, 1/8" x 90degree angle

1шт.

11

3064408R21

GEAR

w/BEARING 3064410R91 and OIL SEAL 3064409R91 cpte., sliding quill

1шт.

12

3064409R91

SEAL

sliding quill gear Opt.

1шт.

12

3064502R91

SEAL

sliding quill gear Opt.

1шт.

13

3064410R91

NEEDLE BEARING

BEARING, needle Opt.

1шт.

13

3064503R91

NEEDLE BEARING

BEARING, needle Opt.

1шт.

13

3064504R91

BEARING

needle Opt.

1шт.

14

3072885R1

BALL,1/4" Dia

steel, .250 dia.

3шт.

15

3064416R1

BRACKET

SPRING, compression

3шт.

16

3064411R91

BEARING

ball, sliding quill gear Opt.

1шт.

16

3064462R91

BALL BEARING

BEARING, ball, sliding quill gear Opt.

1шт.

17

3070970R1

SPACER

distance piece

1шт.

18

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 1/8" x 90degree angle

1шт.

19

3064415R1

RETAINER

CIRCLIP, sliding quill gear, internal

1шт.

20

3064423R1

RETAINER

rubber sealing

1шт.

21

3064422R1

WASHER

SEALING, rubber

1шт.

22

3064407R1

SNAP RING

CIRCLIP, pulley retaining Opt.

2шт.

703696R1

RING

CIRCLIP, pulley retaining Opt.

2шт.

22

3074379R1

SNAP RING

CIRCLIP, Anderton type 1400 60mm

2шт.

23

3064421R1

PULLEY

mower drive

1шт.

24

3064452R1

STIFFENER, mower drive pulley cover

1шт.

25

3064450R11

COVER

cpte., front, mower drive pulley

1шт.

26

3064453R1

STRIP

cover sealing

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

27

3064448R21

SHIELD

CAGE, cpte., mower drive pulley

1шт.

28

3064404R3

SHAFT

P.T.O. front

1шт.

29

3064412R1

RETAINER

CIRCLIP, outer P.T.O. shaft front

1шт.

30

3064452R11

REINFORCEMENT

STIFFENER, cpte., pulley cover

1шт.

31

3068913R11

COVER

cpte., clutch hand hole

1шт.

3065319R1

SHIM (As required)

1шт.

ref

Part No.

English ATTACHMENT, cold starting comprising: (Factory application) COMPONENTS STARTER MOTOR (See detail list)

1шт.

ref

Part No.

English

1шт.

3062302R91

BREAKER

circuit

1шт.

426915

RETAINER

NUT, hex. mach. screw No.8. x 36

2шт.

436714

SCREW, pan hd sltd. mach No.8. x 1/2"

1шт.

36 TPI

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

3066551R1

BOLT

battery hold down

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3066558R1

ELEMENT

ballast resistor (.040 ohms)

1шт.

3111982R91

HARNESS

main cable

1шт.

703899R1

SPRING

WIRE, connecting No.2. to No.3. glow plug

1шт.

3065071R2

FASTENER

WIRE, connecting No.1. glow, Serial Range: plug-earth

1шт.

703898R1

ELECTRICAL WIRE

WIRE, connecting No.1. to No.2. and No.3. to No.4. glow plug

1шт.

3109131R91

SWITCH

solenoid starter

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

No. 10-24 x 1/2 RD HD

1шт.

3112181R1

NUT

1шт.

705329R1

WASHER

2шт.
