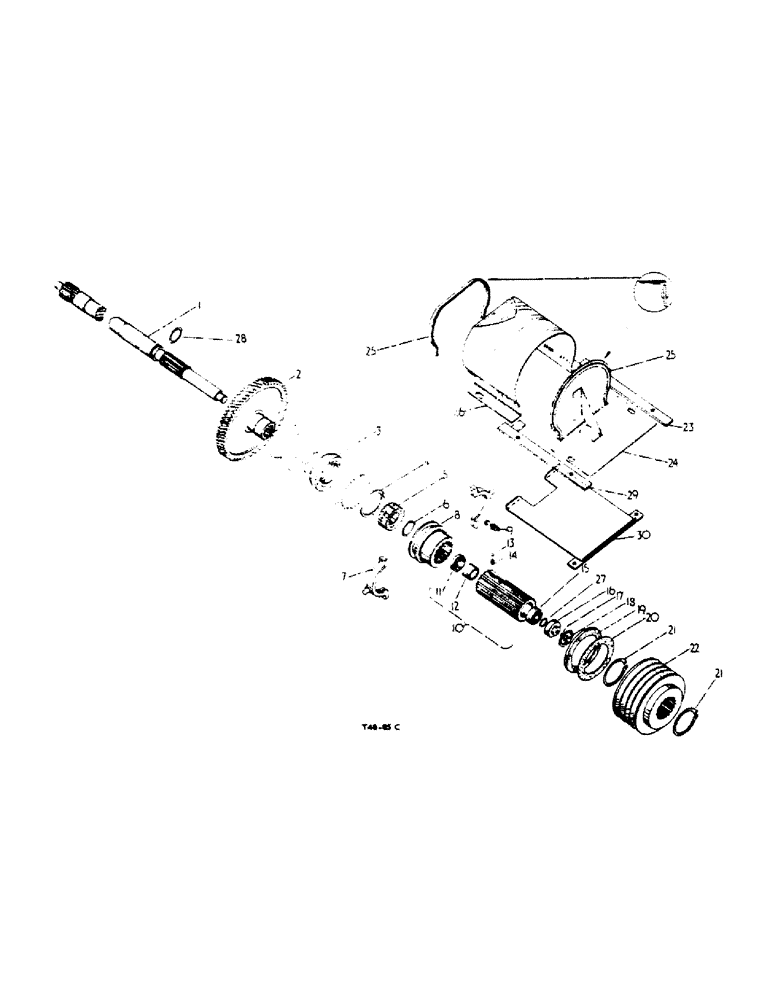

Запчасти Case IH 2350 (6-58) - MOWER DRIVE GEAR AND SHAFTS - 783 R.P.M. SINGLE SPEED, MOWER DRIVE ATTACHMENTS (09) - CHASSIS

1

3064404R3

SHAFT

"SHAFTS, P.T.O. front"

1шт.

2

3064349R3

"GEAR, P.T.O. driven (51 teeth) (783 r.p.m.)"

1шт.

3

3048093R21

CARRIER

"CARRIER, cpte., P.T.O. gear seal w/SEAL" 3048094R91

1шт.

3048094R91

SEAL

"SEAL, P.T.O. gear oil Opt."

1шт.

3070047R91

SEAL

"SEAL, P.T.O. gear oil Opt."

1шт.

3070048R91

SEAL

"SEAL, P.T.O. gear oil Opt."

1шт.

4

3064407R1

SNAP RING

"CIRCLIP, retaining, sliding coupling Opt."

1шт.

703696R1

RING

"CIRCLIP, retaining, sliding coupling Opt."

1шт.

4

3074379R1

SNAP RING

"CIRCLIP, Anderton type 1400 60mm Opt."

1шт.

5

3064405R1

GEAR

"GEAR, pulley driving"

1шт.

6

3064406R1

RETAINER

"CIRCLIP, pulley driving gear retaining"

1шт.

7

3065188R91

COLLAR

w/LUBRICATOR 3065320R91 and SHIM 3065319R1 gear shifter assy.

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

3064418R1

COUPLING, BREAK AWAY

COUPLING, sliding

1шт.

9

3065320R91

LUBRICATOR, 1/8" x 90degree angle

1шт.

10

3064408R11

GEAR

w/BEARING 3064410R91 and OIL SEAL 3064409R91 cpte., sliding quill

1шт.

11

3064409R91

SEAL

sliding quill gear Opt.

1шт.

11

3064502R91

SEAL

sliding quill gear Opt.

1шт.

12

3064410R91

NEEDLE BEARING

BEARING, needle Opt.

1шт.

12

3064503R91

NEEDLE BEARING

BEARING, needle Opt.

1шт.

12

3064504R91

BEARING

needle Opt.

1шт.

13

3072885R1

BALL,1/4" Dia

steel, .250" dia.

3шт.

14

3064416R1

BRACKET

SPRING, compression

1шт.

15

3064411R91

BEARING

ball, sliding quill gear Opt.

1шт.

15

3064462R91

BALL BEARING

BEARING, ball, sliding quill gear Opt.

1шт.

16

3070970R1

SPACER

distance piece

1шт.

17

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication 1/8" x 90degree angle

1шт.

18

3064415R1

RETAINER

CIRCLIP, sliding quill gear internal

1шт.

19

3064423R1

RETAINER

rubber sealing

1шт.

20

3064422R1

WASHER

SEALING, rubber

1шт.

21

3064407R1

SNAP RING

CIRCLIP, pulley retaining Opt.

2шт.

703696R1

RING

CIRCLIP, pulley retaining Opt.

2шт.

3074379R1

SNAP RING

CIRCLIP, pulley retaining Opt.

2шт.

22

3064421R1

PULLEY

mower drive

1шт.

23

3064452R1

STIFFENER, mower drive pulley cover

1шт.

24

3064450R11

COVER

cpte., front mower drive pulley cage

1шт.

25

3064453R1

STRIP

cover sealing

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

26

3064448R21

SHIELD

CAGE, cpte., mower drive pulley

1шт.

27

3064412R1

RETAINER

"CIRCLIP, outer P.T.O., shaft front"

1шт.

28

151244R1

O-RING

O RING

1шт.

29

3064452R11

REINFORCEMENT

"STIFFENER, pulley cover cpte.,"

1шт.

30

3068913R11

COVER

"COVER, cpte., clutch hand hole"

1шт.

3065319R1

"SHIM, (As required)"

1шт.
