(6-10[A]) - SAFETY SHIELD, BELT PULLEY AND SHIELD ATTACHMENT

Запчасти Case IH 2350 (6-10[A]) - SAFETY SHIELD, BELT PULLEY AND SHIELD ATTACHMENT (09) - CHASSIS

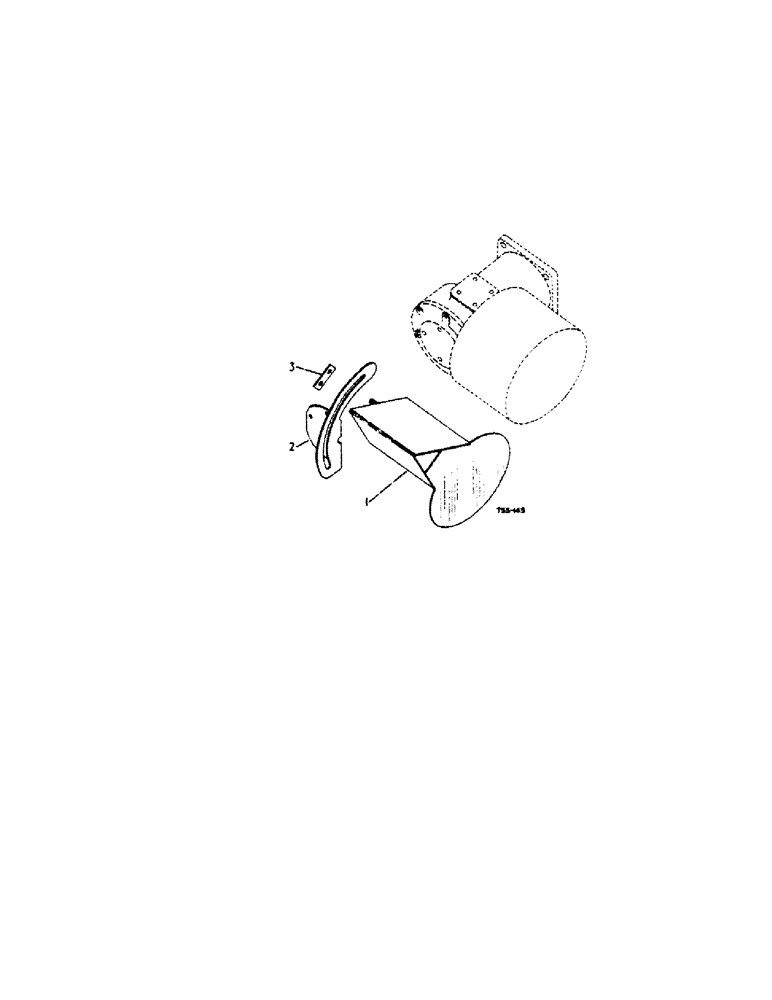

Схема запчастей Case IH 2350 - (6-10[A]) - SAFETY SHIELD, BELT PULLEY AND SHIELD ATTACHMENT (09) - CHASSIS
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3067919R91

GUARD ASSY.

SHIELD, cpte., reverse belt pulley safety

1шт.

271500

SOCKET

hex. lock, 7/16"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

3067917R11

BRACKET

cpte., reverse belt pulley safety shield.

1шт.

3

3049001R1

PLATE

backing

1шт.

TRANSFER, belt pulley safety shield Used w/BELT PULLEY Att: 3067898R91, 3067900R91, 3067902R91

1шт.
