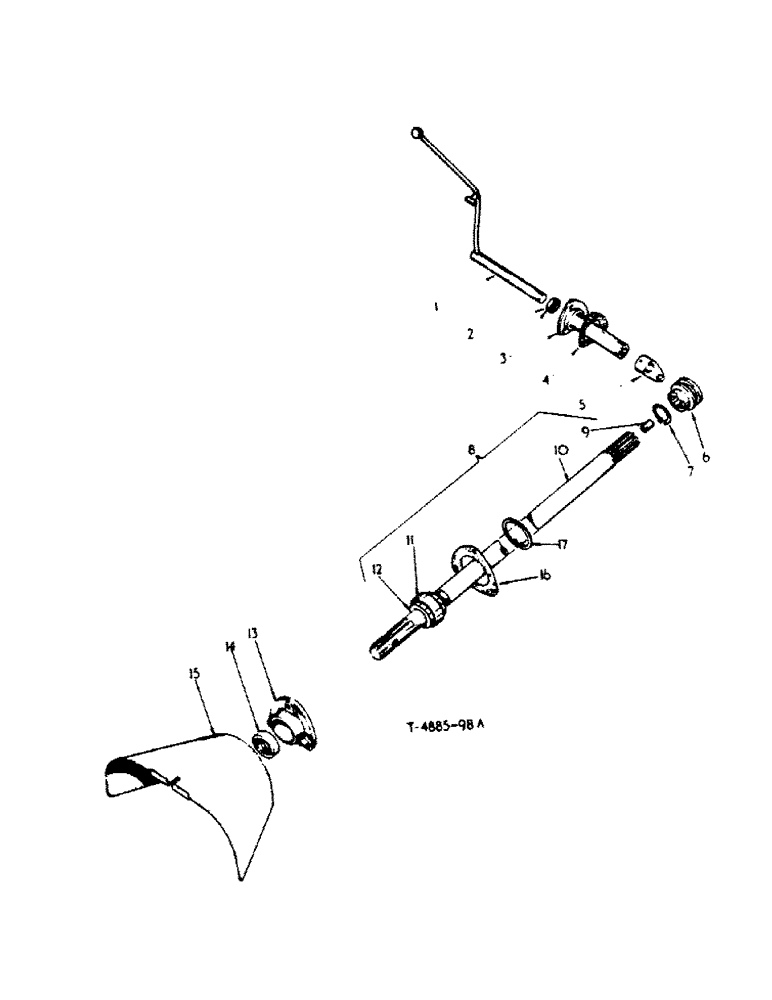

Запчасти Case IH 2350 (6-09) - STANDARD REAR P.T.O. ATTACHMENT (09) - CHASSIS

3044913R92

"ATTACHMENT, standard rear P.T.O. (As required) For use with Standard Transmission

1шт.

1

3119812R91

LEVER

"LEVER, shifter, P.T.O. rear cpte.,"

1шт.

21000R1

PIN,3/16" x 1 1/4", Coiled

444/B010060 EXPORT UP, /B002389 UK UP, /B004112 USA & CANADA UP, 444-4WHEEL DRIVE/B000517 UP, 2350/B000504 EXPORT UP, 2350/B000708 UK UP, 2350/B000573 CANADA UP 3/16" x 1 1/4", Coiled

1шт.

1

3064230R91

LEVER

"LEVER, shifter, P.T.O. rear cpte.,"

1шт.

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

groove, 3/16 x 1-1/4 - ORDER LEVER 3119812R91 PIN 21000R1 & SHIFTER 3063246R21

1шт.

2

3066616R91

SEAL

OIL SEAL, P.T.O. shifter bracket Opt.

1шт.

2

704393R91

OIL SEAL

OIL SEAL, P.T.O. shifter bracket Opt.

1шт.

2

704394R91

SEAL

OIL SEAL, P.T.O. shifter bracket Opt.

1шт.

3

704392R21

SUPPORT

BRACKET, cpte., P.T.O. shifter

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

711312R1

GASKET

P.T.O. shifter bracket

1шт.

5

3063246R21

LEVER

SHIFTER, cpte., P.T.O.

1шт.

5

- on order for R11 order R21 w/PIN 21000R1

1шт.

6

751113R2

CLUTCH

sliding, P.T.O. shaft rear

1шт.

7

751117R1

CLIP

CIRCLIP, P.T.O. shaft rear, clutch stop

1шт.

7

3117077R1

CLIP

CIRCLIP, P.T.O. shaft rear, clutch stop (Optional)

1шт.

8

3073111R91

SHAFT

cpte., P.T.O. comprising:

1шт.

BEARING

1шт.

BUSH 48594DA

1шт.

COLLAR

2шт.

SHAFT

1шт.

9

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, rear, P.T.O. shaft

1шт.

10

SHAFT, P.T.O. (Order 3073111R91).

1шт.

11

BEARING, P.T.O. shaft (Order, $ 3073114R91)

1шт.

12

COLLAR, P.T.O. shaft (Order, $ 3073114R91)

1шт.

13

704387R12

RETAINER

w/OIL SEAL 708580R91 cpte., oil seal

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x 16 ga

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

14

708580R91

SEAL ASSY.

OIL SEAL P.T.O. Opt.

1шт.

14

3065217R91

OIL SEAL

OIL SEAL P.T.O. Opt.

1шт.

14

3068756R91

SEAL

OIL SEAL P.T.O. Opt.

1шт.

15

704395R96

SHIELD

cpte., P.T.O. safety

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

6шт.

3072253R1

STUD

P.T.O. safety shield

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

703971R1

GASKET

P.T.O. shaft

1шт.

17

704385R1

CLIP

CIRCLIP, intemal 72mm

1шт.

3073114R91

SERVICE KIT

PACKAGE, P.T.O. shaft bearing service comprising:

1шт.

BEARING $

1шт.

COLLAR $

1шт.

1080213R1

PRODUCT GRAPHIC

PROGRAPH, P.T.O.

1шт.

ref

Part No.

English Remarks

1шт.

3040151R91

CAP

ATTACHMENT, cap, safety P.T.O. (Export) (Factory application)

1шт.

3041319R11

CAP

cpte., safety P.T.O. Opt.

1шт.

751471R91

CAP

cpte., safety P.T.O. Opt.

1шт.

751472R1

WASHER

special

3шт.
