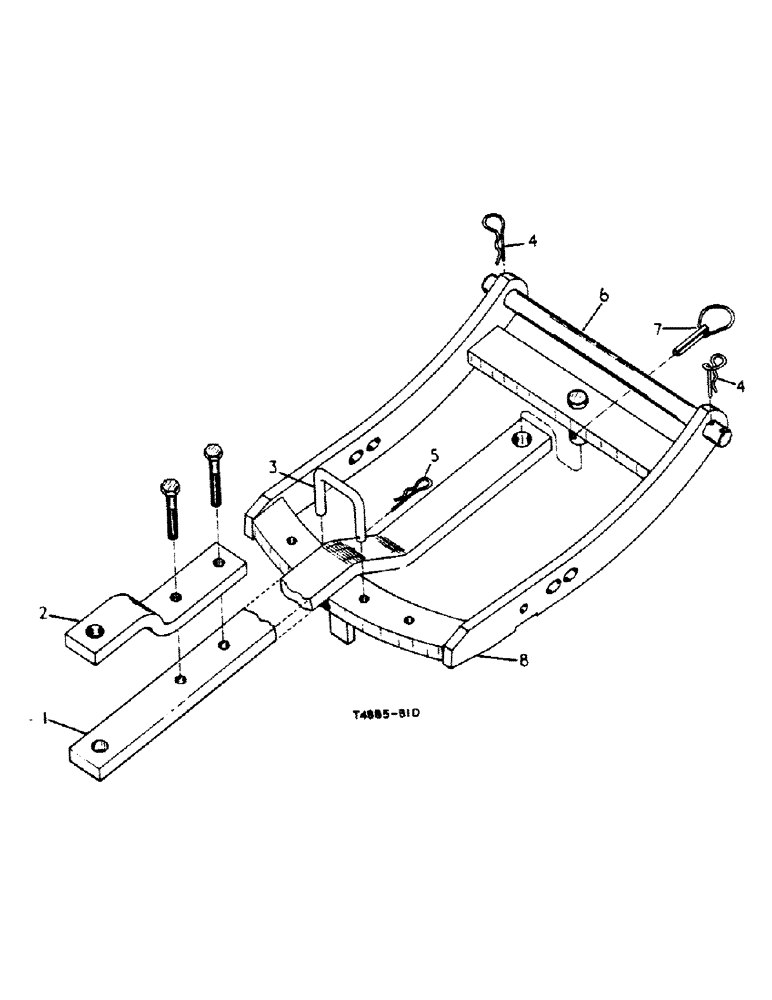

Запчасти Case IH 2350 (6-04) - DRAWBAR ATTACHMENT, KEY TO UNITS. (09) - CHASSIS

3070836R93

"ATTACHMENT, drawbar (A) (As reqd)" (Domestic and Canada) For use with Vary Touch Hyd. Lift Unit and Three point Linkage on tractors fitted with 540 and 783 rmp PTO or 573 or 745 rmp

1шт.

3070843R93

"ATTACHMENT, drawbar (B) (As reqd)" Drawbar for use with Vary Touch Hyd. Lift Unit and Three Point Linkage on tractors fitted with 1,000 or 1050 rmp PTO

1шт.

1

3111194R1

BAR

"DRAWBAR, swinging (A) (Illustrated)"

1шт.

1

3111195R1

BAR

"DRAWBAR, swinging B)"

1шт.

2

3064333R1

DRAWBAR CLAMP

"CLEVIS, drawbar (Illustrated)"

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex. hd. 5/8" x 2-3/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

3

3071789R2

PIN

stop, swinging drawbar

1шт.

4

3067210R1

CLIP

spring

2шт.

5

720631R1

LINCH PIN

PIN, cotter

1шт.

6

704058R1

PIN

drawbar frame

1шт.

7

704212R91

COTTER PIN

PIN, implement cotter, cpte.

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, implement cotter

1шт.

8

3071323R91

FRAME

drawbar, cpte.

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex. hd. 3/4" x 2-1/4"

2шт.

220081

NUT

hex. 3/4"

2шт.

3073934R11

RETAINER

cpte., drawbar As required

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

As required Hex, 5/8"-11 x 1 3/4", G5

1шт.
