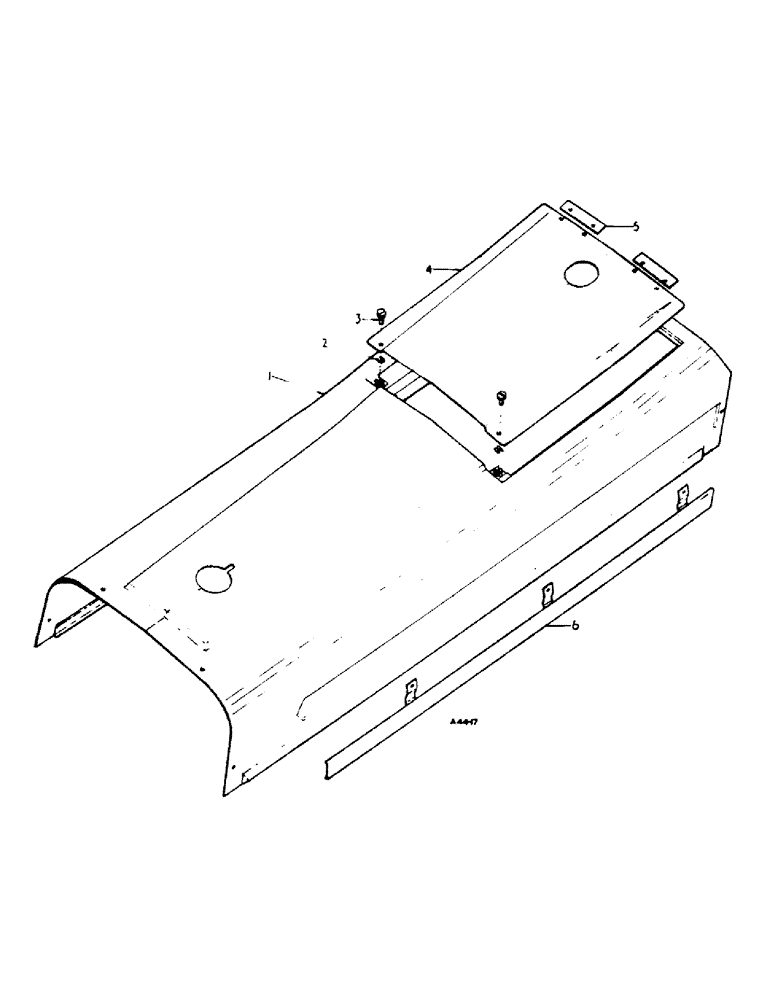

Запчасти Case IH 2350 (4-03) - HOOD AND REAR COVER (09) - CHASSIS

1

3114083R2

SHEET

assy., hood (Upswept exhaust)

1шт.

1

3112162R2

SHEET, assy., hood (Downswept exhaust)

1шт.

3118624R1

SCREW

5/16" x 5/8" hex cap

6шт.

2

376787R1

WASHER

2шт.

3

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.

4

3112170R11

COVER

assy., hood rear, comprising:

1шт.

NUT 110633

4шт.

SCREW 147791

4шт.

SCREW 389872R1

2шт.

STRIP 3112171R1

2шт.

WASHER 376787R1

2шт.

WASHER 106497

4шт.

5

3112171R1

STRIP

rear hood cover retainer

2шт.

110633

NUT,#10-24

4шт.

147791

SCREW,Cross Rec Fil Hd, #10 - 24 x 5/8"

10-24 x 5/8" fill hd mach

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

6

3112164R1

PANEL

assy lower hood L.H. (Illust)

1шт.

3112165R1

PANEL

assy lower hood R.H.

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.

157728

SCREW

1/4-20 x 5/8 cross recess truss

1шт.

hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120391

WASHER,#10

.219 x 500 x .036

6шт.

3119888R1

SCREW

No. 10-24 x 3/8

1шт.

hex washer hd m/c

6шт.
